Description
xAble to handle a working load limit of 6,600 Lbs. / 3,000 Kgs., Kinedyne's Lever Style Chain Binder for Chain Sizes 5/16 Inch to 3/8 Inch provides a strong tie down for your cargo. A strong lever and durable hooks work together to bring you this simple yet effective device.

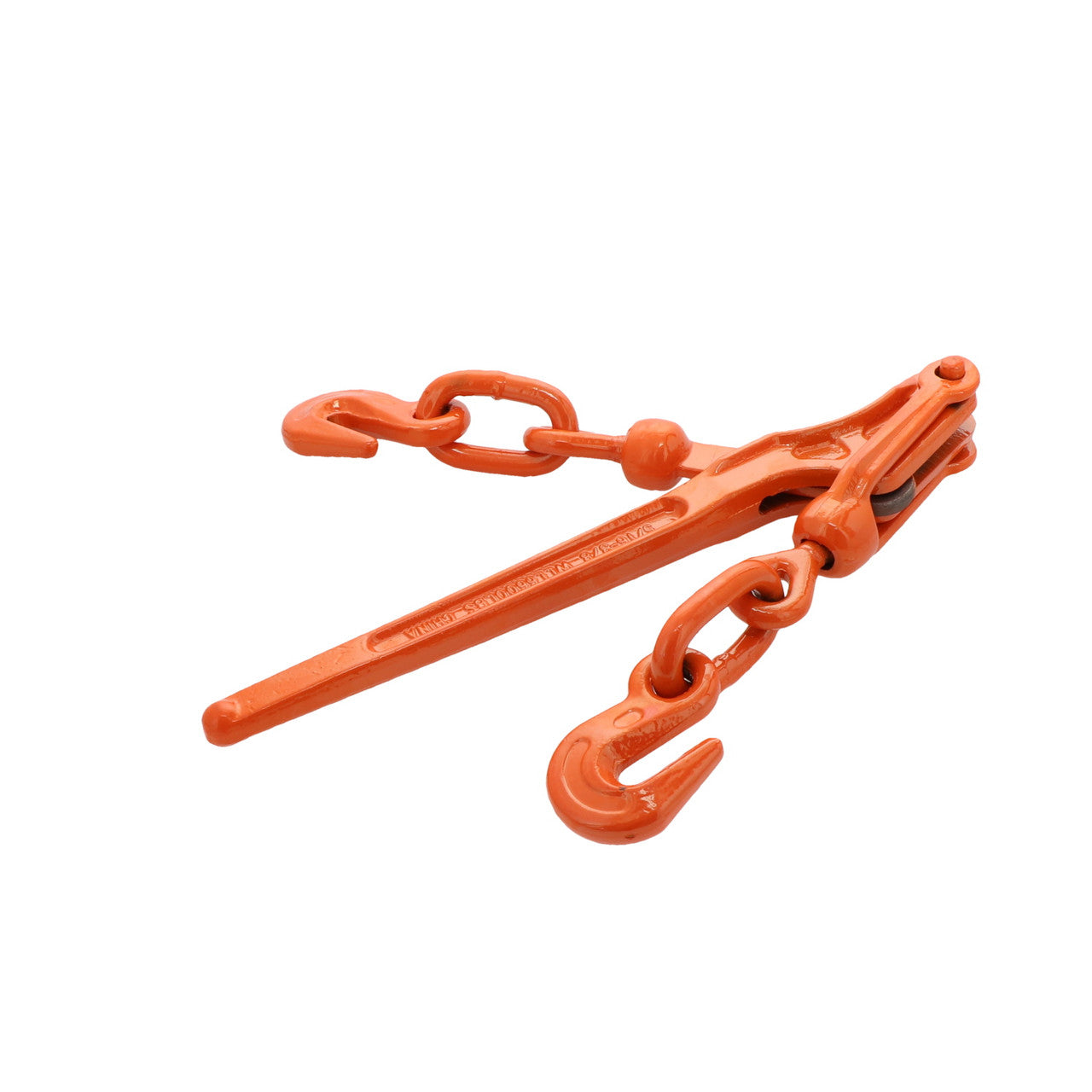

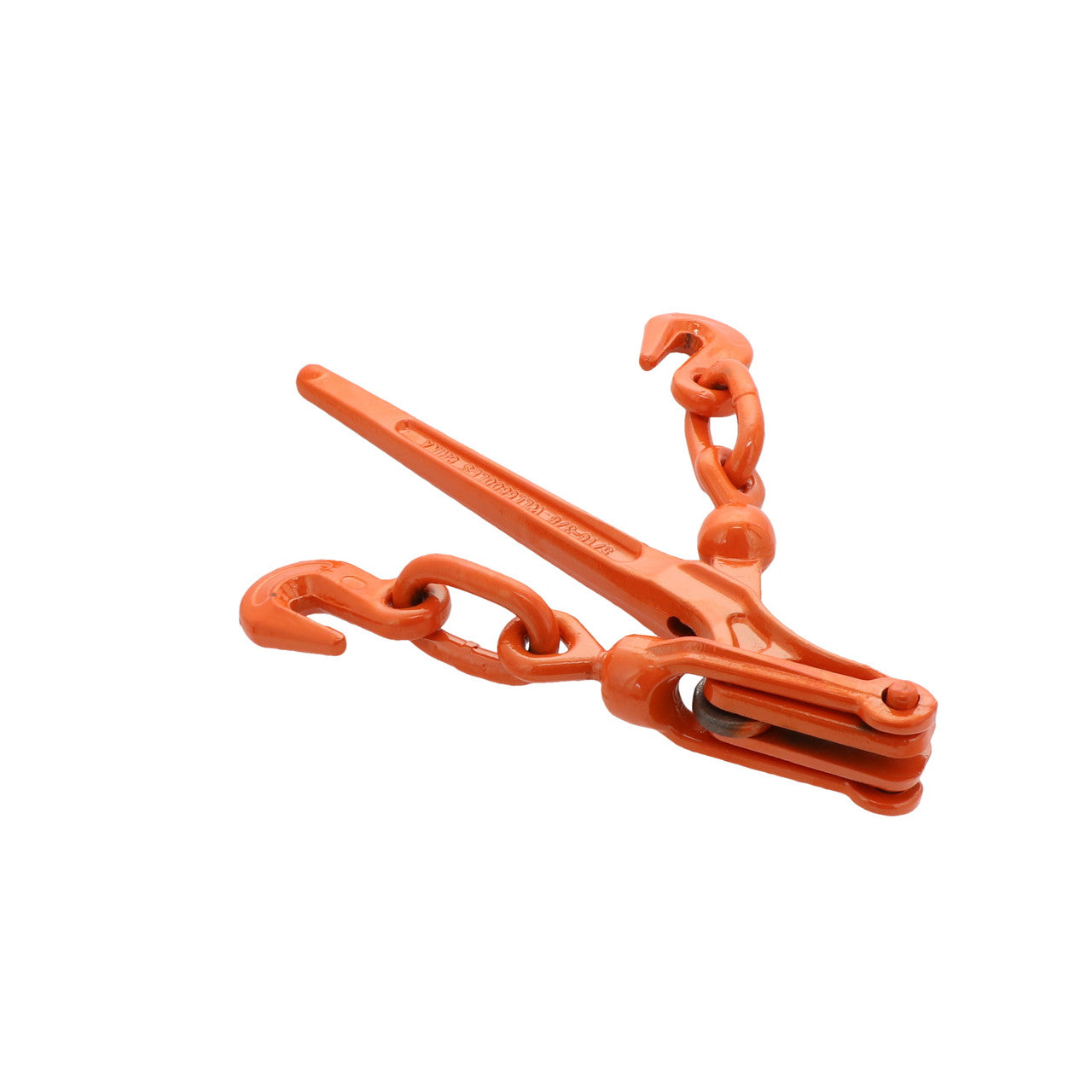

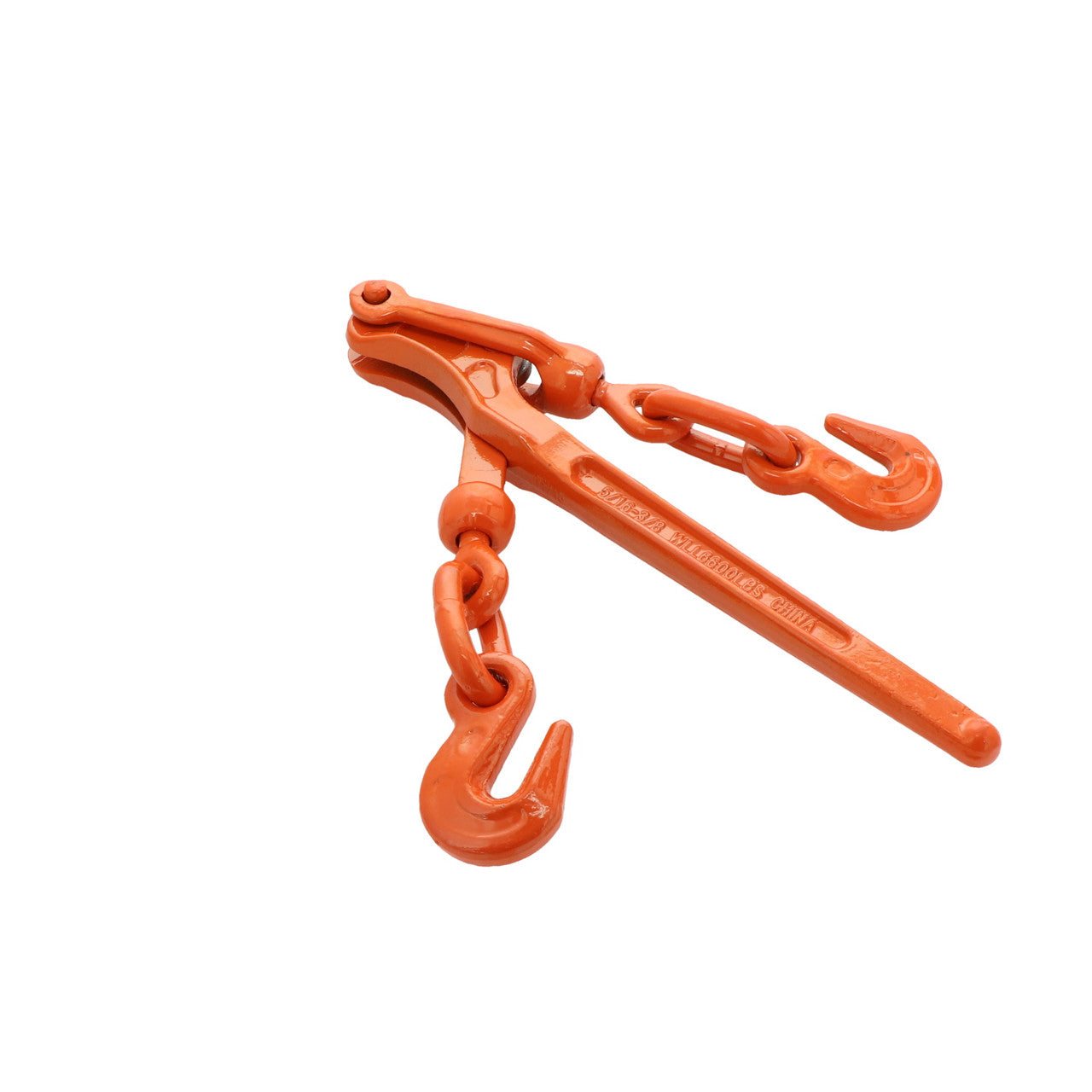

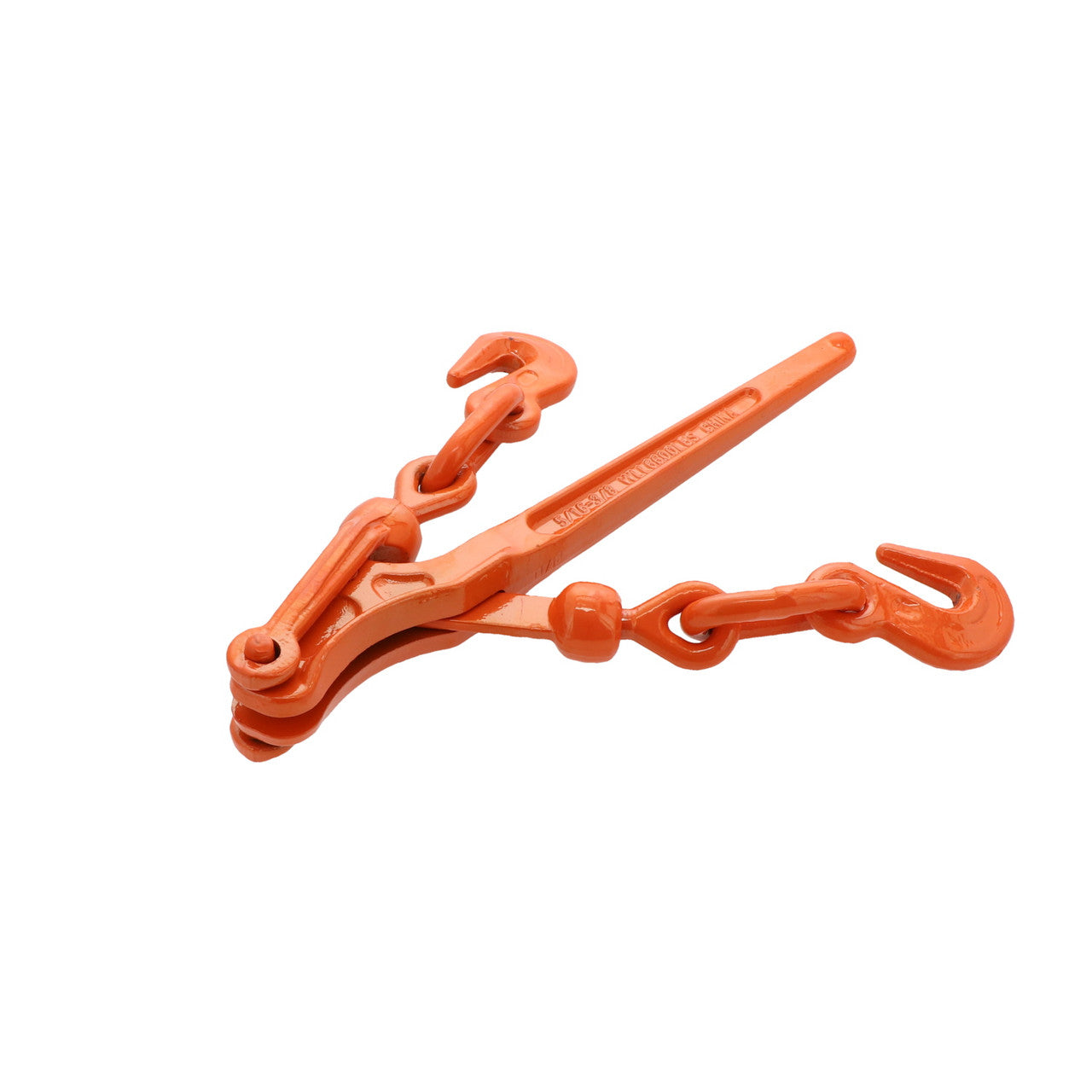

Lever Style Chain Binder for 5/16-Inch to 3/8-Inch Chains
The Lever Style Chain Binder is a very simple machine with few moving parts. The moving parts it does have are designed to give you a quick, strong, and durable tie down tensioning device that can handle a working load limit of 6,600 Lbs. / 3,000 Kgs. with chain sizes 5/16 inch to 3/8 inch.
To begin with, one of the primary parts of the Lever Style Chain Binder is the lever. This formed steel handle offers you maximum leverage for a strong tie down. With a firm push, the lever takes up the slack by pulling on the hooks, locking in place after a 180-degree rotation around the hinge. Its job is to create the tension that ties down your load.
Working together with the lever to give you the right amount of tension is a pair of 3/8-inch Clevis Grab Hooks made from a forged alloy steel and coated in a zinc plated finish for optimal durability. These hooks easily slip onto the chains for a strong, non-slip grip and remain firmly attached after the lever tightens the chains over the load.
Together, the lever and hooks create a high-quality Lever Style Chain Binder that is easy to install and even easier to operate. Your loads will be secure with this Kinedyne chain binder.
Lever Style Chain Binder for 5/16" - 3/8" Chains – 10036MD Quick Specs:
- Working Load Limit: 6,600 Lbs. / 3,000 Kgs.
- Width: 15 Inches
- Length: 24 Inches
- Weight: 7.81 Lbs. / 3.5 Kgs.
- Type/Style of Chain Binder: Lever
- Type of Hook: Clevis Grab
- Size of Hook: 3/8 Inch
Specifications
xKinedyne Lever Style Chain Binder for 5/16" - 3/8" Chains - 10036MD
Able to handle a working load limit of 6,600 Lbs. / 3,000 Kgs., Kinedyne's Lever Style Chain Binder for Chain Sizes 5/16 Inch to 3/8 Inch provides a strong tie down for your cargo. A formed steel lever and durable clevis grab hooks work together to provide a simple, effective tensioning device that is easy to install and operate.
Technical Specifications
- Working Load Limit: 6,600 Lbs. / 3,000 Kgs.
- Width: 15 Inches
- Length: 24 Inches
- Weight: 7.81 Lbs. / 3.5 Kgs.
- Type/Style of Chain Binder: Lever
- Type of Hook: Clevis Grab
- Size of Hook: 3/8 Inch
Common Applications
- Securing cargo on flatbed and open-deck trailers
- Warehouse load restraint and staging
- Distribution center shipping and receiving
- Industrial and facility material handling
- Maintenance crews for transport and rigging tasks
Safety and Stability
The lever binder uses a formed steel handle and forged alloy clevis grab hooks with zinc plating to maintain grip and corrosion resistance. It locks in place after a 180-degree lever rotation to retain tension; always inspect chain, hooks, and binder for wear before use and follow rated WLL limits.
Key Benefits
- High capacity: 6,600 lb (3,000 kg) working load limit for heavy loads
- Durable construction: forged alloy hooks and zinc-plated finish resist wear and corrosion
- Efficient tensioning: formed steel lever provides maximum leverage for fast tie-down
- Reliable stability: clevis grab hooks maintain a secure, non-slip connection
- Simple operation: few moving parts reduce maintenance and downtime
Frequently Asked Questions
What chain sizes are compatible with this binder?
Compatible with 5/16" to 3/8" chain sizes as specified.
What is the working load limit?
The working load limit is 6,600 Lbs. / 3,000 Kgs.
