Description
xYou'll be able to create an anchor point anywhere on your Series E Track or Series A Track when you install Kinedyne's Securement Point Fitting with 2" D-Ring with a 45-degree working load limit of 2,000 Lbs. / 910 Kgs.
Series E or A Securement Point Fitting w/ 2-Inch D-Ring
Kinedyne is offering a more convenient way to attach your tie down assembly to your trailer's interior wall with our Series E or A Securement Point Fitting with 2-inch D-Ring. This sturdy zinc plated securement point can be easily and quickly inserted into a Series E or Series A Track to give you a reliable anchor point for your tie down job. Insertion and removal take only seconds, and once inserted, this heat-treated carbon steel attachment point stays firmly in place as it works with your tie down assembly to keep a good, solid grip on your load.

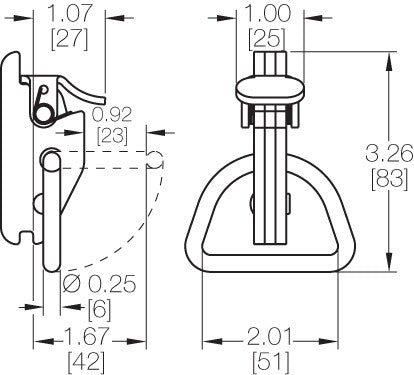

Series E or A Securement Point Fitting w/ 2" D-Ring – FE8301-1 Quick Specs:
- 45 Degree Working Load Limit: 2,000 Lbs. / 910 Kgs.
- Series Type: Series E or A Fitting
- Overall Height: 3.26 Inches
- Overall Width: 2.51 Inches
- Overall Length: 1.9 Inches
- Type of Ring: 2 Inch "D" Ring Standard
- Height of Ring: 2.17 Inches
- Thickness of Ring: 0.25 Inch
- Length of Ring: 2.51 Inches
- Weight: 0.46 Lbs. / 0.21 Kgs.
Specifications
xKinedyne Series E or A Securement Point Fitting w/ 2" D-Ring
Kinedyne offers a convenient anchor solution with the Series E or A Securement Point Fitting with 2" D-Ring. This zinc-plated, heat-treated carbon steel fitting inserts quickly into Series E or Series A track to provide a reliable anchor point for tie down assemblies. Insertion and removal take seconds, and once installed the fitting remains firmly in place to help secure loads with a 45-degree working load limit of 2,000 lbs (910 kg).
Technical Specifications
- 45 Degree Working Load Limit: 2,000 Lbs. / 910 Kgs.
- Series Type: Series E or A Fitting
- Overall Height: 3.26 Inches
- Overall Width: 2.51 Inches
- Overall Length: 1.9 Inches
- Type of Ring: 2 Inch "D" Ring Standard
- Height of Ring: 2.17 Inches
- Thickness of Ring: 0.25 Inch
- Length of Ring: 2.51 Inches
- Weight: 0.46 Lbs. / 0.21 Kgs.
Common Applications
- Trailer interior anchor points for cargo restraint
- Warehouse load securement and transport
- Distribution and logistics vehicles
- Industrial material handling and fleet operations
- Facility maintenance and staging areas
Safety and Stability
The securement point is heat-treated carbon steel with zinc plating and a defined 45-degree working load limit of 2,000 lbs (910 kg). When correctly inserted into Series E or A track and used within rated limits, it provides a stable, reliable anchor for tie down assemblies.
Key Benefits
- Capacity: 2,000 lb (910 kg) 45° working load limit for heavy-duty restraint
- Durability: heat-treated carbon steel construction with zinc plating resists wear
- Mobility: quick insertion and removal for flexible anchor placement
- Efficiency: installs in seconds to reduce load securement time
- Safety: positive engagement with track minimizes movement during transport
Frequently Asked Questions
Is this fitting compatible with both Series E and Series A track?
Yes. The fitting is designed for insertion and use with Series E or Series A track systems.
What is the working load limit and material?
The 45-degree working load limit is 2,000 lbs (910 kg). The fitting is heat-treated carbon steel with zinc plating and includes a 2" D-ring.
Ordering and Shipping
To purchase or order the Kinedyne Series E or A Securement Point Fitting w/ 2" D-Ring, contact Material Handling Canada for pricing, availability, and shipping. Visit materialhandlingcanada.com or contact our sales team to request a quote and arrange supply and delivery.
