Description
xQuickly and easily create a heavy-duty anchor point on your Series L Track with‚ÄØKinedyne's‚ÄØSeries L Heavy-Duty‚ÄØTriple Stud Securement Point Fitting with Pear Shape‚ÄØRing.

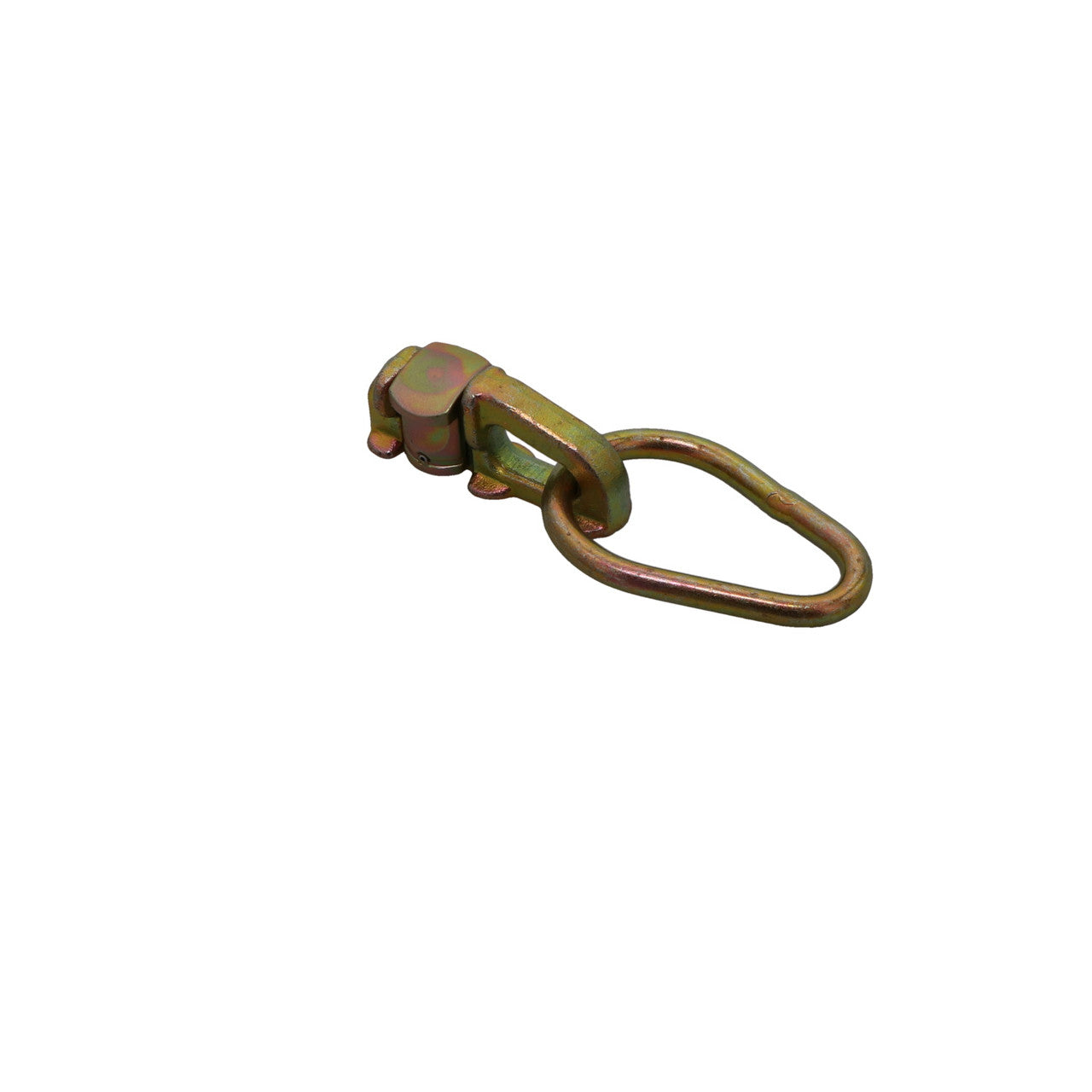

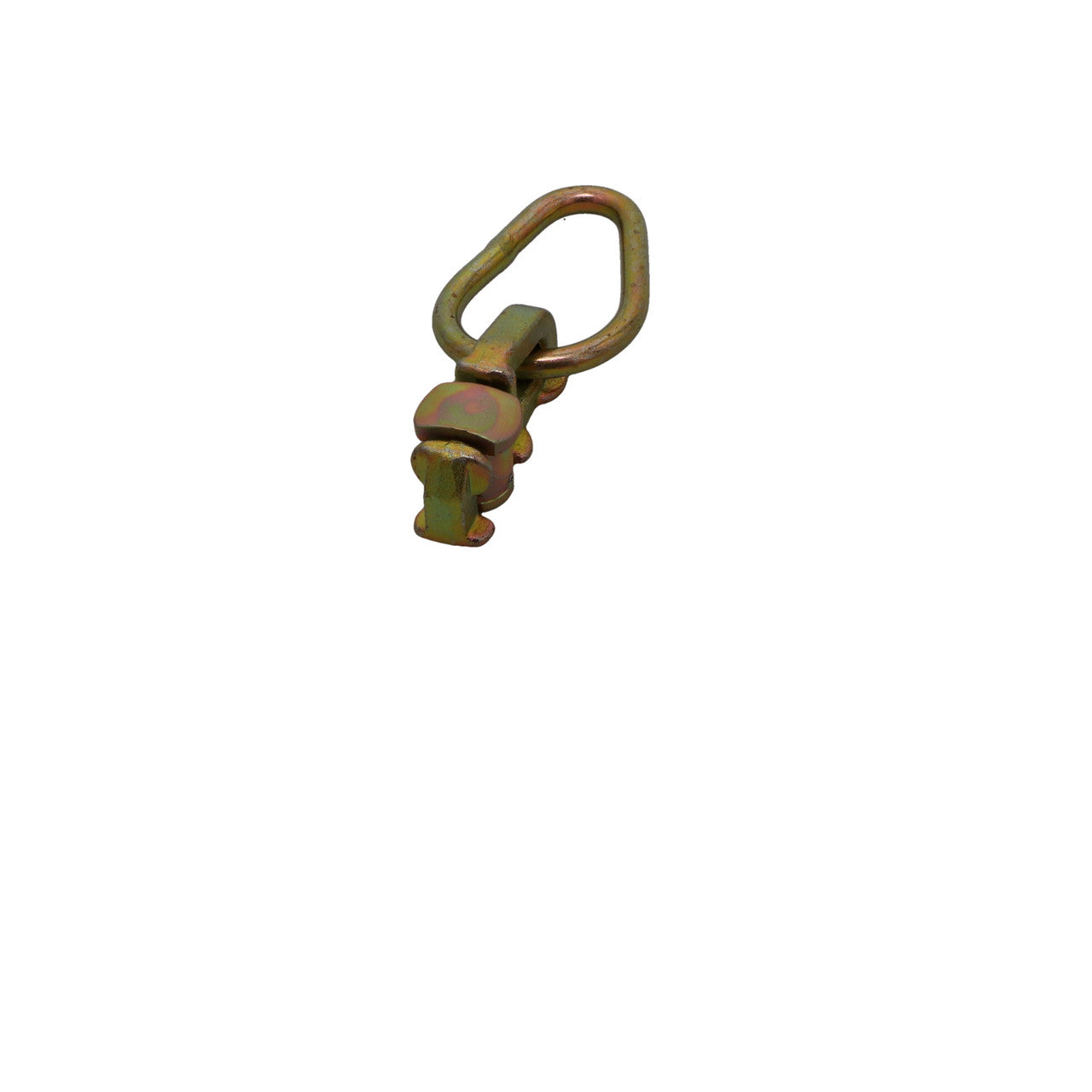

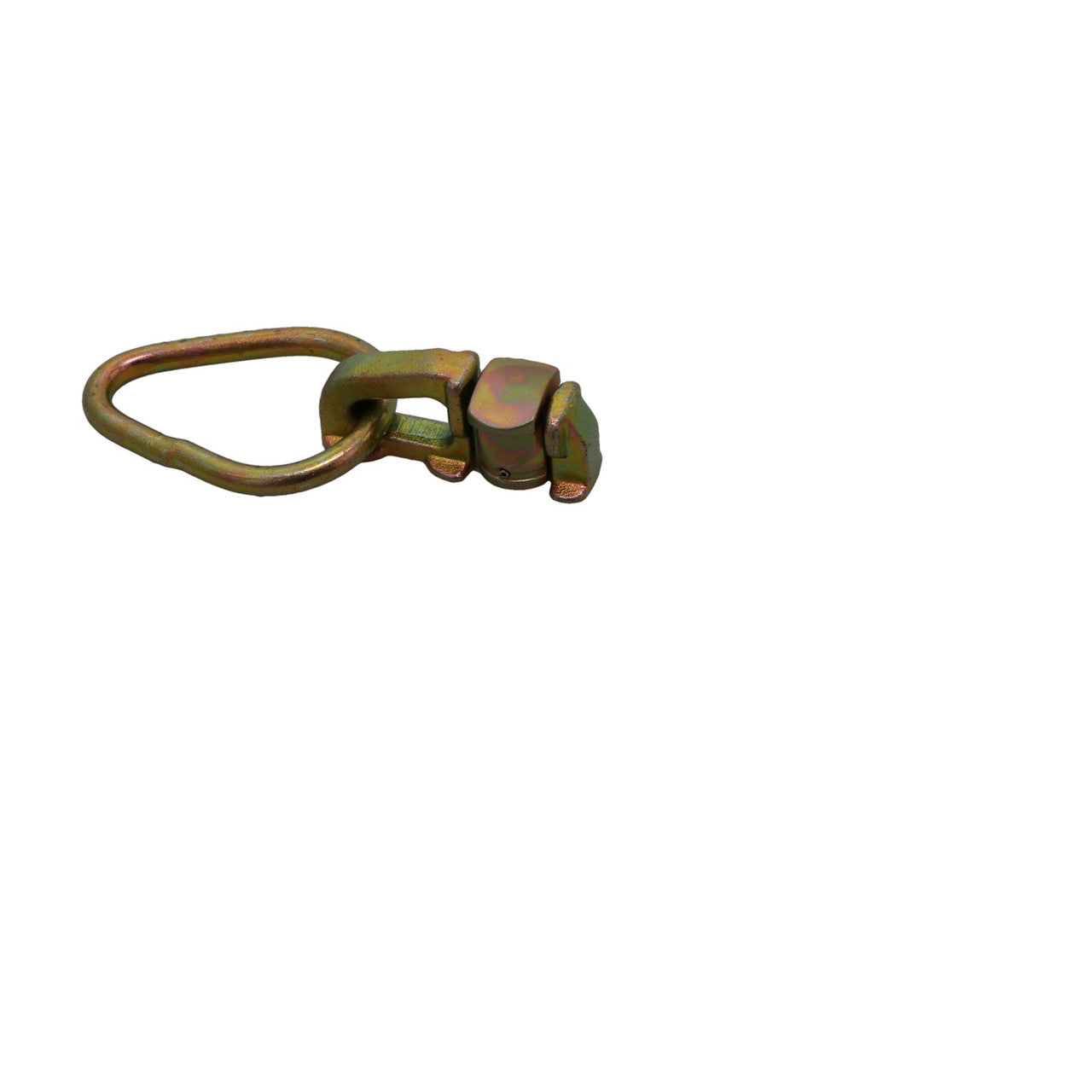

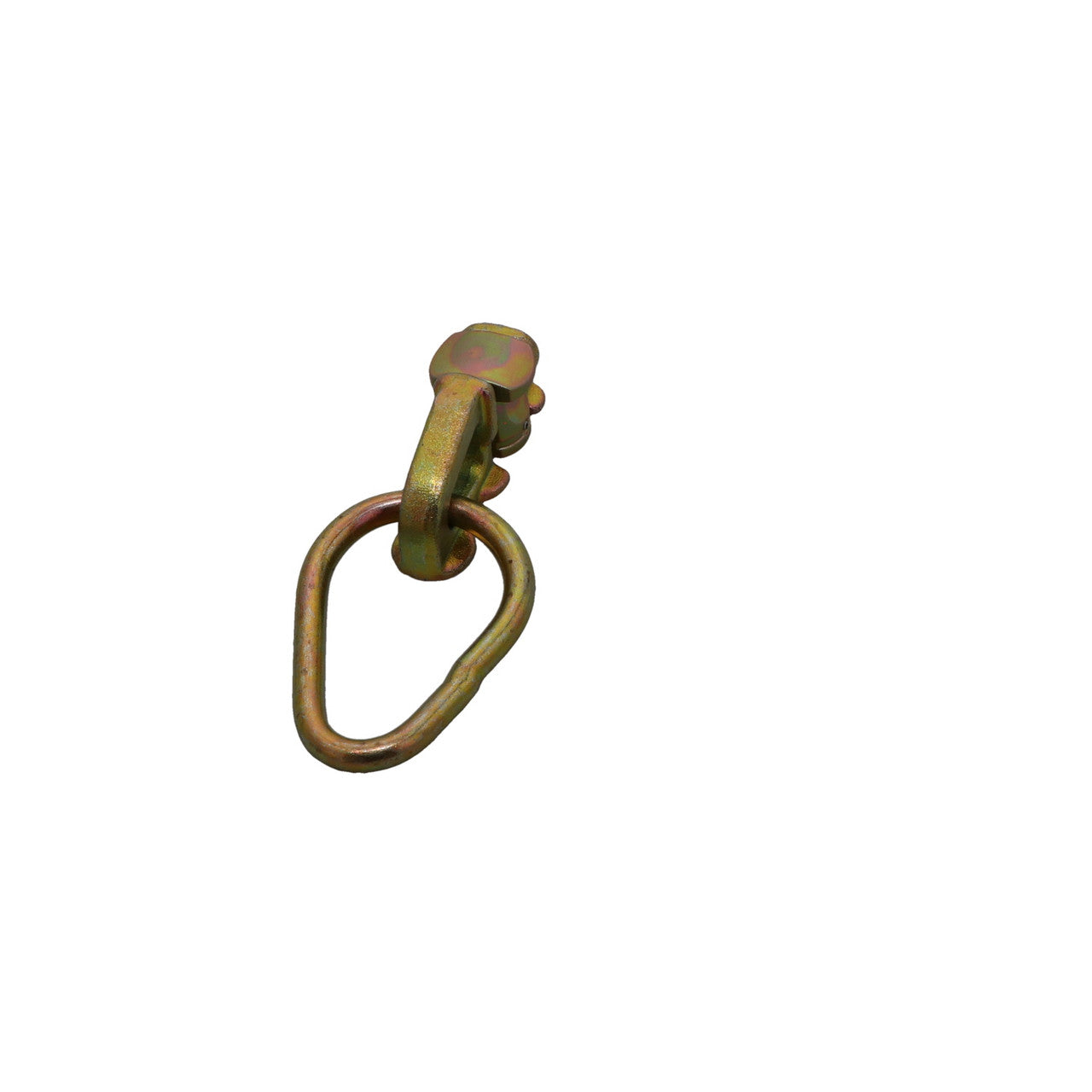

Series L Heavy-Duty Triple Stud Securement Point Fitting w/ Pear Ring
We‚ÄØdesigned our Series L Heavy-Duty Triple Stud Securement Point Fitting with a wide Pear Shape Ring that can be used with a wide variety of hooks and other end fittings, giving you full control over how you want to tie down your important cargo. Manufactured from heat-treated carbon steel with strength in mind, this Securement Point Fitting‚ÄØis‚ÄØable to‚ÄØhandle the heavy-duty tie down jobs with a working load limit of 2,000 Lbs. / 910 Kgs. at both 0 degrees and 45 degrees and‚ÄØa working load limit of 1,670 Kgs. / 757 Kgs. at 90 degrees, making it the ideal attachment point for your cargo.‚ÄØOur tie down point is coated in a zinc plated finish to enhance its durability as‚ÄØwell.

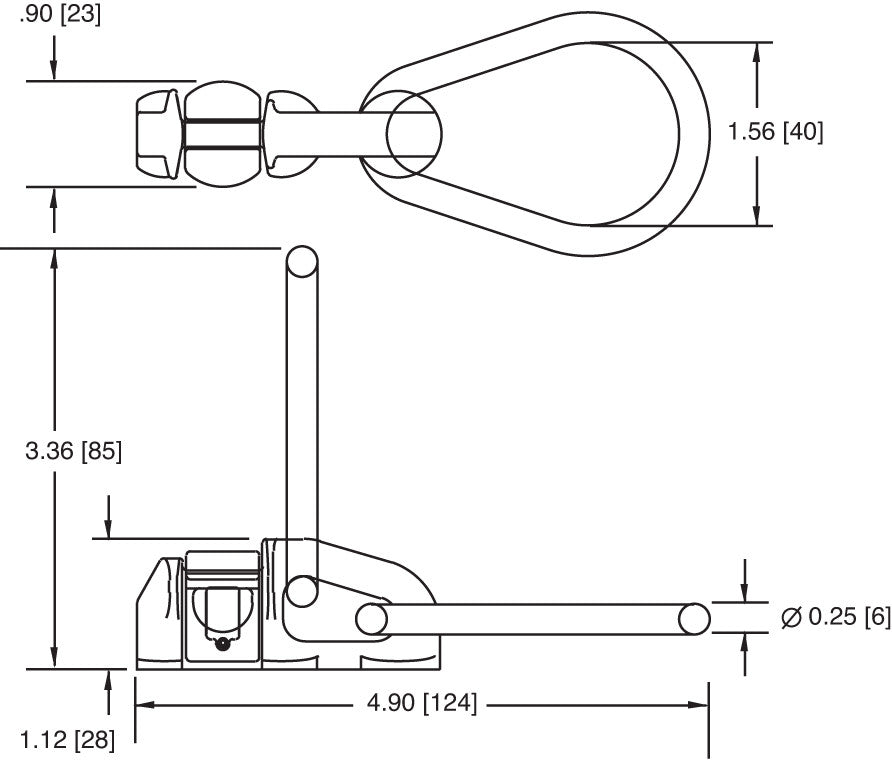

Series L Heavy-Duty Triple Stud Securement Point Fitting w/ Pear Ring – 32507 Quick Specs: 
- 0 Degree Working Load Limit:‚ÄØ2,000 Lbs. / 910‚ÄØKgs.
- 45 Degree Working Load Limit:‚ÄØ2,000 Lbs. / 910‚ÄØKgs.
- 90 Degree Working Load Limit:‚ÄØ1,670 Lbs. / 757‚ÄØKgs.
- Series Type:‚ÄØSeries L Fitting
- Overall Height:‚ÄØ3.36‚ÄØInches
- Overall Width:‚ÄØ2.06‚ÄØInches
- Overall Length:‚ÄØ4.90‚ÄØInches
- Type of Ring:‚ÄØPear Shape Ring Standard
- Height of Ring:‚ÄØ2.3‚ÄØInches
- Thickness of Ring:‚ÄØ0.25‚ÄØInch
- Length of Ring:‚ÄØ2.06‚ÄØInches
- Weight:‚ÄØ0.34‚ÄØLbs. /‚ÄØ0.15‚ÄØKgs.
Specifications
xKinedyne Series L Heavy-Duty Triple Stud Securement Point Fitting w/ Pear Ring
Quickly and easily create a heavy-duty anchor point on your Series L Track with Kinedyne's Series L Heavy-Duty Triple Stud Securement Point Fitting with Pear Shape Ring. Manufactured from heat-treated carbon steel with a zinc plated finish, this securement point is designed to handle heavy-duty tie down jobs while accommodating a wide variety of hooks and end fittings.
Technical Specifications
- 0 Degree Working Load Limit: 2,000 Lbs. / 910 Kgs.
- 45 Degree Working Load Limit: 2,000 Lbs. / 910 Kgs.
- 90 Degree Working Load Limit: 1,670 Lbs. / 757 Kgs.
- Series Type: Series L Fitting
- Overall Height: 3.36 Inches
- Overall Width: 2.06 Inches
- Overall Length: 4.90 Inches
- Type of Ring: Pear Shape Ring Standard
- Height of Ring: 2.3 Inches
- Thickness of Ring: 0.25 Inch
- Length of Ring: 2.06 Inches
- Weight: 0.34 Lbs. / 0.15 Kgs.
Common Applications
- Truck and trailer cargo securement
- Warehouse and distribution tie-down points
- Industrial load restraint on flatbeds and equipment transport
- Facility and maintenance fastening for heavy items
Safety and Stability
The fitting is heat-treated carbon steel with a zinc plated finish for corrosion resistance and consistent strength. Observe the specified working load limits at 0°, 45° and 90° and install on appropriate Series L Track per manufacturer guidelines to ensure stability and safety.
Key Benefits
- High capacity: rated for up to 2,000 lbs. at 0° and 45°
- Durable construction: heat-treated carbon steel with zinc plating
- Versatile compatibility: pear shape ring accepts a variety of hooks and end fittings
- Compact footprint: low weight and moderate dimensions for efficient installation
- Improves safety and load control when used with certified track systems
Frequently Asked Questions
What is the working load limit of this fitting?
Rated 2,000 Lbs. / 910 Kgs. at 0° and 45°, and 1,670 Lbs. / 757 Kgs. at 90°.
What materials and finish are used?
Heat-treated carbon steel construction with a zinc plated finish for enhanced durability and corrosion resistance.
