Description
xFor a quick and discreet attachment point for your steel frame flatbed trailer, Kinedyne is offering our Standard-Duty Floor Chain Tie-Down with Grade 43 Chain. This handy tie down can handle a working load limit of 5,000 Lbs. / 2,270 Kgs.

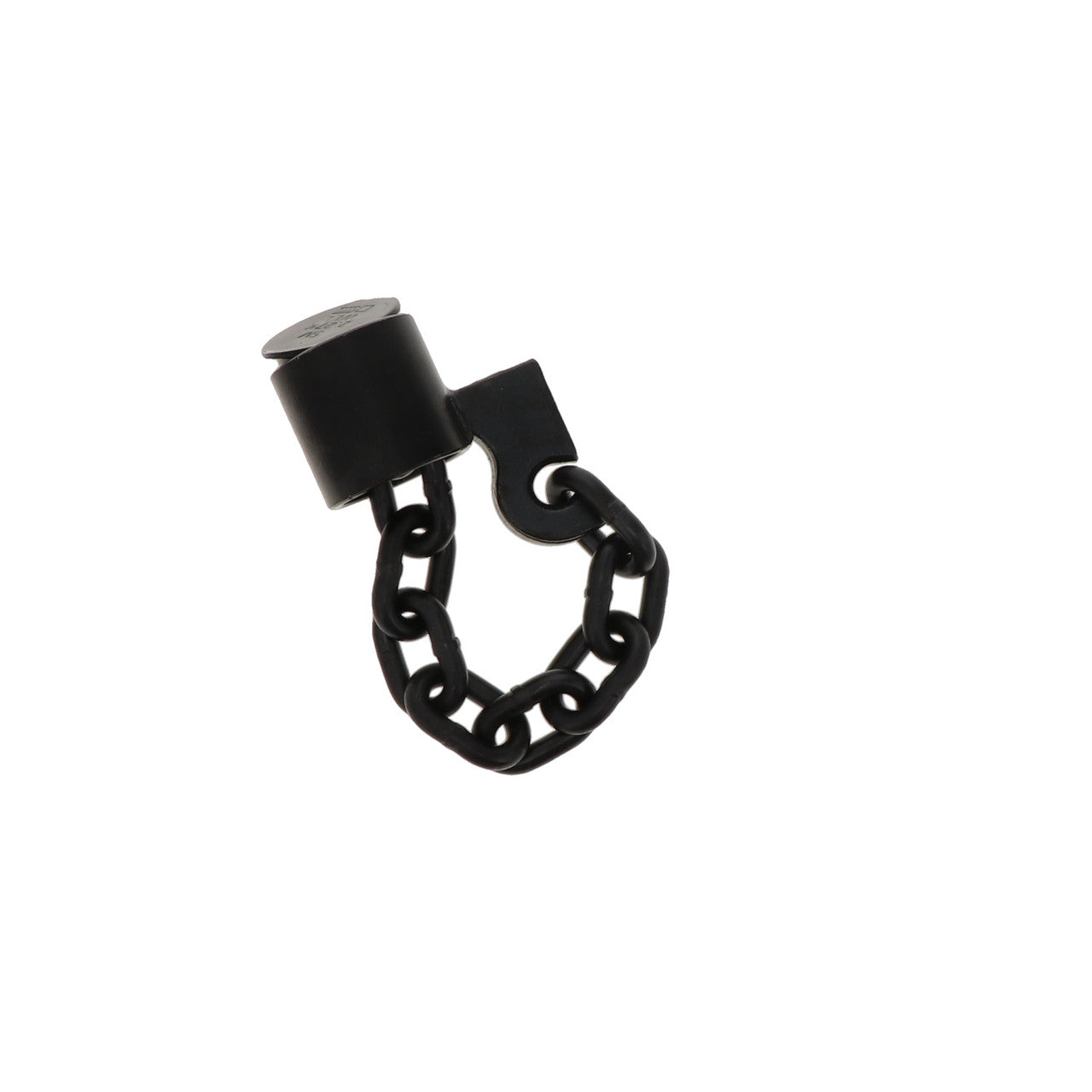

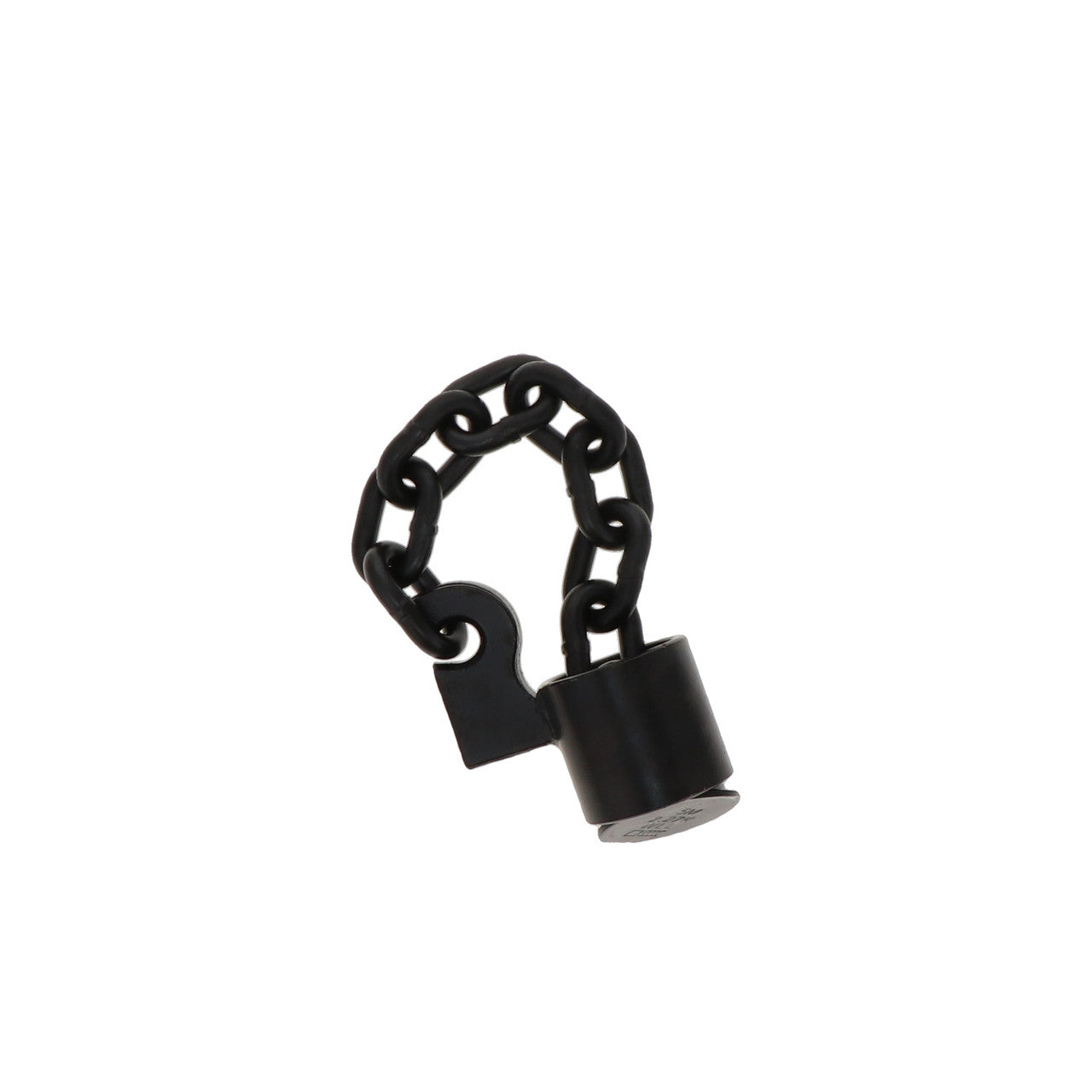

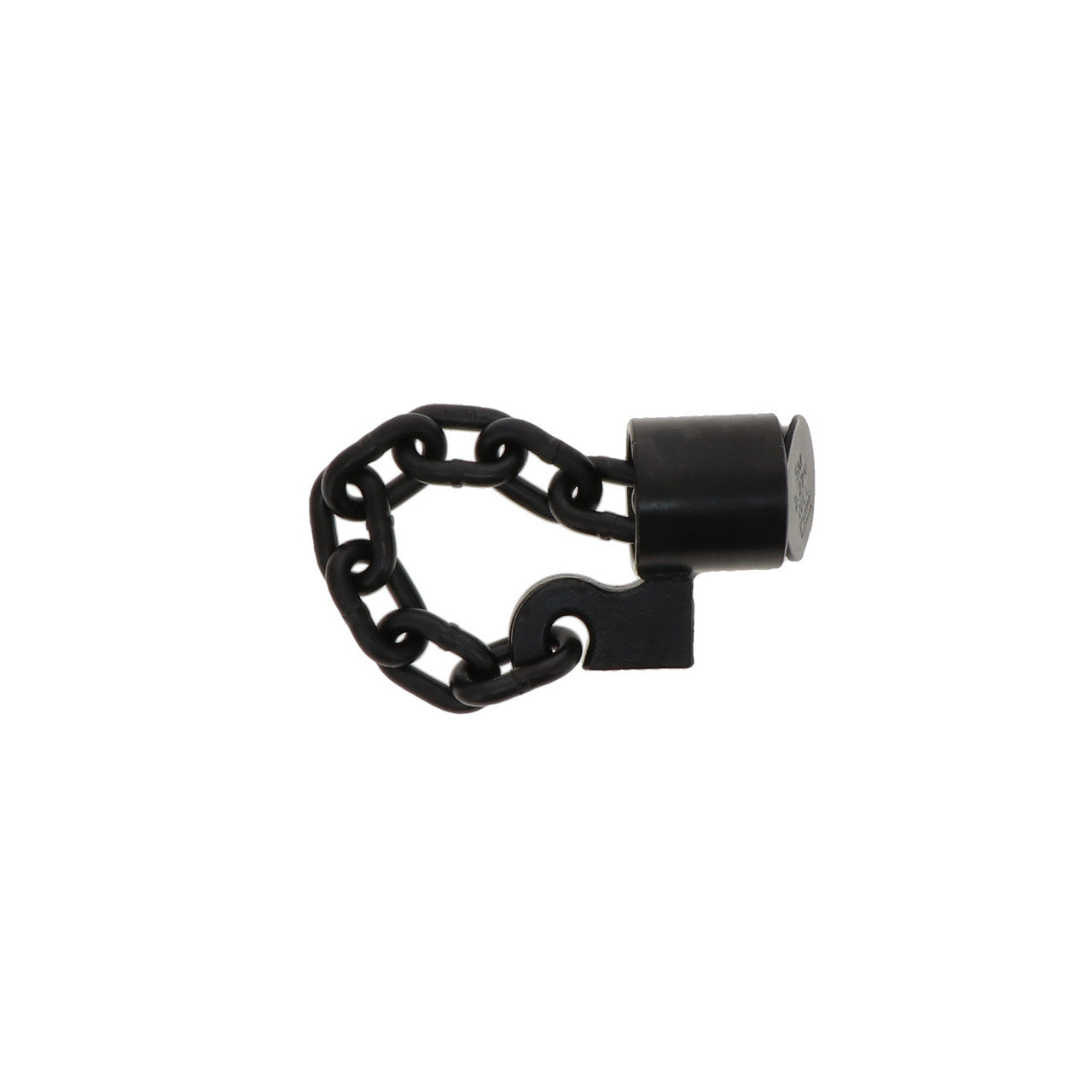

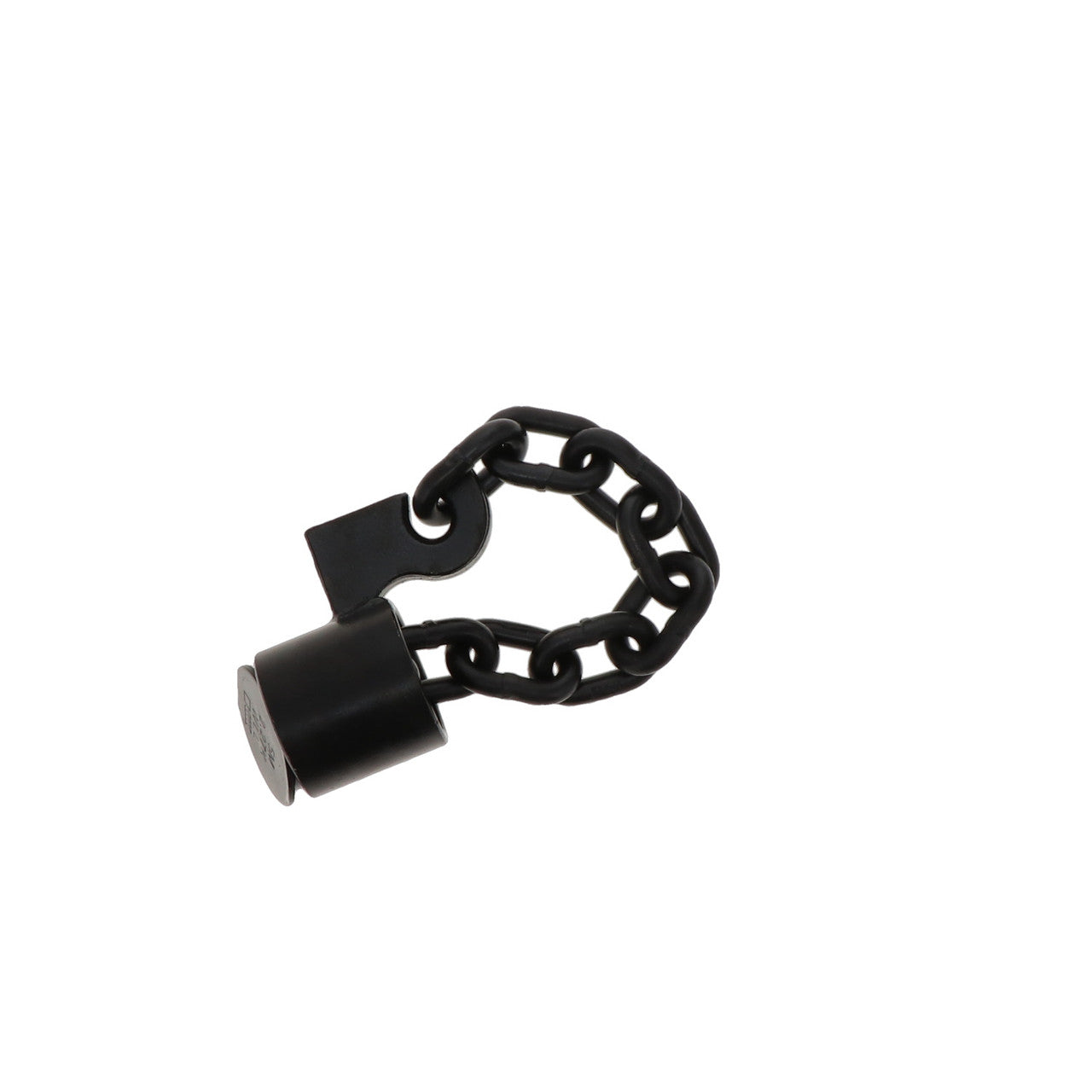

Standard-Duty Grade 43 Floor Chain Tie-Down
For anyone who's using a steel frame flatbed trailer, you'll need Kinedyne's Standard-Duty Floor Chain Tie-Down with Grade 43 Chain. Our Floor Chain Tie-Down with a working load limit of 5,000 Lbs. / 2,270 Kgs. is a self-storing, convenient, and reliable anchor point for securing your important loads. This strong attachment point can be used to easily and quickly secure your valuable cargo to the back of your flatbed trailer. Built to last, this Floor Chain Tie-Down is made of 3/8-inch Grade 43 chains that are manufactured with durability and strength in mind, offering you a reliable anchor for your important cargo securement loads.
Weld this handy and strong Grade 43 Floor Chain Tie-Down to the trailer cross member with a minimum weld requirements of 1/4-inch filet weld around the entire contact surface and 1/8-inch penetration and flush with the trailer floor. In order to prevent interference during loading and/unloading, our Floor Chain Tie-Down lays flush with the trailer's floor where the steel chain and top cap come out, establishing a tight a firm hold over your cargo without sacrificing any strength. All of our Floor Chain Tie-Downs are engineered and manufactured to meet the recommendations set forth by the National Association of Chain Manufacturers (NACM).
Standard-Duty Grade 43 Floor Chain Tie-Down – 10421 Quick Specs:
- Working Load Limit: 5,000 Lbs. / 2,270 Kgs.
- Grade of Chain: High Test Grade 43
- Width of Chain: 3/8 Inch
- Weight: 2.8 Lbs. / 1.3 Kgs.
Specifications
xKinedyne Standard-Duty Grade 43 Floor Chain Tie-Down
For a quick and discreet attachment point for your steel frame flatbed trailer, Kinedyne is offering our Standard-Duty Floor Chain Tie-Down with Grade 43 Chain. This handy tie down can handle a working load limit of 5,000 Lbs. / 2,270 Kgs.
For anyone using a steel frame flatbed trailer, this Standard-Duty Floor Chain Tie-Down with Grade 43 Chain provides a self-storing, convenient, and reliable anchor point for securing loads. The unit has a 5,000 lbs (2,270 kgs) working load limit and is made with 3/8-inch Grade 43 chain for durability and strength. The tie-down lays flush with the trailer floor to prevent interference during loading and unloading while providing a firm hold on cargo. All units are engineered to meet the recommendations set forth by the National Association of Chain Manufacturers (NACM).
Weld this Floor Chain Tie-Down to the trailer cross member with minimum weld requirements of a 1/4-inch fillet weld around the entire contact surface and 1/8-inch penetration, flush with the trailer floor.
Technical Specifications
- Working Load Limit: 5,000 Lbs. / 2,270 Kgs.
- Grade of Chain: High Test Grade 43
- Width of Chain: 3/8 Inch
- Weight: 2.8 Lbs. / 1.3 Kgs.
Common Applications
- Steel frame flatbed trailers for freight and equipment transport
- Distribution and logistics load securement
- Industrial transport and hauling in manufacturing sites
- Facility maintenance and material movement
Safety and Stability
The product provides a rated 5,000 lb working load limit when properly welded and installed per the specified fillet weld and penetration requirements. It is designed to sit flush with the trailer floor to reduce trip hazards and prevent interference during loading and unloading.
Key Benefits
- Capacity: 5,000 lb working load limit for secure cargo restraint
- Durability: 3/8-inch Grade 43 high-test chain construction
- Space efficiency: self-storing, lays flush with trailer floor
- Installation efficiency: specified weld requirements for reliable mounting
- Safety: engineered to NACM recommendations for chain performance
Frequently Asked Questions
What is the working load limit?
The working load limit is 5,000 lbs (2,270 kgs).
What are the installation requirements?
Weld to the trailer cross member with a minimum 1/4-inch fillet weld around the contact surface and 1/8-inch penetration, flush with the trailer floor.
