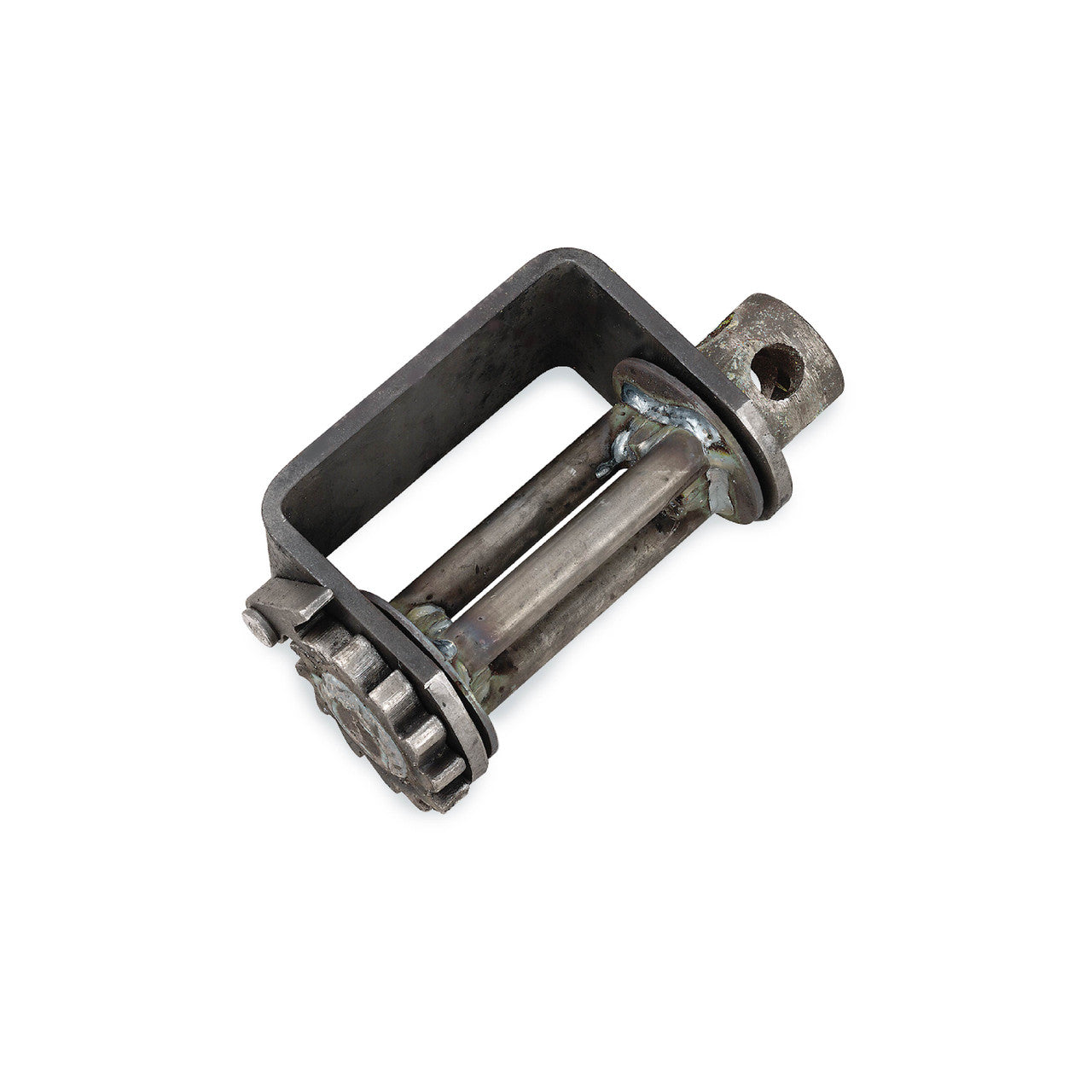

Kinedyne Standard No Paint Weld-On 3-Bar Winch

Vendor: Kinedyne
SKU: 14006NP
Availability: Processing Required
Product type: Cargo Handling
Notice: This product can be ordered, but in-store availability may vary.
Please call 1-888-799-7225 to confirm.
$71.88
$71.88
$71.88
Save $0.00
color: Black (no paint)
Subtotal: $71.88
Kinedyne Standard No Paint Weld-On 3-Bar Winch by Kinedyne, weld-on tie-down winch for 5,000 lb capacity, industrial cargo securement

Kinedyne Standard No Paint Weld-On 3-Bar Winch

$71.88
Kinedyne Standard No Paint Weld-On 3-Bar Winch by Kinedyne, weld-on tie-down winch for 5,000 lb capacity, industrial cargo securement

Kinedyne Standard No Paint Weld-On 3-Bar Winch

$71.88
color: Black (no paint)
Description
Description
x

Kinedyne's No Paint Standard Profile Weld-On 3-Bar Winch with a working load limit of 5,000 Lbs. / 2,270 Kgs. is excellent to use in icy conditions. This makes it the ideal tie down method for your flatbed during the winter months.

Standard No Paint Weld-On 3-Bar Winch

Keep a strong and steady grip over your important cargo, even during the freezing winter months, with Kinedyne's No Paint Standard Profile Weld-On 3-Bar Winch. With a working load limit of 5,000 Lbs. / 2,270 Kgs., our winch is designed to make your tie down job much easier, especially during cold temperatures that could otherwise hamper the cargo securement process. Luckily, our winch is built to withstand extreme weather conditions while retaining its industrial strength and enhanced durability.

In order to make your tie down job as secure as possible, we've manufactured our No Paint Standard Profile Weld-On 3-Bar Winch from heat-treated carbon steel for extra strength. Built with an easy-to-access thumb pawl, it's much easier to tighten or loosen the Winch Strap without having to remove your gloves, saving you a lot of time and energy that can be used to secure your load instead.

All of our winches are designed to comply with North American Regulations and have been stamped with the manufactured date, working load limit, and the country of origin. They are engineered in order to comply with DOT regulations, and CHP, North American Cargo Securement, WSTDA, and Canadian 905 standards.

Standard No Paint Weld-On 3-Bar Winch – 14006NP Quick Specs:

  • Working Load Limit: 5,000 Lbs. / 2,270 Kgs.
  • Height: 5.5 Inches
  • Width: 4 Inches
  • Length: 10.12 Inches
  • Weight: 6 Lbs. / 2.7 Kgs.
  • Storage Capacity (Webbing Length): 20 Feet Approximately
  • Recommended Installation Instructions: View Instruction Manual Here
Specifications
Specifications
x

Kinedyne Standard No Paint Weld-On 3-Bar Winch

Kinedyne's No Paint Standard Profile Weld-On 3-Bar Winch with a working load limit of 5,000 Lbs. / 2,270 Kgs. is excellent to use in icy conditions. This makes it the ideal tie down method for your flatbed during the winter months.

Keep a strong and steady grip over your important cargo, even during the freezing winter months, with Kinedyne's No Paint Standard Profile Weld-On 3-Bar Winch. With a working load limit of 5,000 Lbs. / 2,270 Kgs., the winch is designed to make tie-down tasks easier in cold temperatures that could otherwise hamper cargo securement. The winch is built to withstand extreme weather while retaining industrial strength and durability.

Manufactured from heat-treated carbon steel for extra strength and finished with a no-paint surface to perform reliably in icy conditions, the unit features an easy-to-access thumb pawl that allows tightening or loosening of the winch strap while wearing gloves. All winches are stamped with manufacture date, working load limit, and country of origin and are engineered to comply with DOT, CHP, North American Cargo Securement, WSTDA, and Canadian 905 standards.

Technical Specifications

  • Working Load Limit: 5,000 Lbs. / 2,270 Kgs.
  • Height: 5.5 Inches
  • Width: 4 Inches
  • Length: 10.12 Inches
  • Weight: 6 Lbs. / 2.7 Kgs.
  • Storage Capacity (Webbing Length): 20 Feet Approximately
  • Recommended Installation Instructions: View Instruction Manual Here

Common Applications

  • Flatbed cargo securement for transportation and logistics
  • Winter and icy-condition tie-downs for distribution fleets
  • Use in warehouse shipping and loading operations
  • Industrial and facility fleet maintenance and equipment restraint
  • General maintenance and repair operations requiring fixed weld-on winches

Safety and Stability

The winch is rated and stamped with its working load limit and manufacture date and is engineered to meet applicable North American cargo securement and regulatory standards. Proper weld-on installation and adherence to the provided instruction manual are required to ensure safe operation and stability under load.

Key Benefits

  • High capacity: 5,000 Lbs. / 2,270 Kgs. working load limit for heavy cargo
  • Durable construction: heat-treated carbon steel for extended service life
  • Reliable in cold conditions: no-paint finish reduces icing issues
  • Operational efficiency: thumb pawl accessible while wearing gloves
  • Regulatory compliance: stamped and engineered to meet DOT, WSTDA and Canadian standards

Frequently Asked Questions

What is the working load limit?

The working load limit is 5,000 Lbs. (2,270 Kgs.), and this value is stamped on the winch.

Is the winch suitable for winter conditions?

Yes. The no-paint finish and heat-treated carbon steel construction are intended to perform reliably in icy and cold environments.

Ordering and Shipping

To order, purchase, or arrange shipping for the Kinedyne Standard No Paint Weld-On 3-Bar Winch, contact Material Handling Canada. Visit materialhandlingcanada.com to request a quote, confirm availability, or discuss delivery and installation support.
