Description

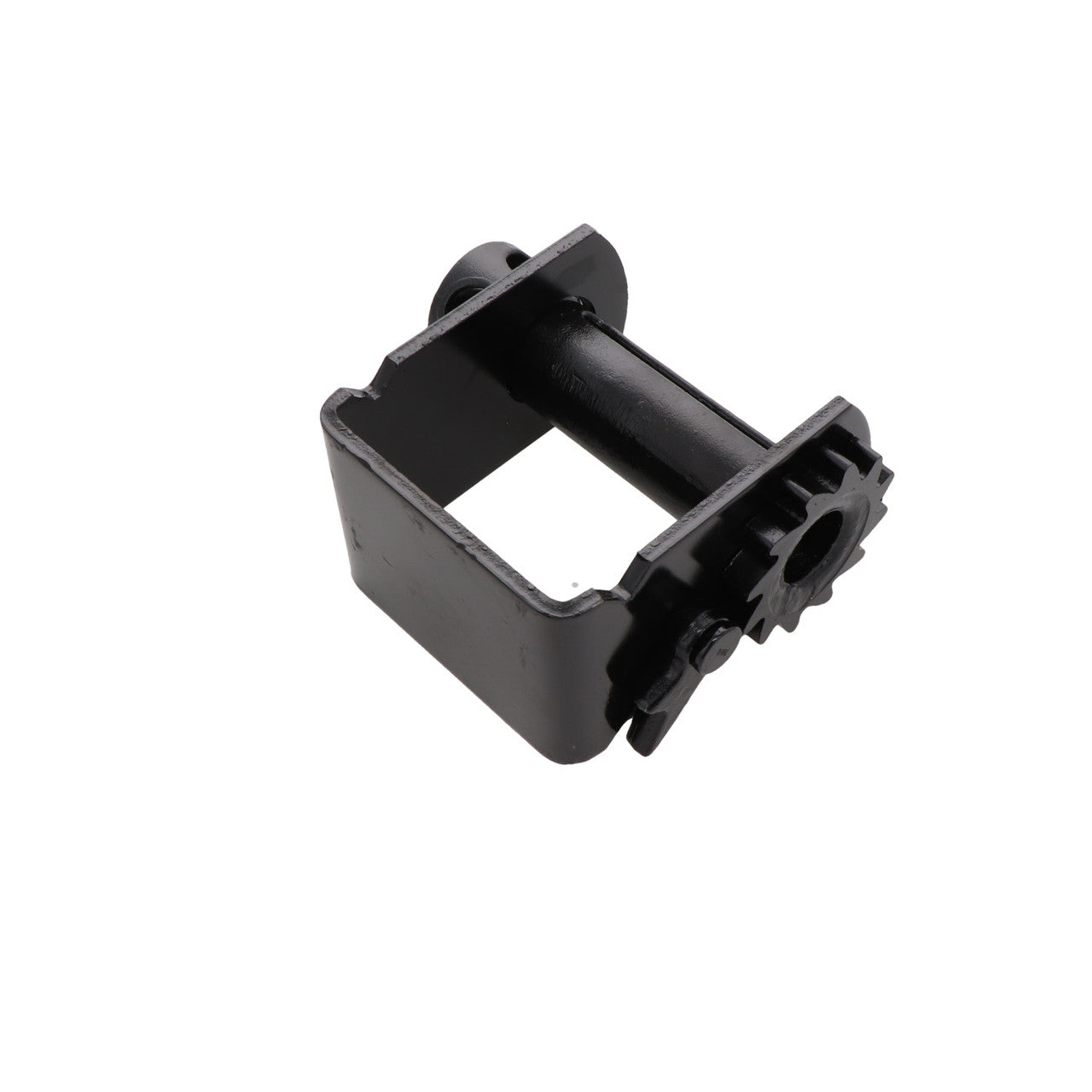

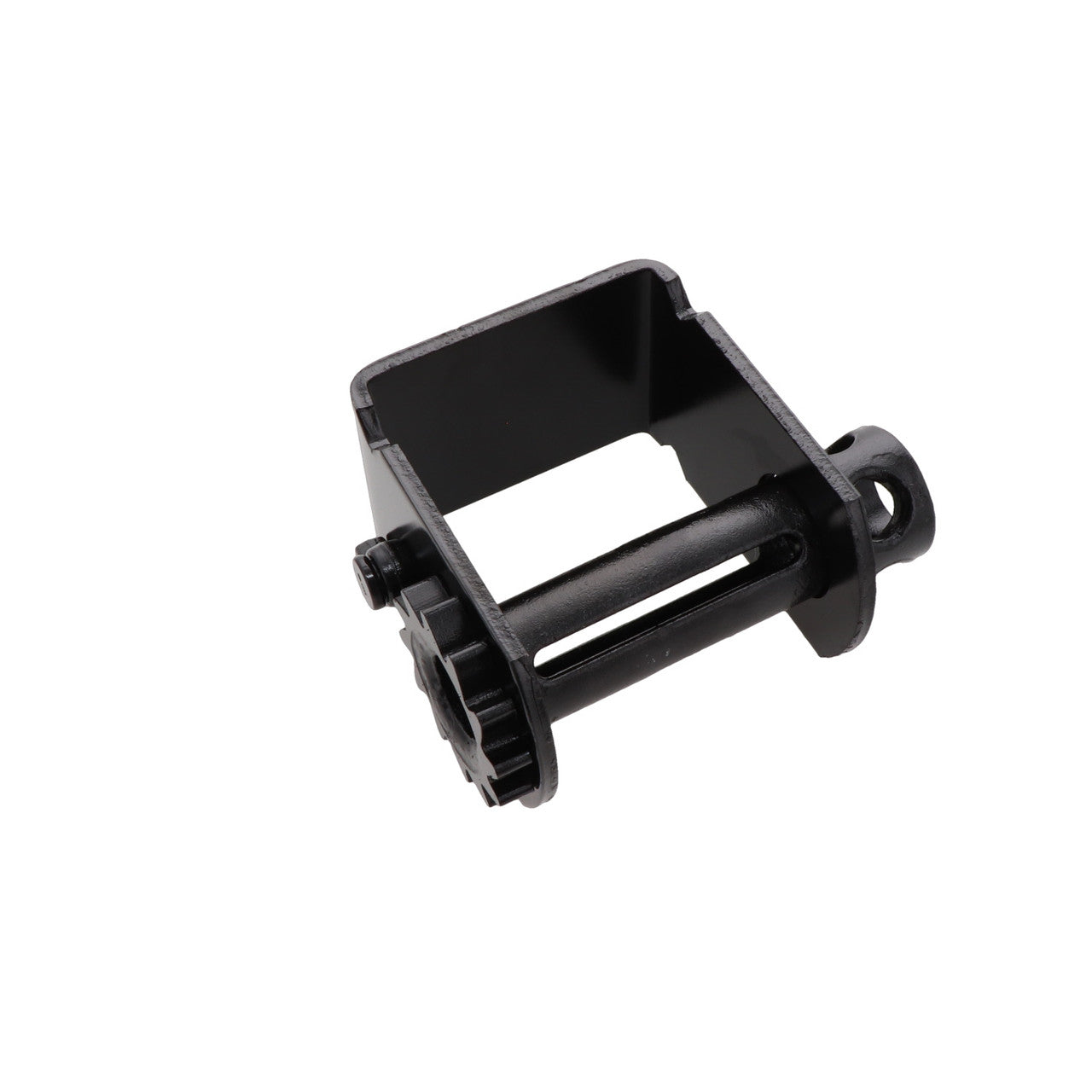

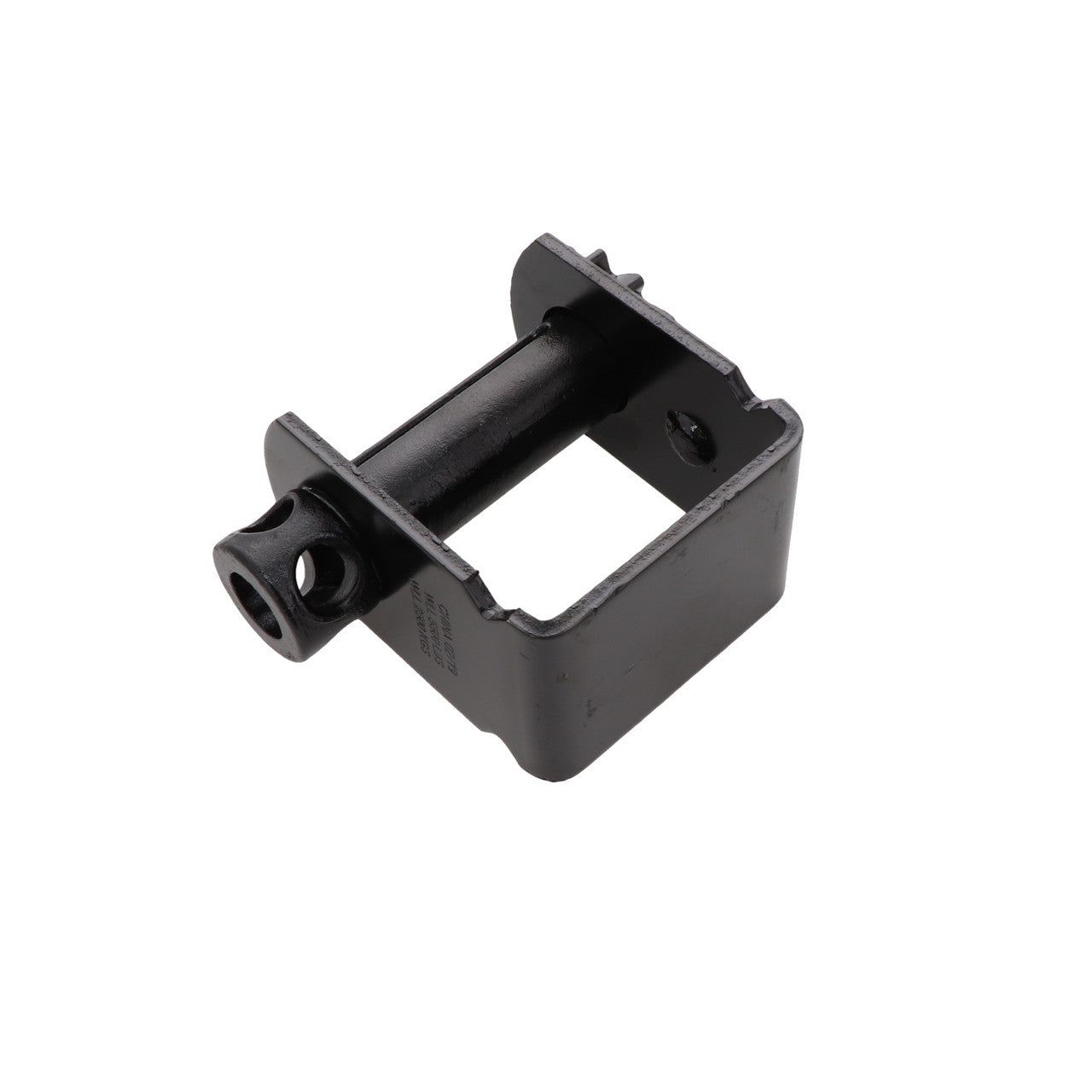

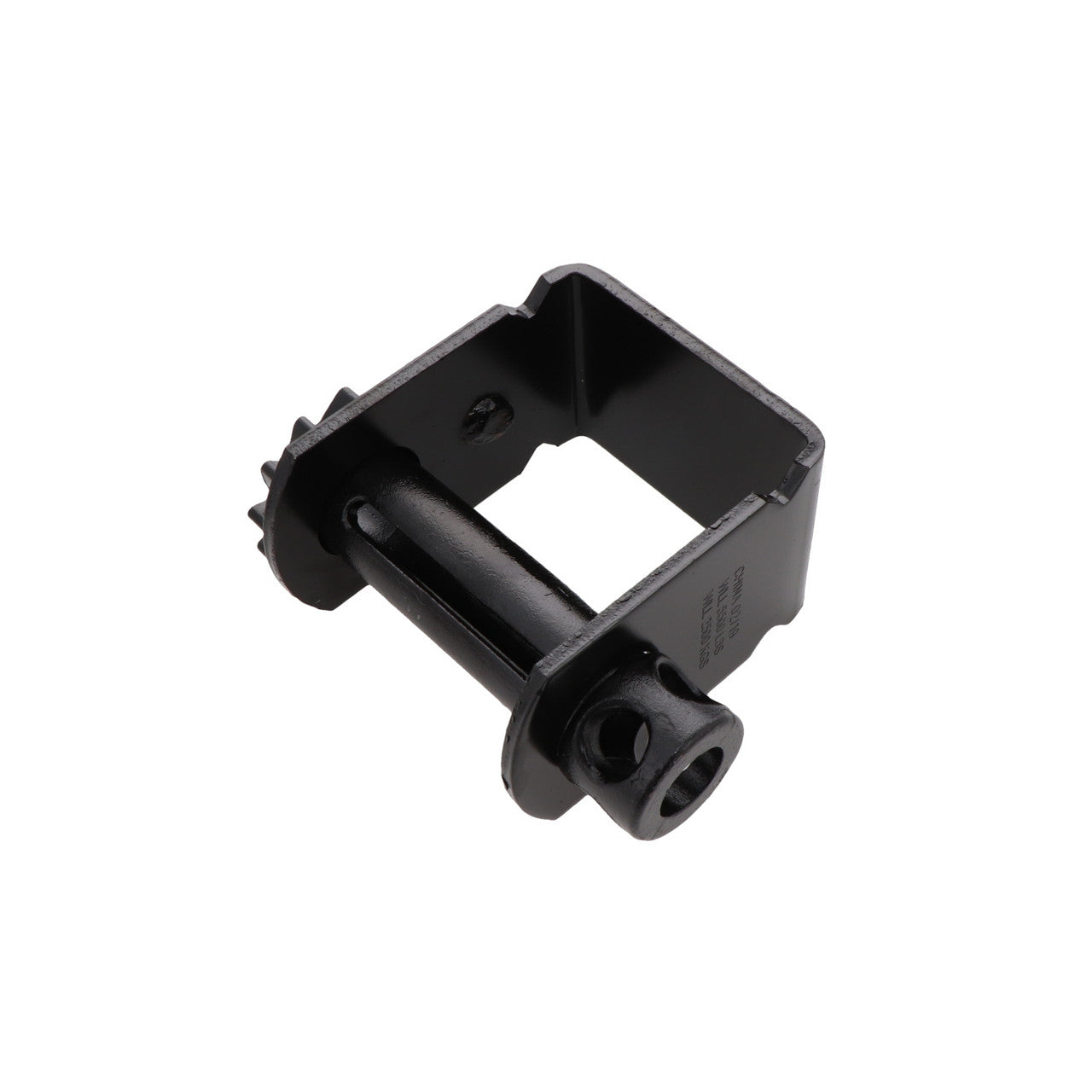

xKinedyne's Standard Sliding C Channel Winch gives your flatbed much needed flexibility when it comes to securing cargo. This Winch can move easily along the Winch Track and has a working load limit of 6,670 Lbs. / 3,025 Kgs.
Standard Sliding C Channel Winch
Looking for a solid and reliable method of securing cargo on a flatbed trailer or other type of vehicle? Looking for something that's easy to use to save you time securing your cargo? Well, you've found it with Kinedyne's industrial strength Standard Sliding C Channel Winch that has a working load limit of 6,670 Lbs. / 3,025 Kgs. to help you hold down your cargo securely.
This heat-treated carbon steel powder coated winch offers much needed versatility for your flatbed. The winch is designed to fit along the C Channel Winch Track where it can slide to whatever position you need for your tie down job. To make the job even easier, we've included an easy-to-access thumb pawl that firmly locks the sprocket for a reliable hold on the Winch Strap. The thumb pawl makes it easier to open and close the lock holding the sprocket in place.
Kinedyne has designed all of our winches to comply with WSTDA, CHP, Canadian 905, North American Cargo Securement standards, and DOT regulations. The country of origin, working load limit, and manufacture date are stamped on the winch in accordance to North American Regulations. Never use these winches as pulling or lifting devices.
Standard Sliding C Channel Winch – 3820SPC Quick Specs:
- Working Load Limit: 6,670 Lbs. / 3,025 Kgs.
- Height: 6.5 Inches
- Width: 4 Inches
- Length: 7.66 Inches
- Weight: 9.7 Lbs. / 4.4 Kgs.
- Storage Capacity (Webbing Length): 30 Feet Approximately
- Recommended Installation Instructions: View Instruction Manual Here
Specifications
xKinedyne Standard Sliding C Channel Winch - 3820SPC
Kinedyne's Standard Sliding C Channel Winch gives your flatbed much needed flexibility when it comes to securing cargo. This winch can move easily along the winch track and has a working load limit of 6,670 lbs / 3,025 kgs. The heat-treated carbon steel, powder-coated construction is designed for durability and compliance with North American cargo securement standards.
Technical Specifications
- Working Load Limit: 6,670 Lbs. / 3,025 Kgs.
- Height: 6.5 Inches
- Width: 4 Inches
- Length: 7.66 Inches
- Weight: 9.7 Lbs. / 4.4 Kgs.
- Storage Capacity (Webbing Length): Approximately 30 Feet
- Recommended Installation Instructions: View Instruction Manual Here
Common Applications
- Flatbed trailers for freight hauling
- Distribution and logistics equipment securement
- Industrial and factory transport operations
- Facility maintenance and equipment relocation
- General warehouse load securement
Safety and Stability
This winch is manufactured to comply with WSTDA, CHP, Canadian 905, North American cargo securement standards, and DOT regulations. Country of origin, working load limit, and manufacture date are stamped on the unit. Do not use for lifting or pulling.
Key Benefits
- High capacity: 6,670 lb working load limit for heavy cargo restraint
- Durable construction: heat-treated carbon steel with powder coat finish
- Sliding mobility: fits C channel winch track for flexible tie-down positioning
- Efficient operation: accessible thumb pawl for reliable sprocket locking
- Regulatory compliance: stamped markings and designed to meet applicable standards
Frequently Asked Questions
What is the working load limit?
The working load limit is 6,670 lbs (3,025 kgs).
Can this winch be used for lifting?
No. This winch is designed for cargo securement only and must not be used as a lifting or pulling device.
Ordering and Shipping
To purchase or request pricing for the Kinedyne Standard Sliding C Channel Winch - 3820SPC, contact Material Handling Canada or visit materialhandlingcanada.com for ordering, availability, and shipping information.
