Description
xOnce tension is applied, Kinedyne's sturdy Standard Sliding Double L 3-Bar Winch locks firmly in place. This winch with a working load limit of 5,000 Lbs. / 2,270 Kgs. and is the ideal winch for use in the winter months.

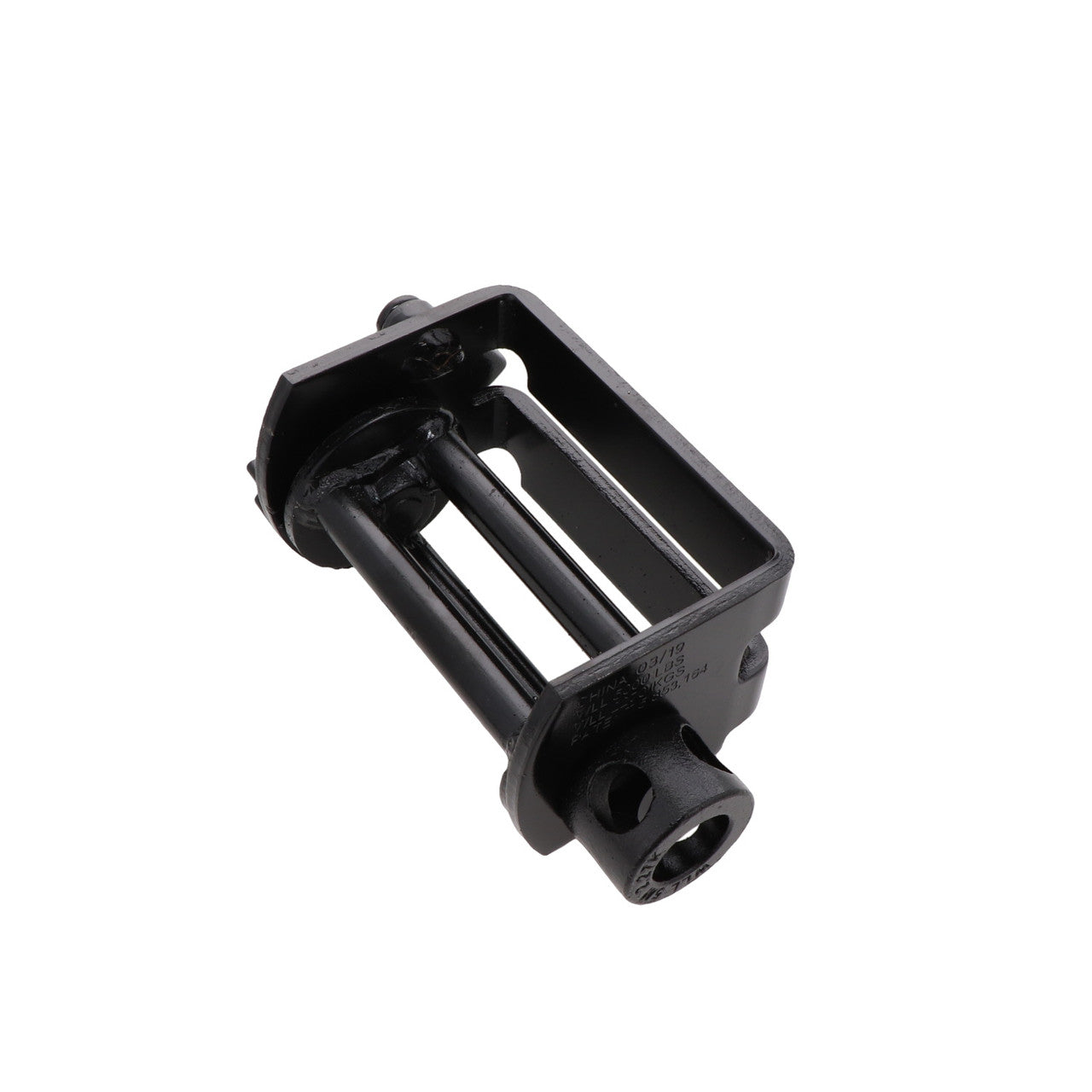

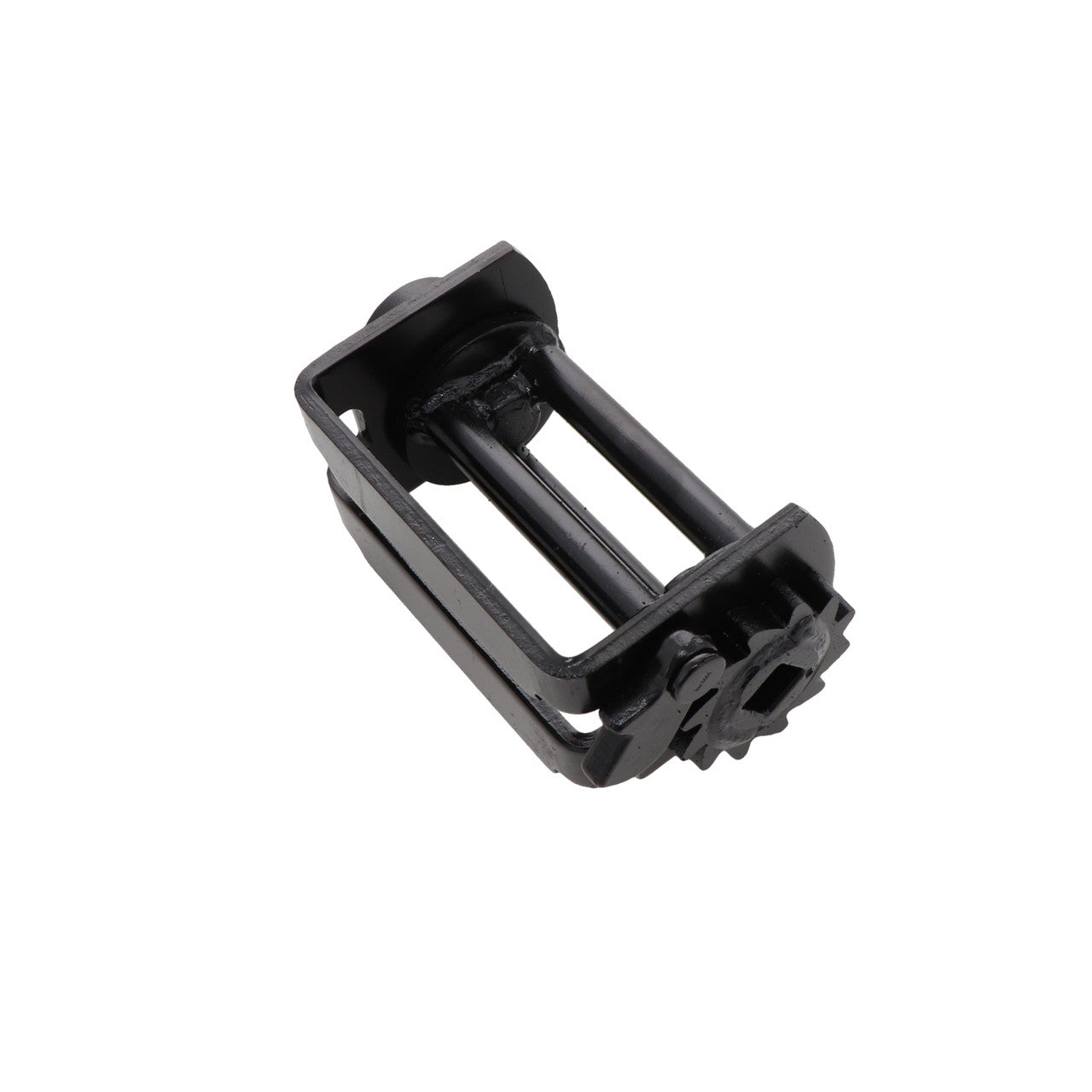

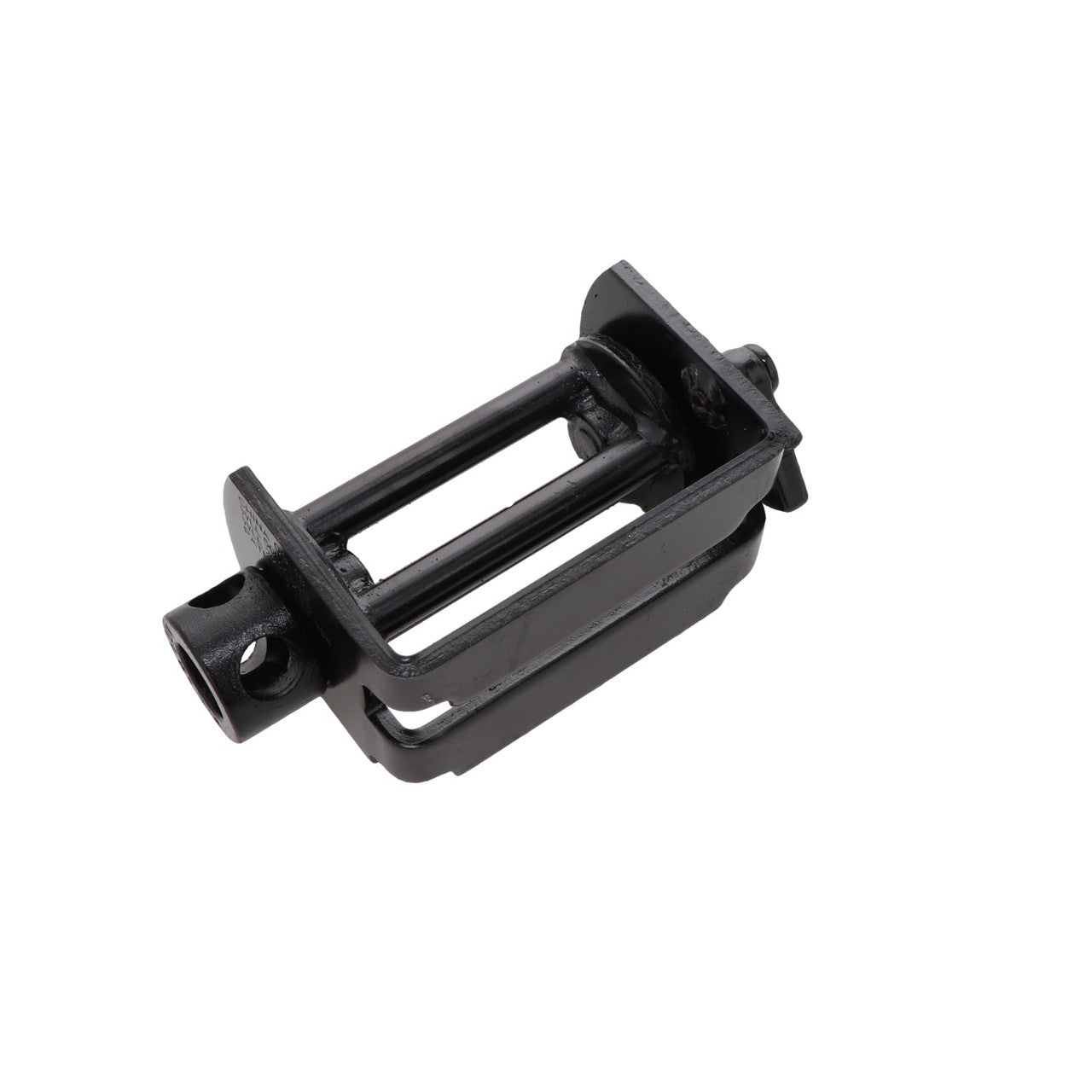

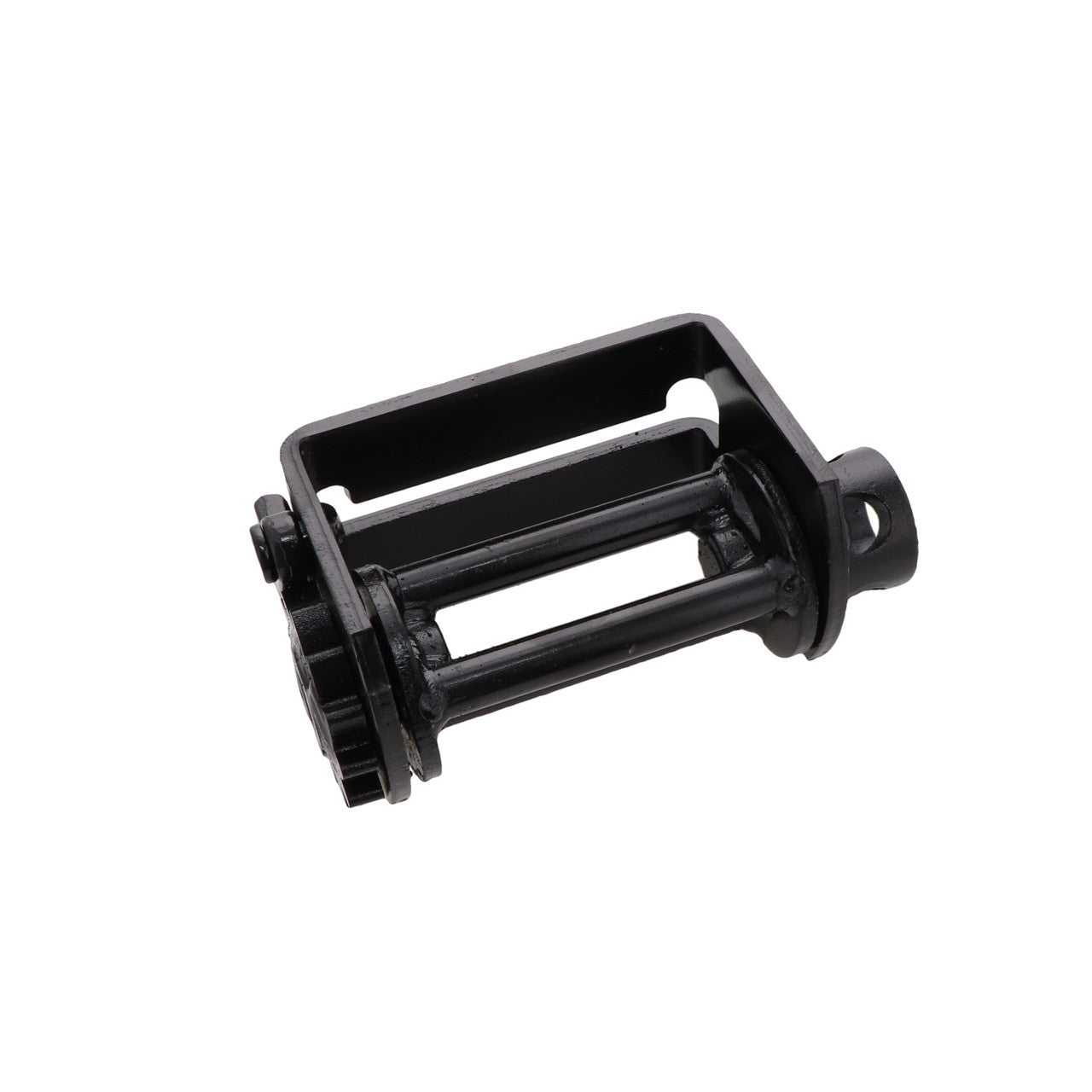

Standard Sliding Double L 3-Bar Winch
Do you have to secure some important cargo for a long haul and need a reliable tie down method that you can trust to get everything there in one piece? Our ideal solution is Kinedyne's Standard Sliding Double L 3-Bar Winch. Built for industrial strength, this winch is designed to handle a working load limit of 5,000 Lbs. / 2,270 Kgs. to help you easily secure your loads. Just combine our winch with one of our Winch Tracks to give yourself a more flexible tie down job. Since this winch is designed to slide smoothly along the Track, you have more versatility on choosing where exactly you want to secure your cargo.
Our Standard Sliding Double L 3-Bar Winch is designed to help make inserting and tightening the Winch Strap much easier. Even if the Strap is a bit frayed, it can still be fed quickly and securely through the winch. Ice that has built up along the frame also isn't a problem for this winch. Remember to not install this winch in a position where you can't see the pawl engagement or where you have to hold the pawl in order to engage the ratchet tooth.
Our winches are designed to meet North American Cargo Securement, WSTDA, CHP, and Canadian 905 standards and DOT regulations. They are stamped with the working load limit in pounds and kilograms, the manufactured date, and the country of origin in accordance to North American Regulations. Always be sure to inspect your winch before each use to ensure that the winch has not been damaged and is in proper working condition.
Standard Sliding Double L 3-Bar Winch – 10203B Quick Specs:
- Working Load Limit: 5,000 Lbs. / 2,270 Kgs.
- Height: 4.91 Inches
- Width: 3.94 Inches
- Length: 9.9 Inches
- Weight: 12.6 Lbs. / 5.7 Kgs.
- Storage Capacity (Webbing Length): 20 Feet Approximately
- Recommended Installation Instructions: View Instruction Manual Here
Specifications
xKinedyne Standard Sliding Double L 3-Bar Winch
Once tension is applied, Kinedyne's sturdy Standard Sliding Double L 3-Bar Winch locks firmly in place. This winch with a working load limit of 5,000 Lbs. / 2,270 Kgs. is designed for industrial strength and is particularly suited for winter use when reliable hold is required. Combine this sliding winch with compatible Winch Tracks to increase tie-down flexibility and position the winch where it best secures the cargo. The design facilitates feeding and tightening of winch webbing even when straps are worn or frames have ice accumulation. Do not install where pawl engagement cannot be visually confirmed or where the pawl must be held to engage the ratchet.
Winches meet North American Cargo Securement, WSTDA, CHP, Canadian 905 standards and DOT regulations. Each unit is stamped with working load limit in pounds and kilograms, manufacture date, and country of origin. Inspect the winch before each use to ensure it is undamaged and fully operational.
Technical Specifications
- Working Load Limit: 5,000 Lbs. / 2,270 Kgs.
- Height: 4.91 Inches
- Width: 3.94 Inches
- Length: 9.9 Inches
- Weight: 12.6 Lbs. / 5.7 Kgs.
- Storage Capacity (Webbing Length): 20 Feet Approximately
- Recommended Installation Instructions: View Instruction Manual Here
Common Applications
- Securing freight and palletized loads in commercial trucking and long-haul transport
- Fleet and trailer cargo restraint systems in distribution and logistics operations
- Warehouse load restraint where adjustable sliding tie-down points are required
- Industrial and facility maintenance operations requiring reliable cargo control
Safety and Stability
Use in accordance with manufacturer instructions and regulatory standards. Verify pawl engagement, check stamped WLL and manufacture date, and inspect for damage or corrosion prior to use. Do not install where engagement is not visible or where pawl must be held to engage.
Key Benefits
- High capacity: 5,000 lb working load limit for heavy cargo securement
- Durable construction for winter and industrial environments
- Sliding design provides mobility along compatible Winch Tracks for flexible tie-down placement
- Efficient strap insertion and tightening even with worn webbing
- Regulatory compliance: meets North American cargo securement standards
Frequently Asked Questions
What is the working load limit?
The winch has a working load limit of 5,000 Lbs. / 2,270 Kgs.
Can this winch be used on Winch Tracks?
Yes. The Standard Sliding Double L 3-Bar Winch is designed to slide along compatible Winch Tracks to provide adjustable tie-down points.
Ordering and Shipping
To purchase or request a quote for the Kinedyne Standard Sliding Double L 3-Bar Winch, contact Material Handling Canada. Visit materialhandlingcanada.com or contact our sales team for availability, lead times, and shipping details to supply your fleet or facility.
