Description
xKinedyne's Standard Weld-On Winch is designed to provide the ultimate strength and durability. With a working load limit of 6,670 Lbs. / 3,000 Kgs., you can easily secure nearly any type of load using our Standard Weld-On Winch.

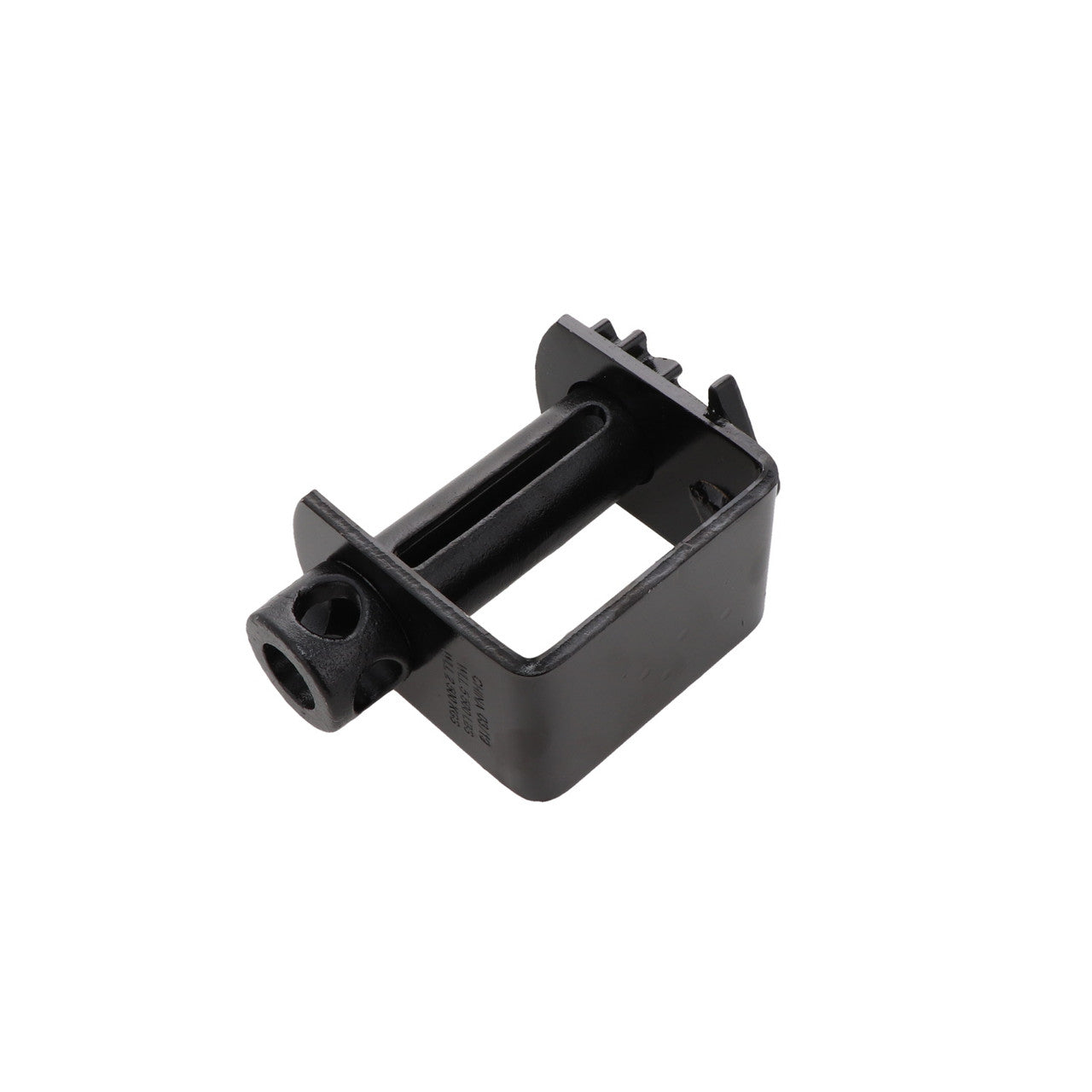

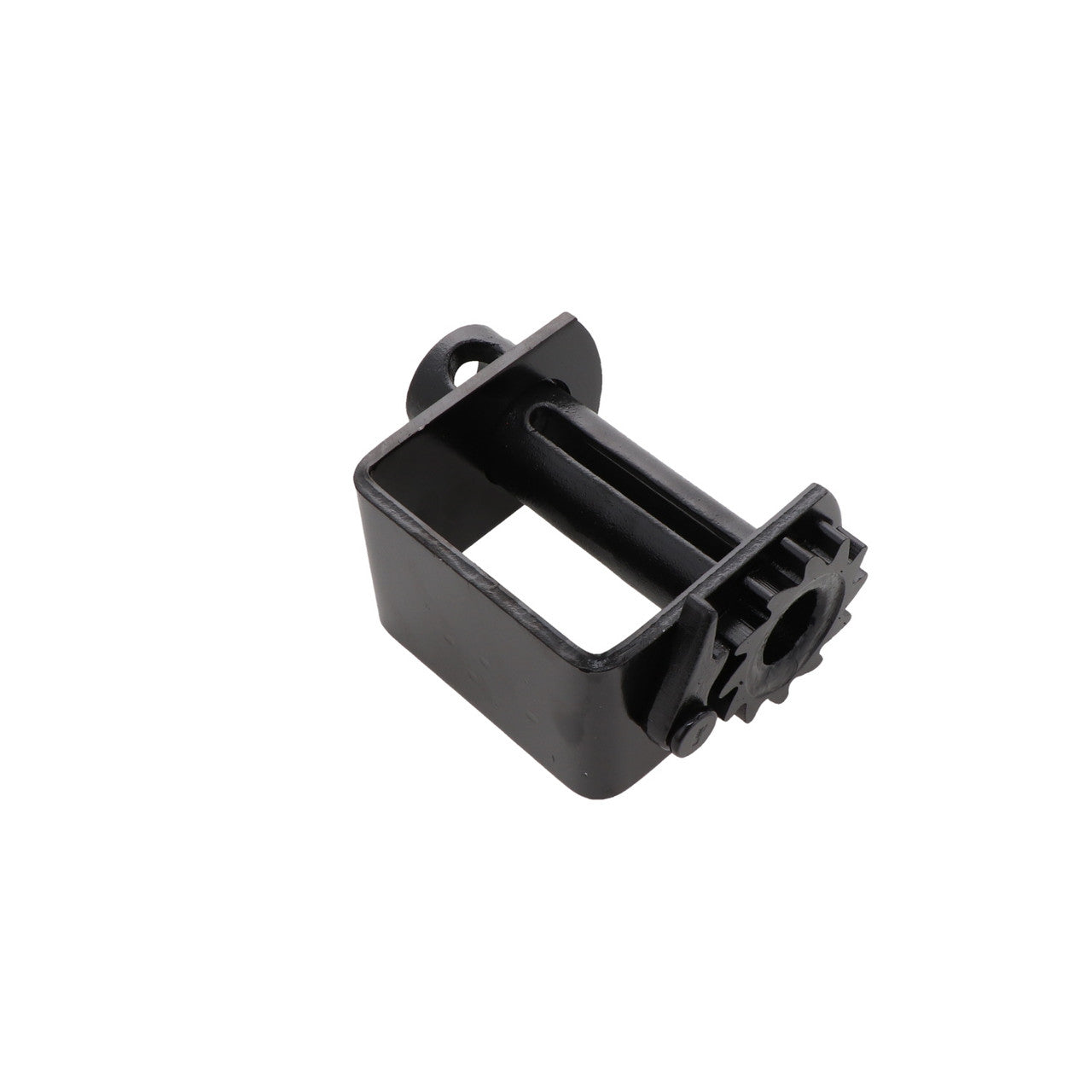

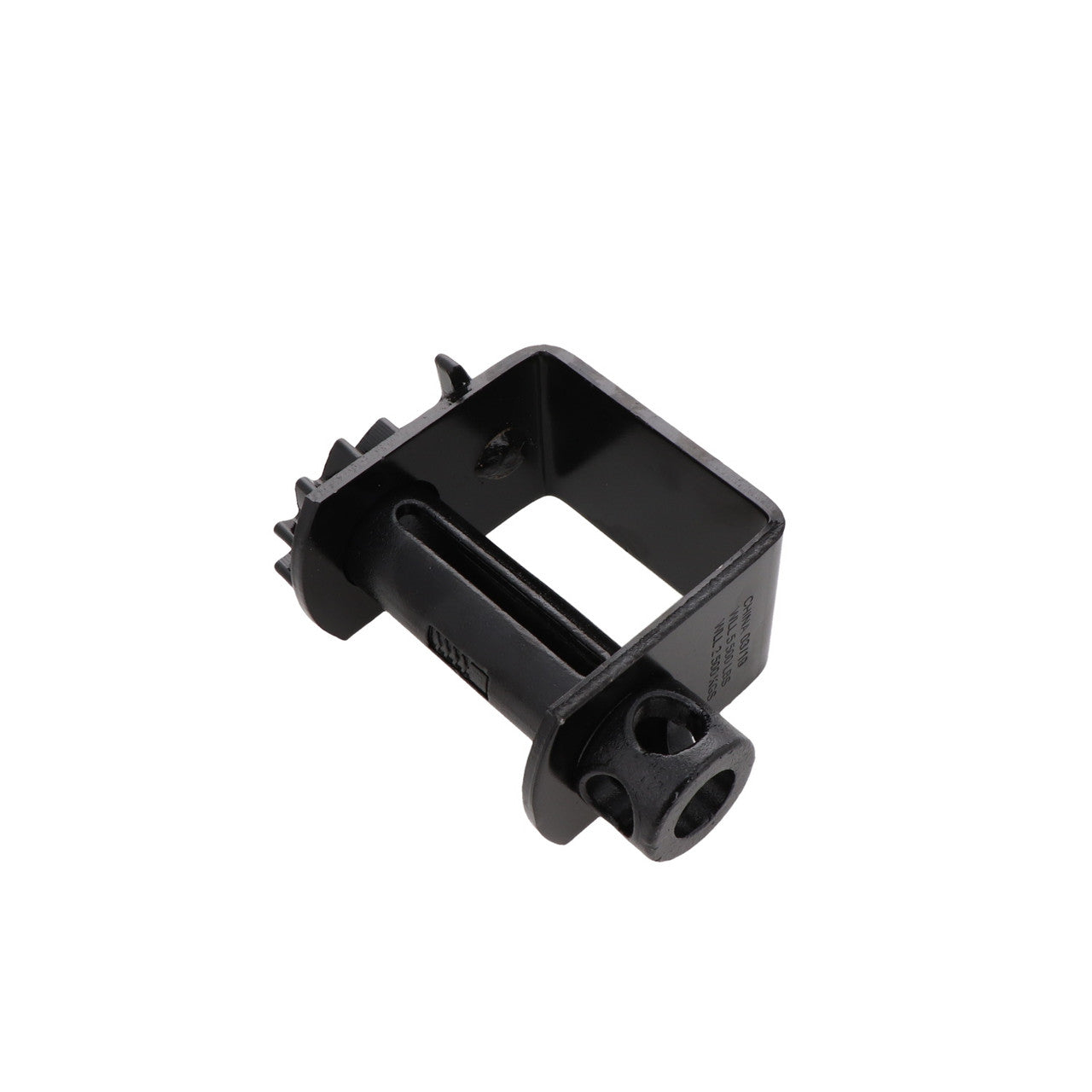

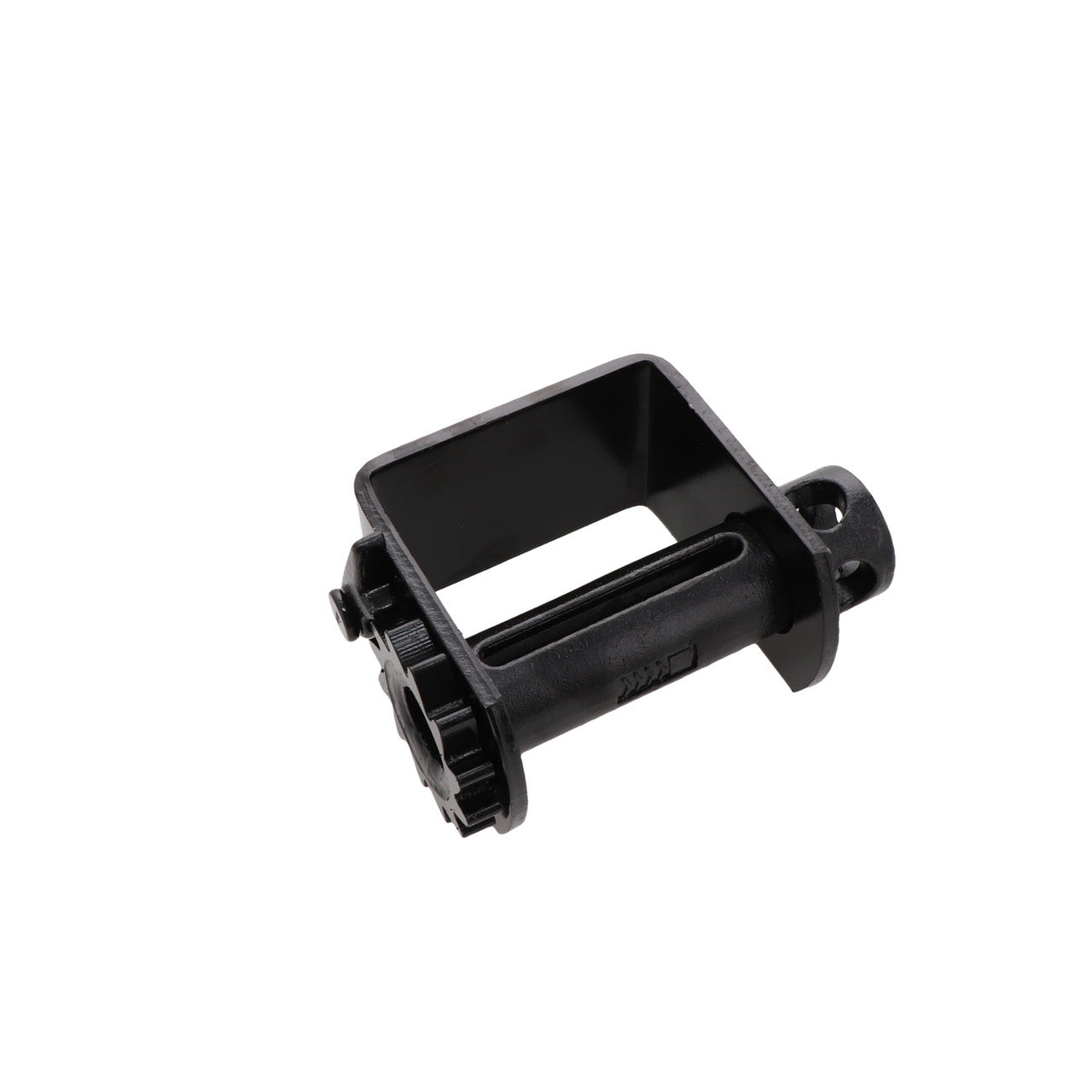

Standard Weld-On Winch
Kinedyne's Standard Weld-On Winch is an essential component for the ideal cargo securement assembly. With a working load limit of 6,670 Lbs. / 3,000 Kgs., this heat-treated carbon steel winch can easily and efficiently secure nearly any kind of load while giving you complete control over the tensioning. Take it from the Cargo Control People, we know how to help you control your cargo.
This Standard Winch is for bottom mounting only. Once you've welded our Standard Weld-On Winch to your trailer, go ahead and slip your winch strap through the slot and use one of our sturdy winch bars to operate the winch. You'll see just how smoothly our winch makes the winch straps tightly grip your valuable cargo for optimal security.
With a storage capacity of about 20 feet, our powder coat painted Standard Weld-On Winch can be used with up to 4 inches of any of our Kinedyne Winch Straps for a powerful combination of strength, security, and durability. This winch is also designed with our extended thumb pawl, which offers easier access to operating the lock that holds the webbing in place.
All winches are designed to meet the requirements of the DOT, CHP, Canadian 905, North American Cargo Securement, and WSTDA regulations and standards. The manufactured date, country of origin, and working load limit are stamped on the winch's frame in accordance to North American Regulations. All of our winches are produced as right-hand models.
Standard Weld-On Winch – 1820 Quick Specs:
- Working Load Limit: 6,670 Lbs. / 3,000 Kgs.
- Height: 5.51 Inches
- Width: 3.54 Inches
- Length: 7.82 Inches
- Weight: 7.80 Lbs. / 3.5 Kgs.
- Storage Capacity (Webbing Length): 20 Feet Approximately
- Recommended Installation Instructions: View Instruction Manual Here
Specifications
xKinedyne Standard Weld-On Winch
Kinedyne's Standard Weld-On Winch is designed to provide strength and durability for industrial cargo securement. With a working load limit of 6,670 Lbs. / 3,000 Kgs., this heat-treated carbon steel, powder coat painted winch provides controlled tensioning and storage for up to approximately 20 feet of webbing and is intended for bottom mounting.
Technical Specifications
- Working Load Limit: 6,670 Lbs. / 3,000 Kgs.
- Height: 5.51 Inches
- Width: 3.54 Inches
- Length: 7.82 Inches
- Weight: 7.80 Lbs. / 3.5 Kgs.
- Storage Capacity (Webbing Length): 20 Feet Approximately
- Recommended Installation Instructions: View Instruction Manual Here
Common Applications
- Trailer and flatbed cargo securement
- Distribution and transportation fleets
- Warehouse and logistics operations
- Industrial material handling and loading
- Facility maintenance and equipment transport
Safety and Stability
The winch is manufactured to meet DOT, CHP, Canadian 905, North American Cargo Securement, and WSTDA regulations. Manufactured date, country of origin, and working load limit are stamped on the frame. All models are right-hand and intended for welded bottom mounting to ensure stable attachment.
Key Benefits
- High capacity: 6,670 Lbs. / 3,000 Kgs. working load limit for heavy cargo
- Durability: Heat-treated carbon steel construction with powder coat finish
- Efficient operation: Extended thumb pawl for easier locking and tension control
- Compact storage: Approximately 20 ft webbing storage capacity
- Compliance: Built to North American regulatory standards for cargo securement
Frequently Asked Questions
Q: What is the storage capacity for webbing?
A: Approximately 20 feet of webbing storage capacity when using compatible Kinedyne winch straps up to 4 inches.
Q: How is the winch mounted?
A: The Standard Weld-On Winch is designed for bottom welding to the trailer or mounting surface and is a right-hand model.
