Description
xOur Galvanized Storable Sliding Double L Winch is designed to handle nearly any tie down job with a working load limit of 6,670 Lbs. / 3,000 Kgs. with great efficiency. Once installed, you'll be able to experience reliable security.

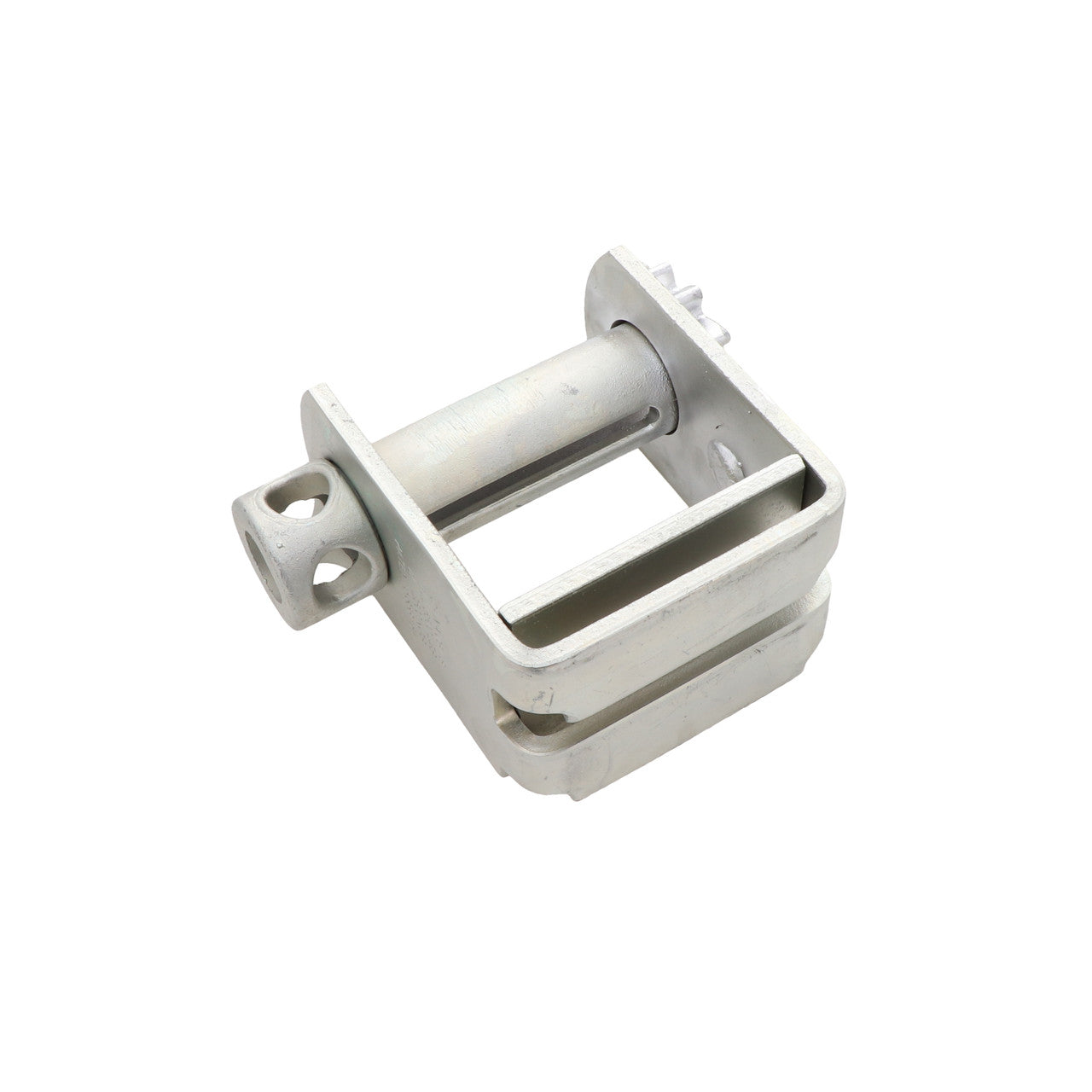

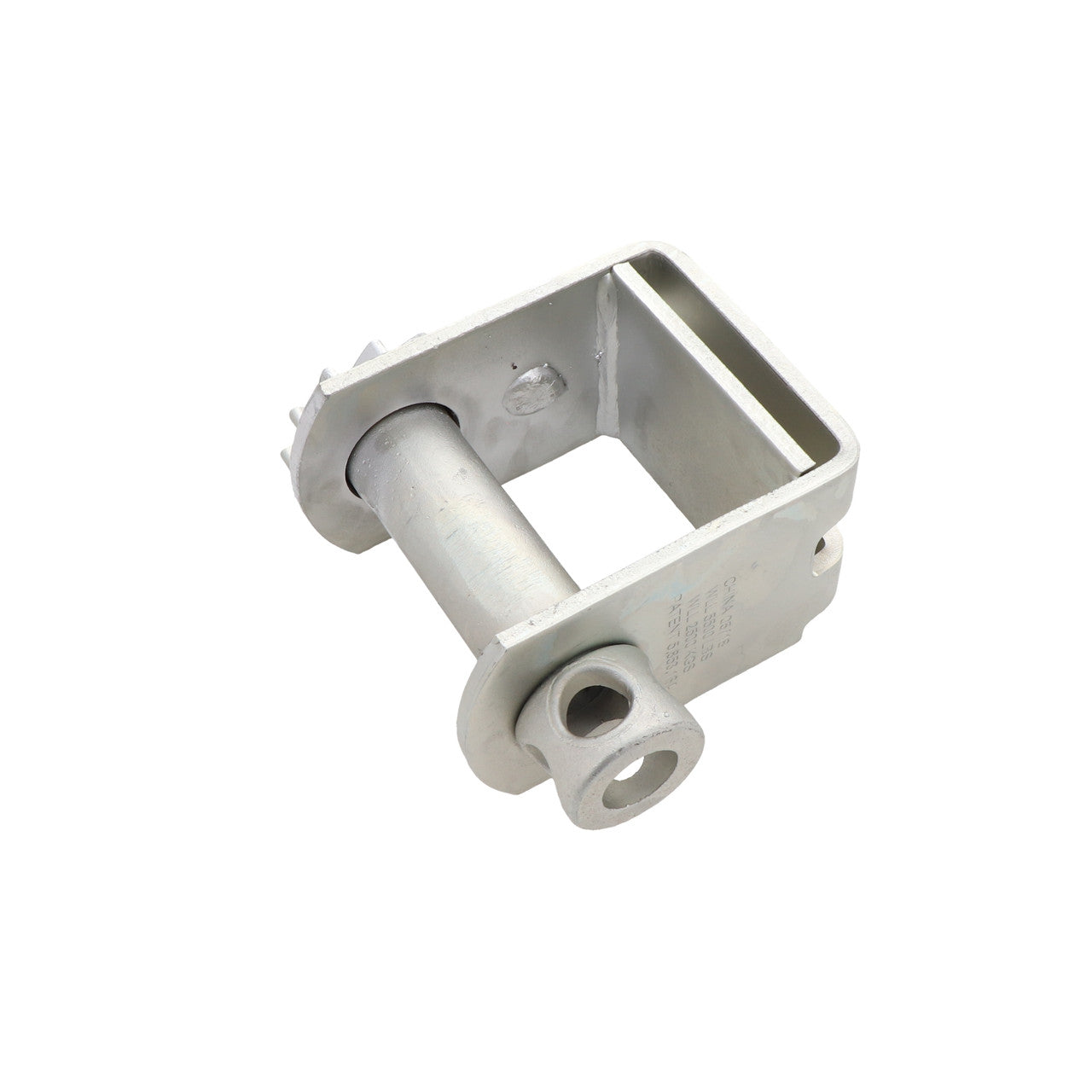

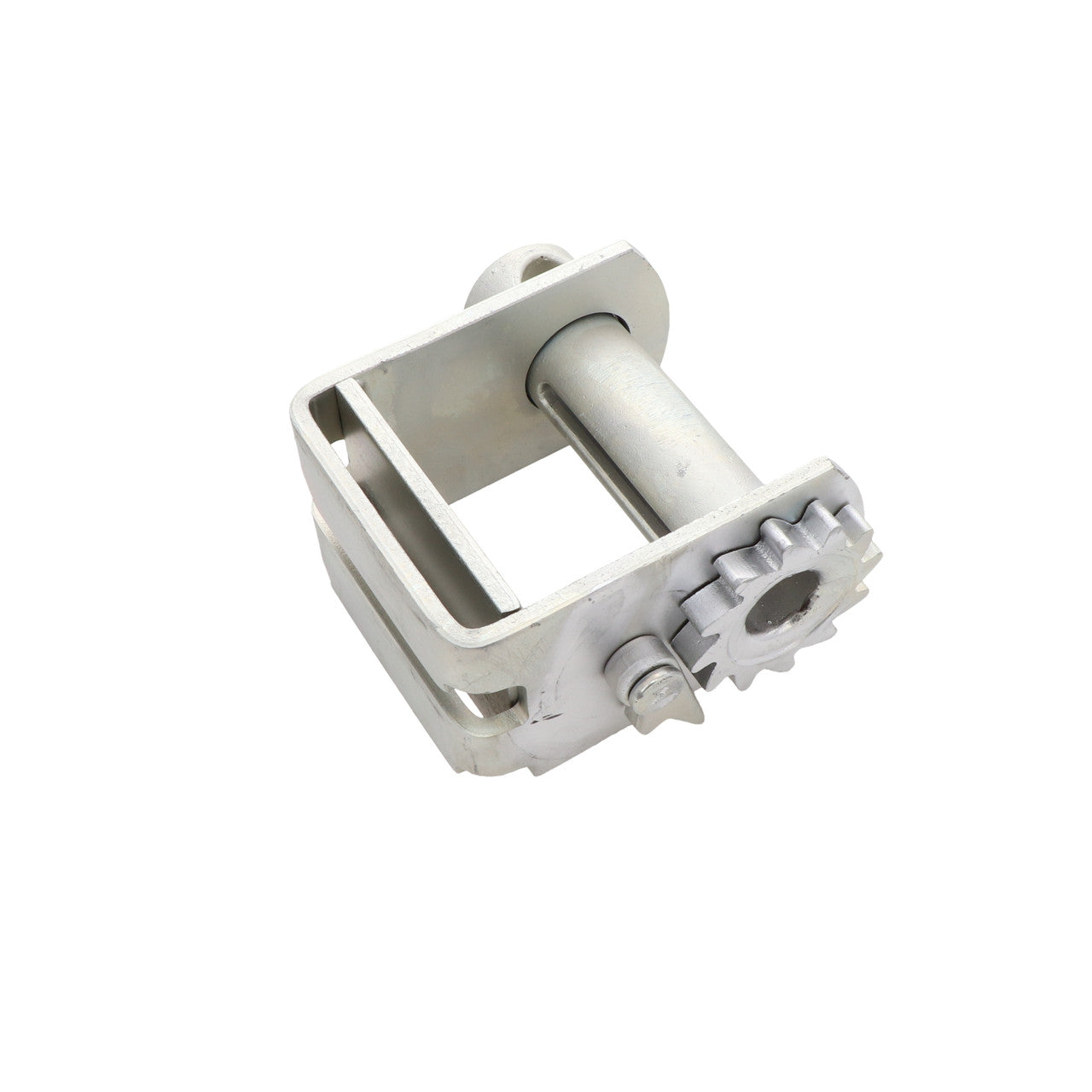

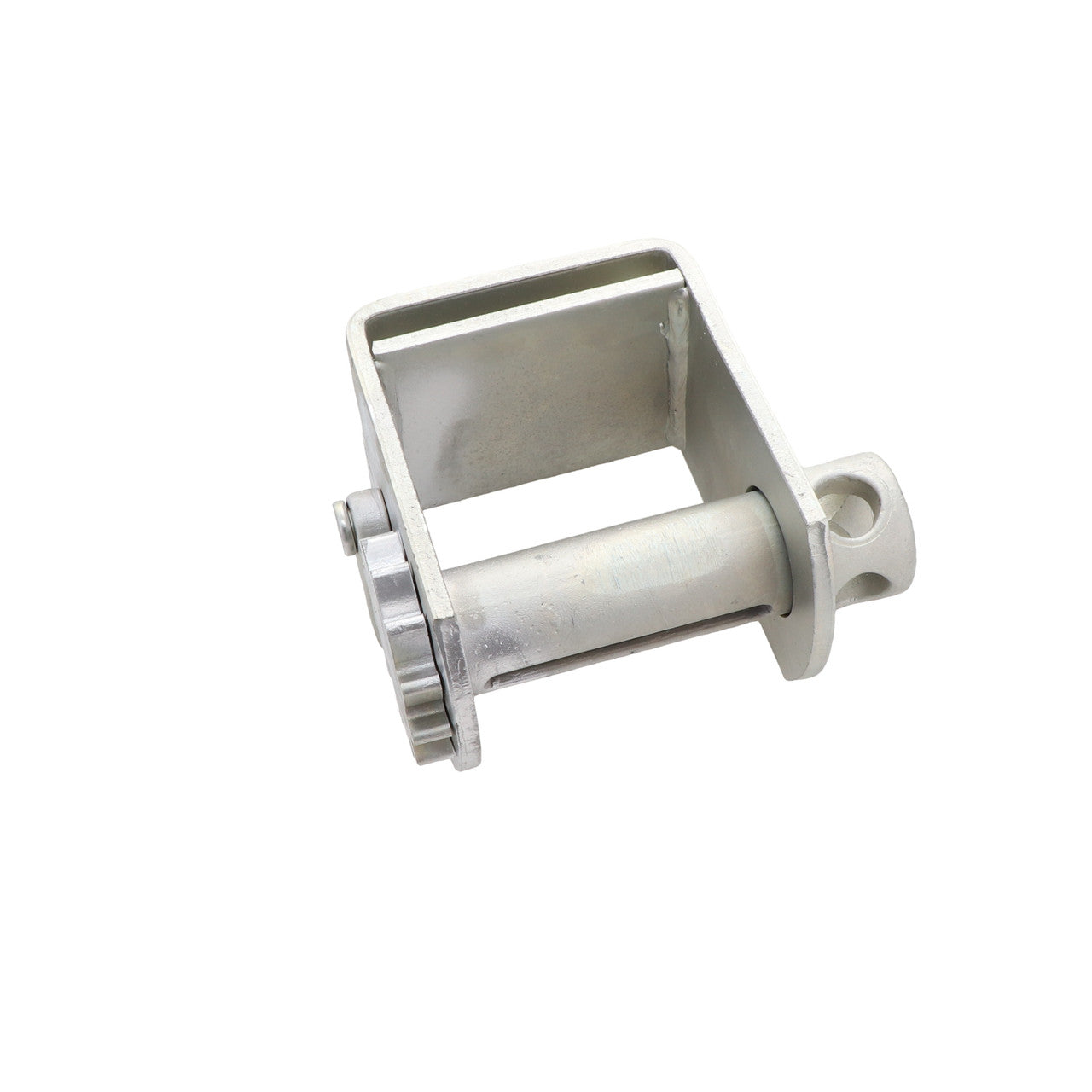

Storable Galvanized Sliding Double L Winch
Do you need a strong, reliable method to successfully and efficiently secure your important cargo to the back of your flatbed trailer? That's exactly what you get with the combined strength and durability of Kinedyne's Galvanized Storable Sliding Double L Winch that has an impressive working load limit of 6,670 Lbs. / 3,000 Kgs. Once you've installed this winch to the appropriate Winch Track, you'll be able to smoothly slide the winch along to exactly where you need it. This particular winch also lets you store up to 30 feet of excess webbing so that it's no longer in the way or getting rolled over by the trailer.
Tension can be easily applied to the Strap through the use of one of our Winch Bars. Note that the use of any unspecified leverage increase device, such as a cheater bar, can generate enough force to break a piece of the winch, potentially causing damage and injury. Once you're done using our heat-treated carbon steel Galvanized Storable Sliding Double L Winch, you'll be able to lock the sprocket with our handy thumb pawl that's easy to reach.
All of Kinedyne's winches meet the regulations, standards, and guidelines of the DOT, Canadian 905, WSTDA, CHP, and North American Cargo Securement. These winches are also stamped with their manufactured date, country of origin, and working load limit in accordance to North American Regulations. Remember that this winch is for securement applications only and is not to be used as a pulling or lifting device.
Storable Galvanized Sliding Double L Winch – 1020SG Quick Specs:
- Working Load Limit: 6,670 Lbs. / 3,000 Kgs.
- Height: 6.89 Inches
- Width: 3.94 Inches
- Length: 8.5 Inches
- Weight: 11.2 Lbs. / 5.1 Kgs.
- Storage Capacity (Webbing Length): 30 Feet Approximately
- Recommended Installation Instructions: View Instruction Manual Here
Specifications
xKinedyne Storable Galvanized Sliding Double L Winch
Our Galvanized Storable Sliding Double L Winch is designed to handle nearly any tie down job with a working load limit of 6,670 Lbs. / 3,000 Kgs with great efficiency. Once installed, you'll be able to experience reliable security. Installed to an appropriate winch track, the winch slides smoothly to position and stores up to 30 feet of excess webbing to keep webbing out of the way and off the trailer deck.
Tension is applied via an approved winch bar; use of unspecified leverage-increase devices may damage the winch and create risk of injury. The heat-treated carbon steel winch includes a thumb pawl to lock the sprocket for securement. These winches meet DOT, Canadian 905, WSTDA, CHP, and North American cargo securement standards and are stamped with manufacture date, country of origin, and working load limit. This product is intended for cargo securement only, not for pulling or lifting.
Technical Specifications
- Working Load Limit: 6,670 Lbs. / 3,000 Kgs.
- Height: 6.89 Inches
- Width: 3.94 Inches
- Length: 8.5 Inches
- Weight: 11.2 Lbs. / 5.1 Kgs.
- Storage Capacity (Webbing Length): Approximately 30 Feet
- Recommended Installation Instructions: View Instruction Manual Here
Common Applications
- Flatbed trailer cargo securement for transportation and logistics
- Fleet operations and truckload distribution
- Warehouse and distribution center shipping and staging
- Industrial facility and maintenance load tie-downs
Safety and Stability
Use only approved winch bars and follow the manufacturer installation and operation manual. The device is rated for securement only; do not use for lifting or pulling. Regular inspection and maintenance per DOT and WSTDA guidelines preserve performance and safety.
Key Benefits
- High capacity: 6,670 lb working load limit for heavy cargo securement
- Durable construction: heat-treated carbon steel with galvanized finish for corrosion resistance
- Mobility: sliding design mounts to winch track for adjustable positioning
- Efficiency: stores approximately 30 ft of webbing to reduce deck hazards
- Safety: thumb pawl sprocket lock and regulatory compliance markings
Frequently Asked Questions
Is this winch compliant with North American cargo securement standards?
Yes. The winch meets DOT, Canadian 905, WSTDA, CHP, and North American cargo securement regulations and is stamped with manufacture date, origin, and WLL.
Can this winch be used for lifting or recovery?
No. It is designed and rated only for cargo securement; do not use for lifting or pulling.
Ordering and Shipping
To order or request pricing and availability, contact Material Handling Canada through materialhandlingcanada.com. Our team can assist with lead times, shipping options, and bulk supply for fleet and industrial procurement.
