xKinedyne's Weld-On Standard "C" Hook is constructed with the strength to handle a working load limit of 6,670 Lbs. / 3,025 Kgs.

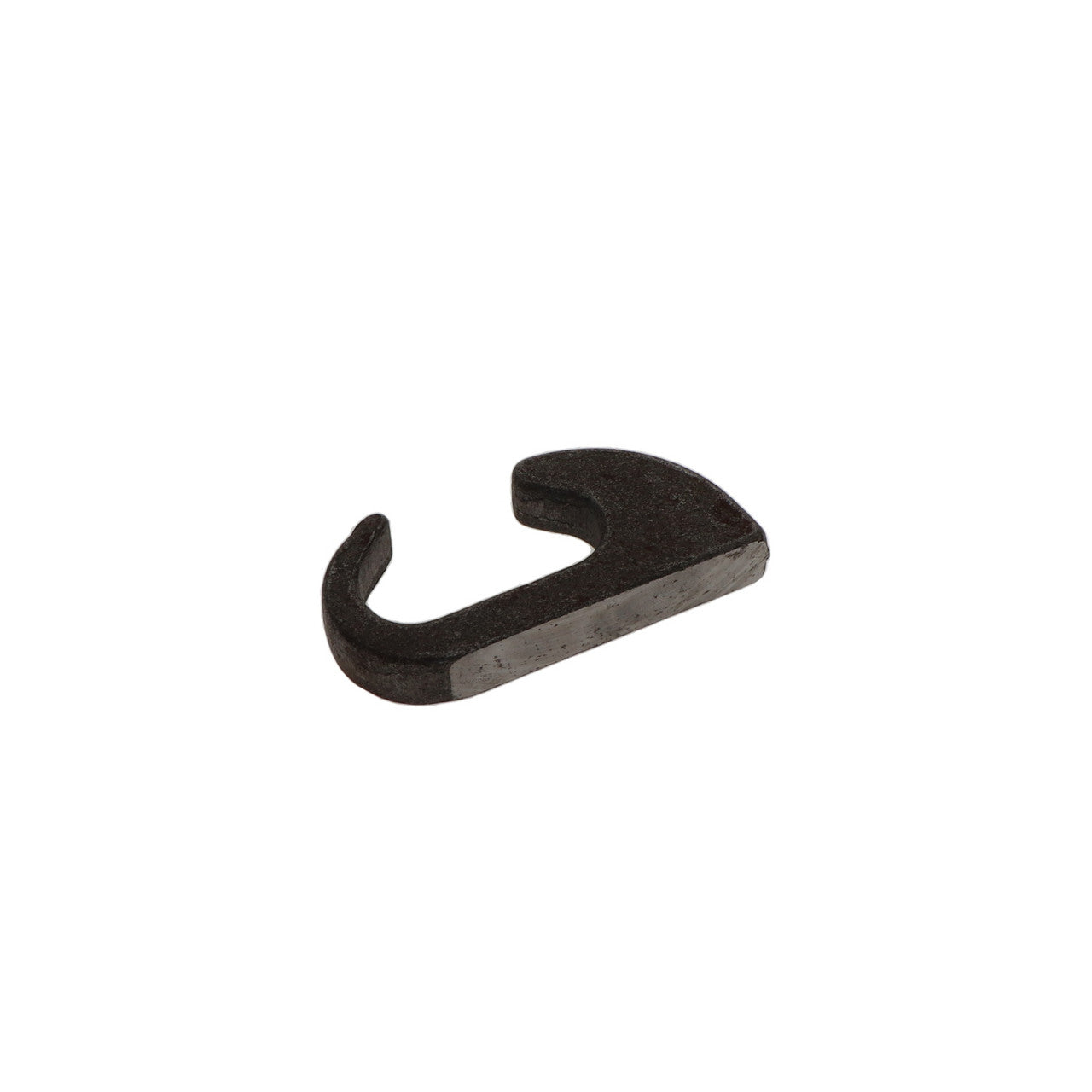

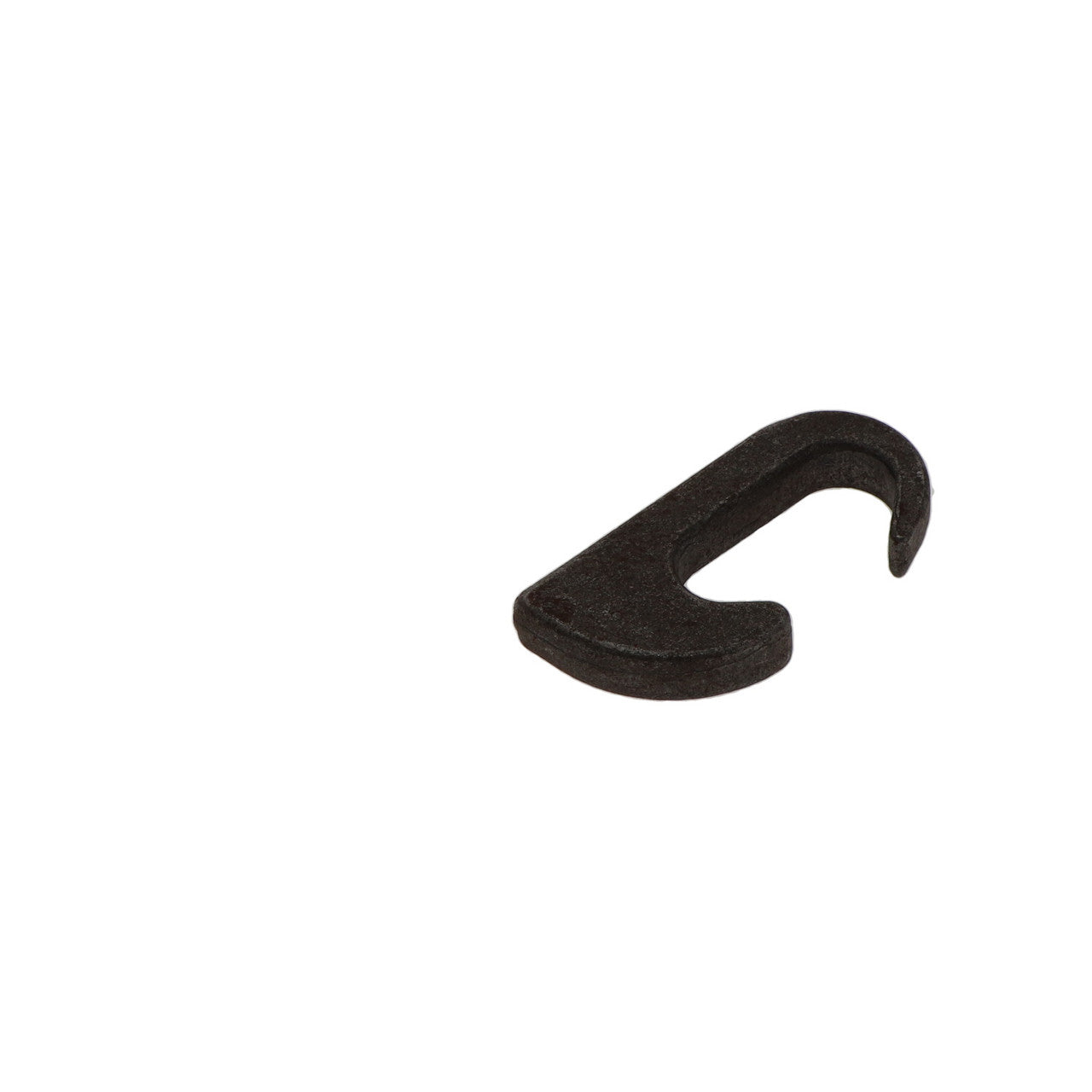

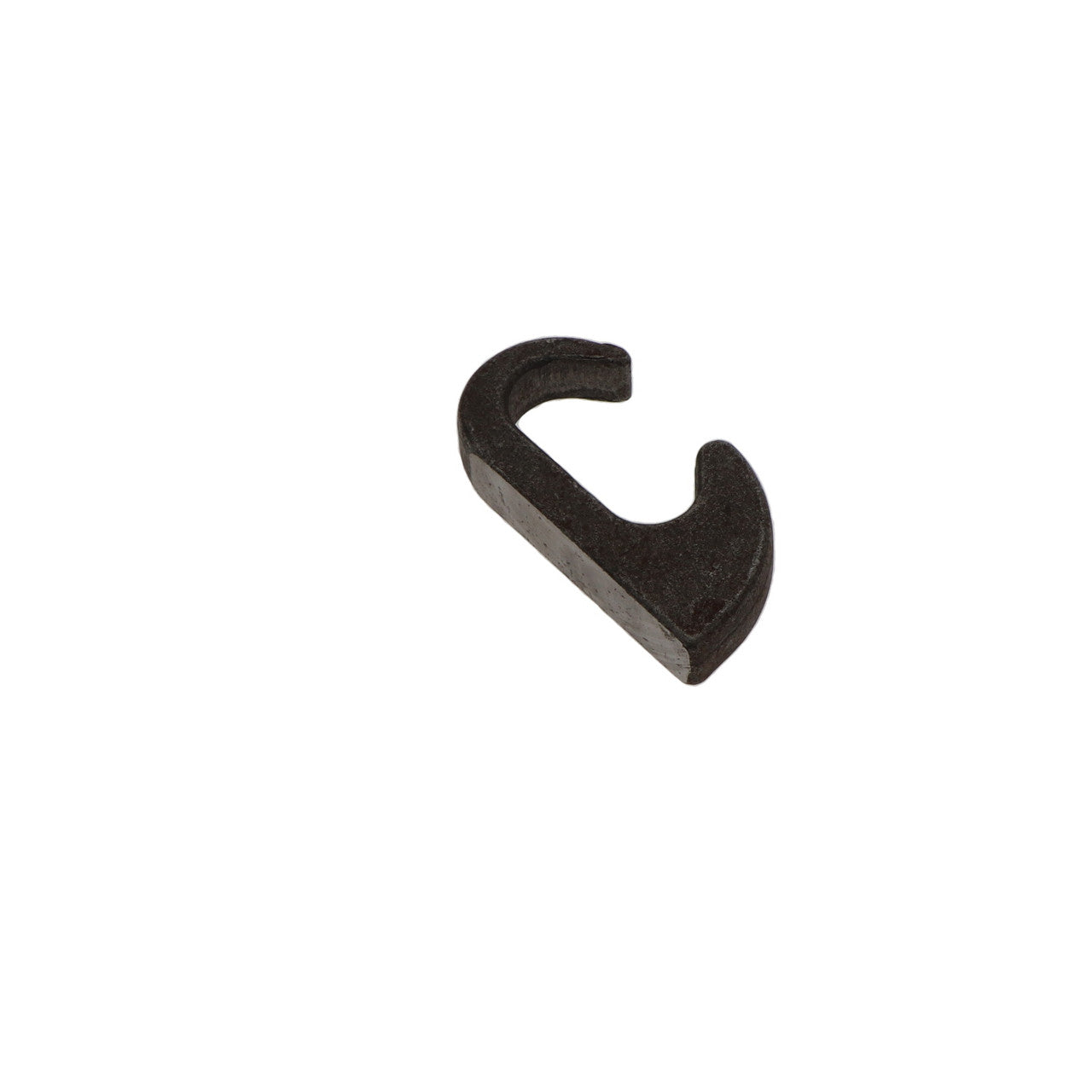

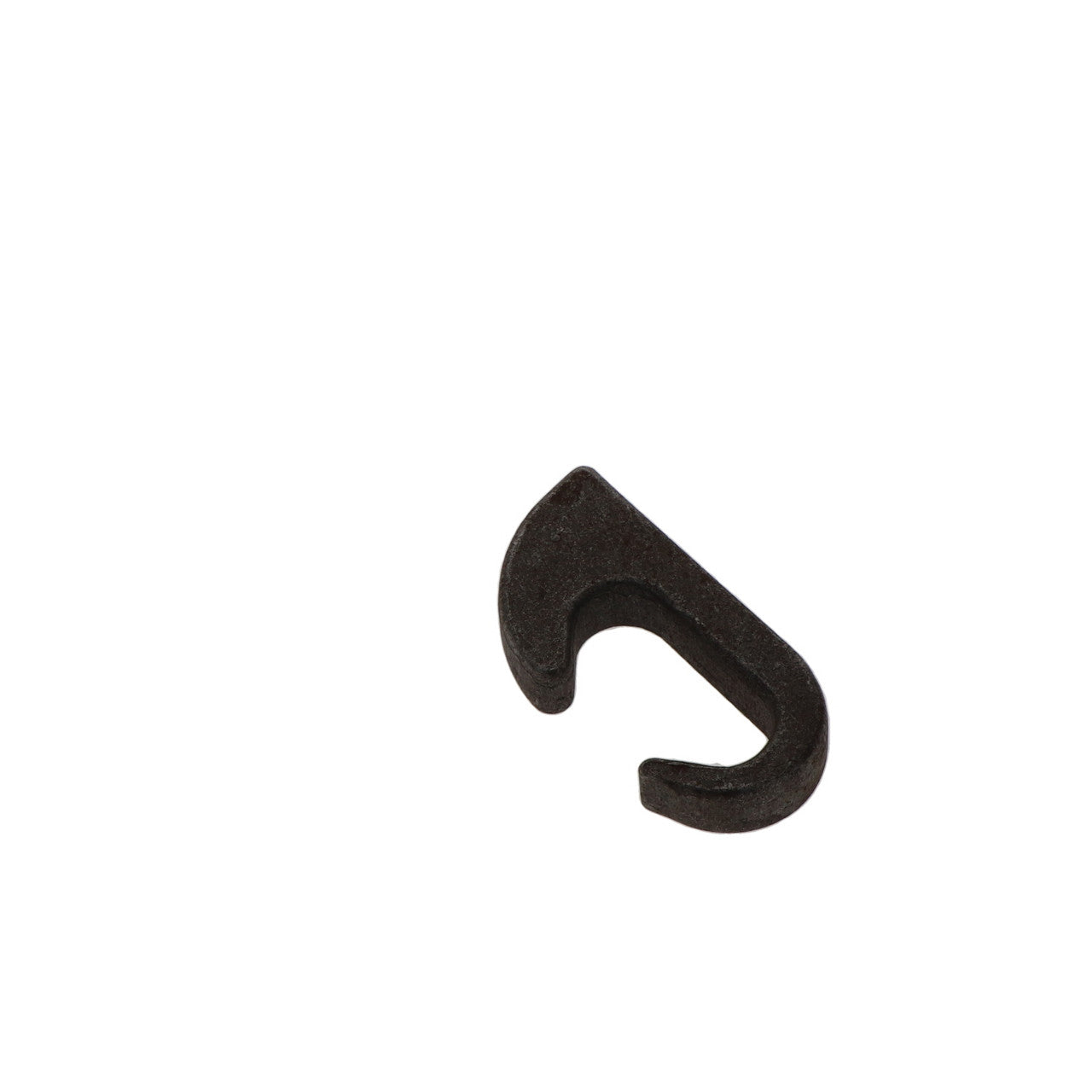

Weld-On Standard "C" Hook
For anyone looking for the right hook to combine with their Delta Ring on their Delta Ring Winch and Ratchet Straps that has the enduring strength to easily handle a working load limit of 6,670 Lbs. / 3,025 Kgs., it's right here waiting for you. Kinedyne's Weld-On Standard "C" Hook is manufactured using flamed cut 5/8-inch steel to give you the kind of durability and strength you need to reliably handle your heavy-duty tie-down jobs. Thanks to the versatility of our "C" Hook, you can weld this hook to the side of your trailer for the ideal tie-down point.

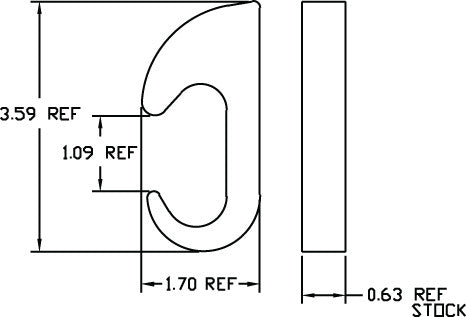

Weld-On Standard "C" Hook – 10002 Quick Specs:
- Working Load Limit: 6,670 Lbs. / 3,025 Kgs.
- Overall Height of Hook: 3.59 Inches
- Overall Depth of Hook: 1.70 Inches
- Overall Width of Hook: 5/8 Inch
- Opening Height of Hook: 1.09 Inches
- Inside Depth of Hook: 1.22 Inches
- Weight: 0.52 Lbs. / 0.24 Kgs.
Specifications
xKinedyne Weld-On Standard C Hook
Kinedyne's Weld-On Standard "C" Hook is constructed with the strength to handle a working load limit of 6,670 Lbs. / 3,025 Kgs. Manufactured using flamed cut 5/8-inch steel, this weld-on "C" Hook is designed for durability and can be welded to the side of a trailer to provide a fixed tie-down point compatible with Delta Ring winch and ratchet strap systems.
Technical Specifications
- Working Load Limit: 6,670 Lbs. / 3,025 Kgs.
- Overall Height of Hook: 3.59 Inches
- Overall Depth of Hook: 1.70 Inches
- Overall Width of Hook: 5/8 Inch
- Opening Height of Hook: 1.09 Inches
- Inside Depth of Hook: 1.22 Inches
- Weight: 0.52 Lbs. / 0.24 Kgs.
Common Applications
- Trailer tie-down points for transportation and logistics
- Fleet vehicle and equipment securement in distribution operations
- Fixed anchor point installation in warehouse and industrial facilities
- Maintenance and repair shops requiring durable welded anchors
Safety and Stability
Use only within rated working load limit and follow OEM welding procedures and industry safe-working-load practices. Regularly inspect welds and hook surfaces for damage, deformation, or corrosion to maintain secure, stable tie-down performance.
Key Benefits
- High capacity: 6,670 lb (3,025 kg) working load limit for demanding loads
- Durable construction: flamed cut 5/8-inch steel for long service life
- Fixed mounting: weld-on design provides a permanent, stable anchor point
- Compatibility: designed to work with Delta Ring winch and ratchet strap systems
- Compact and lightweight: minimal added weight while providing strong tie-down capability
Frequently Asked Questions
Can this hook be welded directly to trailer side rails?
Yes. The Weld-On Standard "C" Hook is designed to be welded to trailer side rails; welding should follow approved welding procedures and be performed by qualified personnel.
What is the working load limit and inspection frequency?
The working load limit is 6,670 Lbs (3,025 Kgs). Inspect before each use and perform periodic detailed inspections per your facility's safety protocol.
Ordering and Shipping
To purchase or request bulk pricing for the Kinedyne Weld-On Standard C Hook, contact Material Handling Canada through materialhandlingcanada.com for ordering, availability, and shipping options.
