Description
xKinedyne's Weld-On Standard "J" Hook is designed to fit flat on your truck for easy welding and can handle a working load limit of 6,670 Lbs. / 3,025 Kgs.
Weld-On Standard "J" Hook
Strength is what we know, and strength is what we give. Able to handle a working load limit of 6,670 Lbs. / 3,025 Kgs., our 5/8-inch steel Standard "J" Hook is designed to fit flat against your trailer so it can be easily welded on, giving you an anchor point that's strong enough to help you secure your heavy-duty loads. Note that minimum welding requirements are 1/4" fillet weld, around entire contact surface, and 1/8" penetration. Always be sure to check that the "J" Hook is attached to a securing point of equal or greater strength to maintain the established working load limit.

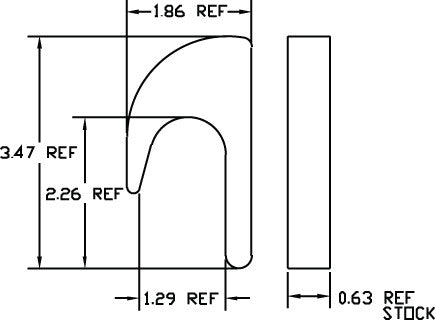

Weld-On Standard "J" Hook – 10003 Quick Specs:
- Working Load Limit: 6,670 Lbs. / 3,025 Kgs.
- Overall Height of Hook: 3.47 Inches
- Overall Depth of Hook: 1.86 Inches
- Overall Width of Hook: 5/8 Inch
- Opening Height of Hook: 1.29 Inches
- Inside Depth of Hook: 1.29 Inches
- Weight: 0.5 Lbs. / 0.23 Kgs.
Specifications
xKinedyne Weld-On Standard J Hook
Kinedyne's Weld-On Standard "J" Hook is designed to fit flat on your truck for easy welding and can handle a working load limit of 6,670 Lbs. / 3,025 Kgs. The 5/8-inch steel Standard "J" Hook mounts flat against trailers for straightforward welding; minimum welding requirements are a 1/4" fillet weld around the entire contact surface with 1/8" penetration. Always verify attachment to a securing point of equal or greater strength to maintain the rated working load limit.
Technical Specifications
- Working Load Limit: 6,670 Lbs. / 3,025 Kgs.
- Overall Height of Hook: 3.47 Inches
- Overall Depth of Hook: 1.86 Inches
- Overall Width of Hook: 5/8 Inch
- Opening Height of Hook: 1.29 Inches
- Inside Depth of Hook: 1.29 Inches
- Weight: 0.5 Lbs. / 0.23 Kgs.
Common Applications
- Truck and trailer tie-downs in transportation and distribution fleets
- Warehouse load securement for palletized and oversized cargo
- Industrial and manufacturing material handling anchor points
- Facility maintenance and retrofit applications requiring welded anchors
Safety and Stability
Use only when welded per minimum specifications (1/4" fillet weld around contact surface, 1/8" penetration) and attach to structure of equal or greater strength. Regularly inspect welds and hook integrity for deformation, corrosion, or wear.
Key Benefits
- High capacity: 6,670 lb rated working load for heavy-duty securement
- Durable construction: 5/8-inch steel for long service life
- Low-profile design: mounts flat for secure, space-efficient installation
- Simple installation: designed for straightforward weld-on attachment
- Portable specification: compact weight (0.5 lb) simplifies stocking and replacement
Frequently Asked Questions
What welding specifications are required?
Minimum welding requirements are a 1/4" fillet weld around the entire contact surface with 1/8" penetration.
Can the hook be used on any trailer structure?
The hook must be attached to a securing point of equal or greater strength than the hook’s rated working load limit; verify substrate strength before welding.
Ordering and Shipping
To order Kinedyne Weld-On Standard "J" Hooks or to discuss quantity, lead times, and shipping, contact Material Handling Canada. Visit materialhandlingcanada.com or reach out to our sales team for procurement and delivery details.
