Description
x| Model | Length (FT) | Connected Width (IN)* | Half Width (IN)* | Capacity: Connected/Half (LBS) | Total Weight (LBS) | Working Height Range (IN) |
| 1036AL | 10 | 36 | 18 | 5000/2500 | 135 | 20-30 |
*Subtract 2" for usable width when connected, 1" when separated.
Maximum load pressure of 200 pounds per square inch (psi).
Ramp must be pinned while in use.
Not to be used with pallet jacks or forklifts. Not sold as dock boards.
Features:
. 1" safety curb height.

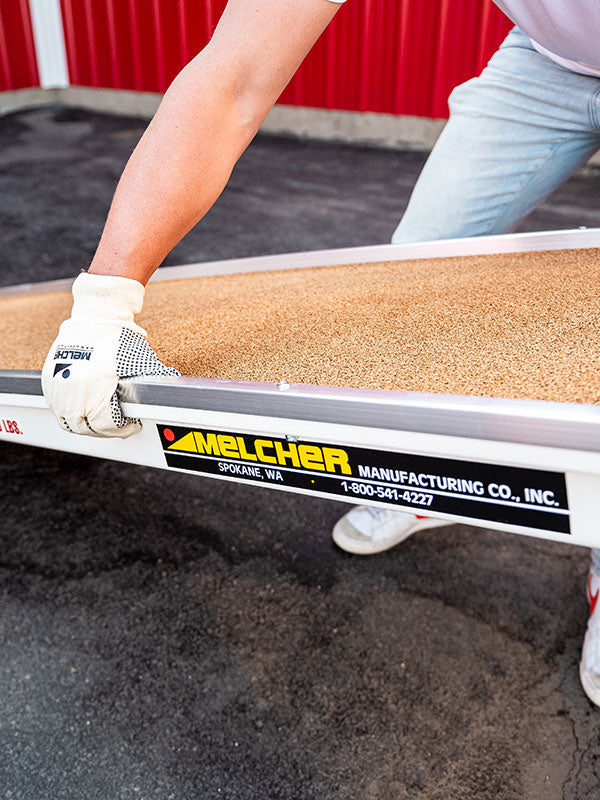

. Non-skid walking surface provides safe, secure footing in wet and dry weather.
. Securing pin with in-ramp storage.
. Optional securing chains can be added for an additional cost.
. Easy roll transitions on/off ramp.
Specifications
xMELCHER MANUFACTURING 1036AL HEAVY DUTY 2 IN 1 AUTOLOADER RAMP
The MELCHER MANUFACTURING 1036AL is a heavy-duty 2-in-1 autoloader ramp designed for safe pedestrian and light-material transitions. Constructed with a non-skid walking surface, 1" safety curb, and in-ramp securing pin storage, the ramp provides reliable footing and simple roll transition on and off the ramp. Not to be used with pallet jacks or forklifts; ramp must be pinned while in use. Subtract 2" for usable width when connected, 1" when separated. Maximum load pressure 200 psi.
Technical Specifications
- Model: 1036AL
- Length: 10 ft
- Connected Width: 36 in (subtract 2" usable width when connected)
- Half Width: 18 in (subtract 1" usable width when separated)
- Capacity: 5000 lbs connected / 2500 lbs half
- Total Weight: 135 lbs
- Working Height Range: 20-30 in
- Maximum load pressure: 200 psi
- Operational notes: Ramp must be pinned while in use; not to be used with pallet jacks or forklifts; not sold as dock boards
Common Applications
- Warehouse loading and unloading areas
- Distribution centers for pallet transfers and order staging
- Industrial facilities requiring safe pedestrian/material transitions
- Facility maintenance and temporary loading platforms
Safety and Stability
Designed for pedestrian and light-material loads, the ramp features a non-skid surface and 1" safety curb. Secure with the included pin and optional chains for improved stability. Observe the maximum load pressure and do not use with forklifts or pallet jacks.
Key Benefits
- High capacity: 5000 lbs when connected, 2500 lbs per half for flexible loading
- Durable construction for repeated industrial use
- Mobile and versatile 2-in-1 design for connected or separated operation
- Enhanced safety: non-skid surface and 1" safety curb
- Efficient transitions with easy roll on/off geometry
Frequently Asked Questions
Can this ramp be used with forklifts?
No. The 1036AL is not to be used with pallet jacks or forklifts and is not sold as a dock board.
What is the usable width when connected or separated?
Subtract 2" from the connected width for usable width; subtract 1" when separated.
Ordering and Shipping
To buy or order the MELCHER MANUFACTURING 1036AL, contact Material Handling Canada for pricing, lead times, and shipping options. Visit materialhandlingcanada.com or contact our sales team to supply this best-selling, top-of-the-line ramp from Melcher Manufacturing.
