Description
x| Model | Length (FT) | Width (IN)* | Capacity (LBS) | Weight (LBS) | Working Height Range (IN) |
| 1236 | 12 | 36 | 3000 | 150 | 26-36 |
*Subtract 2" for usable width.
Maximum load pressure of 200 pounds per square inch (psi).
Ramp must be pinned while in use.
Not to be used with pallet jacks or forklifts. Not sold as dock boards.
Features:
. 1" safety curb height.
. Non-skid walking surface provides safe, secure footing in wet and dry weather.
. Securing pin with in-ramp storage.
. Optional securing chains can be added for an additional cost.
. Optional easy lift straps.
. Easy roll transitions on/off ramp.
Specifications

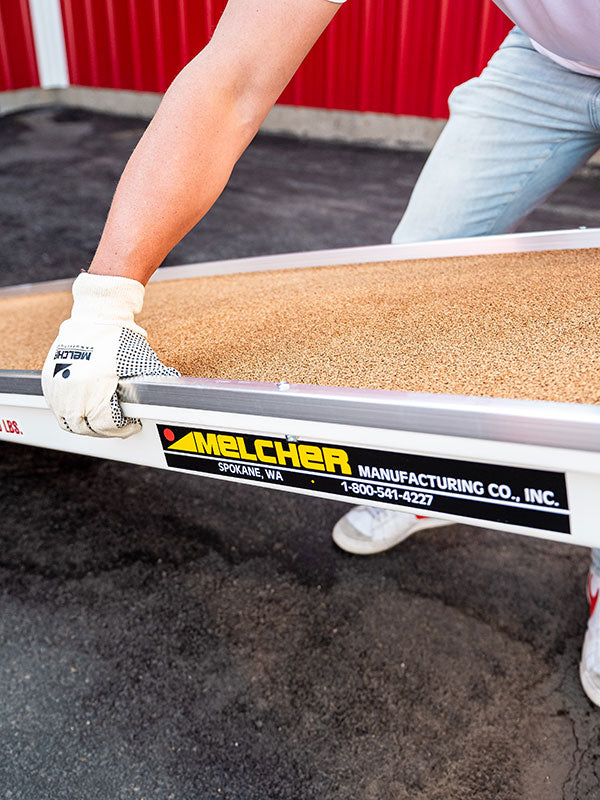

xMELCHER MANUFACTURING 1236 MEDIUM DUTY SINGLE RAMP
The MELCHER MANUFACTURING 1236 Medium Duty Single Ramp is a durable, medium-capacity loading ramp designed for safe personnel and cart access between dock and ground levels. Manufactured by Melcher Manufacturing with a non-skid walking surface, 1" safety curb and in-ramp securing pin, the ramp is intended for light material handling tasks where a portable, pinned ramp is required. Subtract 2" for usable width. Maximum load pressure 200 psi. Ramp must be pinned while in use. Not to be used with pallet jacks or forklifts. Not sold as dock boards.
Technical Specifications
- Model: 1236
- Length (FT): 12
- Width (IN)*: 36
- Capacity (LBS): 3000
- Weight (LBS): 150
- Working Height Range (IN): 26-36
Common Applications
- Warehouse loading and unloading
- Distribution centers for parcel and pallet staging (not for forklifts or pallet jacks)
- Industrial facilities for access between levels
- Facility maintenance and temporary access tasks
- Mobile service and field operations requiring portable ramps
Safety and Stability
The ramp features a 1" safety curb, non-skid walking surface and an in-ramp securing pin for safe placement. It must be pinned during use and is rated with a maximum load pressure of 200 psi. Optional securing chains and easy lift straps are available.
Key Benefits
- High functional capacity: 3,000 lb rated capacity for medium-duty loads
- Durable construction with non-skid surface for reliable footing in wet or dry conditions
- Portable and relatively lightweight at 150 lb for easier handling and deployment
- Safety features including 1" curb and securing pin reduce trip and displacement risks
- Optional accessories (chains, straps) enhance security and usability
Frequently Asked Questions
Is this ramp suitable for forklifts or pallet jacks?
No. The ramp is not to be used with pallet jacks or forklifts and is not sold as a dock board.
How much usable width is available?
Subtract 2" from the listed width for usable width; the listed width is 36" so usable width is 34".
Ordering and Shipping
To order or request a quote for the MELCHER MANUFACTURING 1236 Medium Duty Single Ramp, contact Material Handling Canada via materialhandlingcanada.com. Our team can provide pricing, lead times, accessory options and assist with shipping arrangements.
