Description
x| Model | Length (FT) | Connected Width (IN)* | Half Width (IN)* | Capacity: Connected/Half (LBS) | Total Weight (LBS) | Working Height Range (IN) |
| 1336AL | 13 | 36 | 18 | 5000/2500 | 165 | 28-40 |
*Subtract 2" for usable width when connected, 1" when separated.
Maximum load pressure of 200 pounds per square inch (psi).
Ramp must be pinned while in use.
Not to be used with pallet jacks or forklifts. Not sold as dock boards.
Features:
. 1" safety curb height.
. Non-skid walking surface provides safe, secure footing in wet and dry weather.
. Securing pin with in-ramp storage.
. Optional securing chains can be added for an additional cost.
. Easy roll transitions on/off ramp.
Specifications

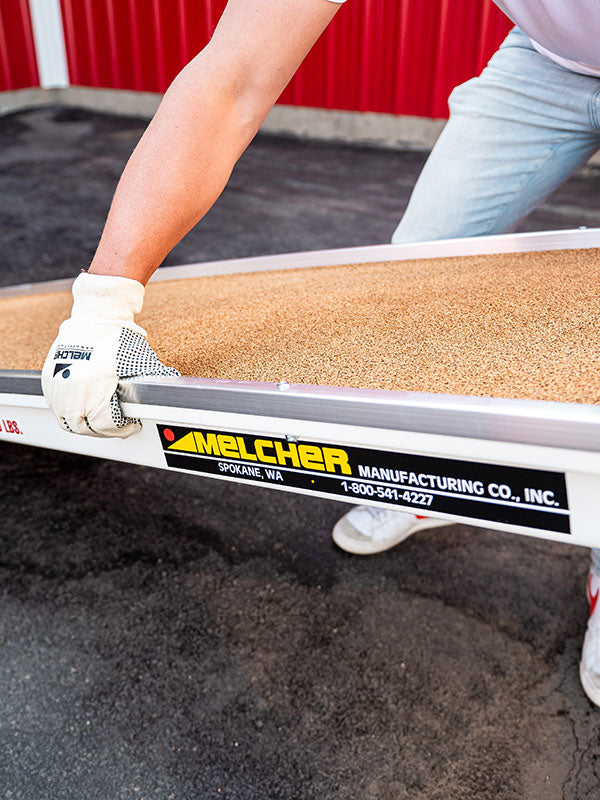

xMELCHER MANUFACTURING 1336AL HEAVY DUTY 2 IN 1 AUTOLOADER RAMP
The MELCHER MANUFACTURING 1336AL Heavy Duty 2 in 1 Autoloader Ramp from Melcher Manufacturing is a dual-mode loading ramp designed for portable, heavy-duty material handling tasks. Constructed for durability with a non-skid walking surface and 1" safety curb, the ramp offers flexible connected or half-width configurations for a range of loading scenarios. Maximum load pressure is 200 psi. Ramp must be pinned during use and is not for use with pallet jacks or forklifts; not sold as dock boards.
Technical Specifications
- Model: 1336AL
- Length: 13 ft
- Connected Width: 36 in
- Half Width: 18 in
- Capacity (Connected/Half): 5000 / 2500 lbs
- Total Weight: 165 lbs
- Working Height Range: 28-40 in
Common Applications
- Warehouse loading and unloading
- Distribution center staging and transfers
- Industrial facilities requiring portable ramps
- Facility maintenance and equipment access
Safety and Stability
Use only within specified capacity and load pressure limits (200 psi). Ramp must be pinned while in use and may require optional securing chains for added restraint. Not intended for pallet jacks or forklifts; provide appropriate transition and securement when connecting halves-subtract 2" usable width when connected, 1" when separated.
Key Benefits
- High capacity: 5000 lbs connected, 2500 lbs per half for heavy loads
- Durable construction with non-skid surface for safe footing
- Flexible configuration: full-width or half-width operation for mobility and space efficiency
- Integrated safety curb and in-ramp securing pin storage
- Lightweight for its class at 165 lbs for easier handling and deployment
Frequently Asked Questions
Can the ramp be used with pallet jacks or forklifts?
No. The 1336AL is not rated for use with pallet jacks or forklifts and is not sold as a dock board.
How should the ramp be secured during use?
The ramp must be pinned while in use; optional securing chains are available for purchase to enhance restraint. Ensure working height and connection are verified before loading.
Ordering and Shipping
To purchase or request a quote for the MELCHER MANUFACTURING 1336AL, contact Material Handling Canada for pricing, lead times, and shipping options through materialhandlingcanada.com.
