Description
x| Model | Length (FT) | Connected Width (IN)* | Half Width (IN)* | Capacity: Connected/Half (LBS) | Total Weight (LBS) | Working Height Range (IN) |
| 1436AL | 14 | 36 | 18 | 5000/2500 | 175 | 30-44 |
*Subtract 2" for usable width when connected, 1" when separated.
Maximum load pressure of 200 pounds per square inch (psi).
Ramp must be pinned while in use.
Not to be used with pallet jacks or forklifts. Not sold as dock boards.
Features:
. 1" safety curb height.
. Non-skid walking surface provides safe, secure footing in wet and dry weather.
. Securing pin with in-ramp storage.
. Optional securing chains can be added for an additional cost.
. Easy roll transitions on/off ramp.
Specifications

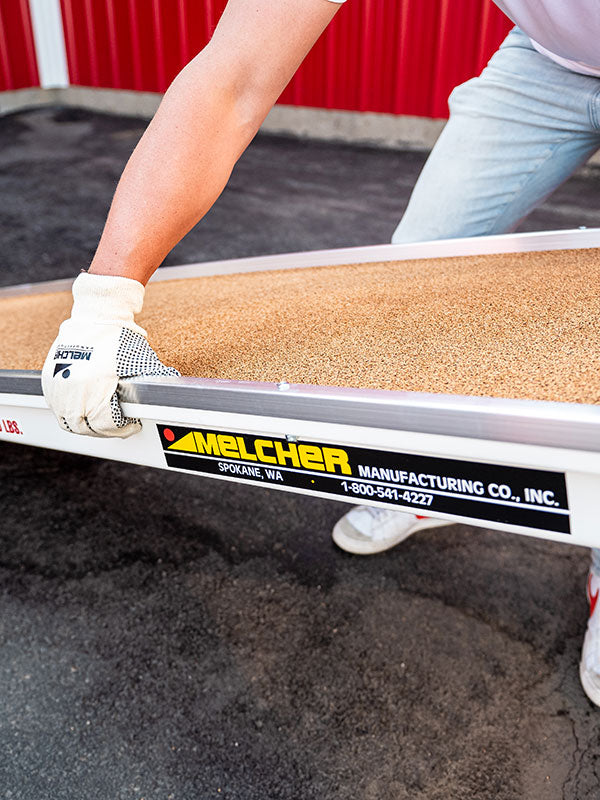

xMELCHER MANUFACTURING 1436AL HEAVY DUTY 2 IN 1 AUTOLOADER RAMP
The MELCHER MANUFACTURING 1436AL is a heavy-duty 2-in-1 autoloader ramp designed for portable loading tasks. Constructed for industrial use, it offers a non-skid walking surface, 1" safety curb, in-ramp securing pin storage and optional securing chains. The ramp must be pinned while in use, is not to be used with pallet jacks or forklifts, and is not sold as a dock board. Maximum load pressure is 200 psi. Subtract 2" for usable width when connected and 1" when separated.
Technical Specifications
- Model: 1436AL
- Length (ft): 14
- Connected Width (in)*: 36
- Half Width (in)*: 18
- Capacity: Connected/Half (lbs): 5000 / 2500
- Total Weight (lbs): 175
- Working Height Range (in): 30 - 44
Common Applications
- Warehouse loading and unloading
- Distribution center staging
- Industrial facility material transfers
- Maintenance bays and temporary loading platforms
Safety and Stability
The ramp features a non-skid walking surface and 1" safety curb for secure footing and edge protection. It must be pinned during use and complies with a maximum load pressure of 200 psi. Do not use with pallet jacks or forklifts.
Key Benefits
- High capacity: 5000 lb connected / 2500 lb half configuration for flexible load handling
- Durable construction for repeated industrial use
- Portable design with easy roll transitions for mobility
- Enhanced safety features: non-skid surface, safety curb, and in-ramp securing pin storage
- Optional securing chains available to improve attachment stability
Frequently Asked Questions
Can the ramp be used with forklifts or pallet jacks?
No. This ramp is not to be used with pallet jacks or forklifts.
What is the usable width when connected or separated?
Subtract 2" for usable width when connected and 1" when separated from the nominal widths listed.
Ordering and Shipping
To purchase or request a quote, contact Material Handling Canada for supply and shipping details. Visit materialhandlingcanada.com or contact our sales team through the website to order the MELCHER MANUFACTURING 1436AL and arrange delivery.
