Description
x| Model | Length (FT) | Connected Width (IN)* | Half Width (IN)* | Capacity: Connected/Half (LBS) | Total Weight (LBS) | Working Height Range (IN) |
| 1636AL | 16 | 36 | 18 | 5000/2500 | 220 | 34-50 |
*Subtract 2" for usable width when connected, 1" when separated.
Maximum load pressure of 200 pounds per square inch (psi).
Ramp must be pinned while in use.
Not to be used with pallet jacks or forklifts. Not sold as dock boards.
Features:
. 1" safety curb height.
. Non-skid walking surface provides safe, secure footing in wet and dry weather.
. Securing pin with in-ramp storage.
. Optional securing chains can be added for an additional cost.
. Easy roll transitions on/off ramp.
Specifications

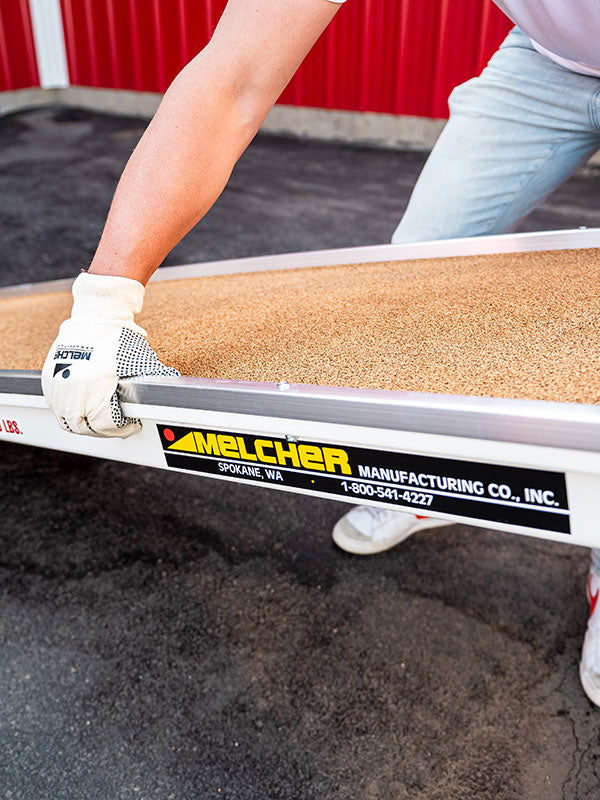

xMELCHER MANUFACTURING 1636AL HEAVY DUTY 2 IN 1 AUTOLOADER RAMP
The MELCHER MANUFACTURING 1636AL is a heavy-duty 2-in-1 autoloader ramp designed for safe, portable loading of palletized goods. Constructed for durability with a non-skid walking surface and 1" safety curb, the ramp offers secure footing in wet or dry conditions and features an in-ramp securing pin storage and optional securing chains. Intended for pedestrian and pallet platform loading-do not use with pallet jacks or forklifts; ramp must be pinned while in use.
Technical Specifications
- Model: 1636AL
- Length: 16 ft
- Connected Width: 36 in* (subtract 2" for usable width when connected)
- Half Width: 18 in* (subtract 1" for usable width when separated)
- Capacity (Connected/Half): 5000 / 2500 lbs
- Total Weight: 220 lbs
- Working Height Range: 34-50 in
- Maximum load pressure: 200 psi
Common Applications
- Warehouse loading and unloading of palletized goods
- Distribution center order staging and transfer
- Industrial facilities requiring portable loading platforms
- Facility maintenance and cross-docking operations
Safety and Stability
The ramp includes a 1" safety curb and non-skid surface for secure footing. It must be pinned during use and is rated to a maximum load pressure of 200 psi. Not for use with pallet jacks or forklifts; not sold as dock boards. Optional securing chains are available for additional stability.
Key Benefits
- High capacity: 5000 lbs connected, 2500 lbs half-supports heavy pallet loads
- Durable construction with non-skid surface for long service life
- Portable design with easy roll transitions for quick deployment
- Enhanced safety: 1" safety curb, securing pin with in-ramp storage, optional chains
- Adjustable working height range for flexible loading configurations
Frequently Asked Questions
Can this ramp be used with forklifts?
No. The 1636AL is not to be used with pallet jacks or forklifts and is not sold as a dock board.
What are the width adjustments when connecting halves?
Usable connected width is 2" less than nominal (36" nominal †’ subtract 2" when connected). Separated half widths are 1" less than nominal.
Ordering and Shipping
To purchase or request shipping and lead-time details for the MELCHER MANUFACTURING 1636AL, contact Material Handling Canada through materialhandlingcanada.com to obtain pricing, availability, and freight options.
