Description
x| Model | Length (FT) | Width (IN)* | Capacity (LBS) | Weight (LBS) | Working Height Range (IN) |
| 430 | 4 | 36 | 1500 | 42 | 6-10 |
*Subtract 2" for usable width.
Maximum load pressure of 200 pounds per square inch (psi).
Ramp must be pinned while in use.
Not to be used with pallet jacks or forklifts. Not sold as dock boards.
Features:
. 1" safety curb height.
. Non-skid walking surface provides safe, secure footing in wet and dry weather.
. Securing pin with in-ramp storage.
. Optional securing chains can be added for an additional cost.
. Optional easy lift straps.
. Easy roll transitions on/off ramp.
Specifications
xMELCHER MANUFACTURING 430 MEDIUM DUTY SINGLE RAMP

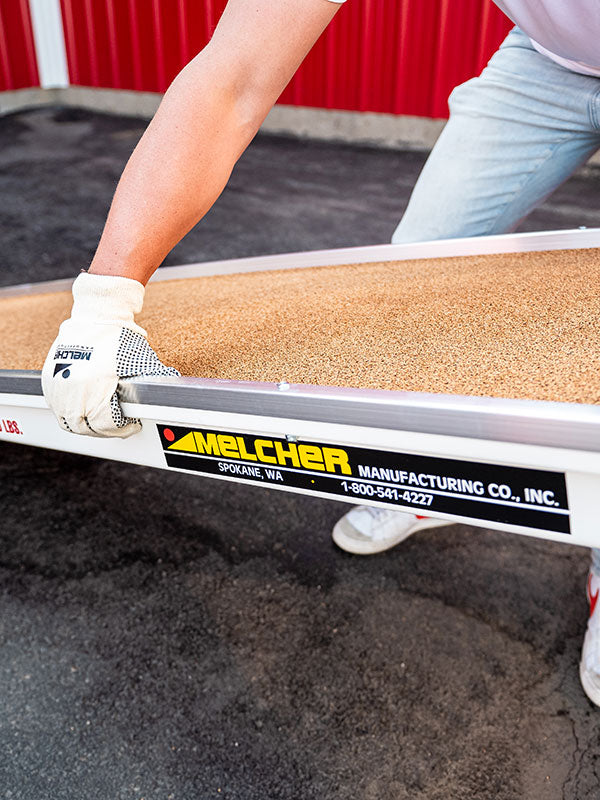

The Melcher Manufacturing 430 medium duty single ramp provides a compact, portable loading solution for light industrial transfer tasks. Designed for pedestrian and hand-cart use, the ramp features a non-skid walking surface, 1" safety curb, in-ramp securing pin storage, and optional securing chains or lift straps. Note: ramp must be pinned while in use, has a maximum load pressure of 200 psi, and is not to be used with pallet jacks or forklifts; not sold as dock boards.
Technical Specifications
- Model: 430
- Length: 4 ft
- Width: 36 in (subtract 2" for usable width)
- Capacity: 1,500 lbs
- Weight: 42 lbs
- Working Height Range: 6-10 in
Common Applications
- Warehouse loading and unloading of carts and hand trucks
- Distribution center order staging and transfers
- Industrial facility access for maintenance crews and portable equipment
- Temporary loading platforms for facility refurbishment or short-term projects
Safety and Stability
The ramp includes a 1" safety curb and non-skid surface for secure footing. It must be pinned while in use and meets a maximum load pressure of 200 psi. It is intended for pedestrian and hand-cart traffic only and must not be used with pallet jacks or forklifts.
Key Benefits
- 1,500 lb capacity for reliable light-duty loading
- Durable non-skid surface for wet and dry conditions
- Lightweight construction (42 lbs) for portability and easy positioning
- In-ramp securing pin storage and optional chains/straps for anchoring
- Easy roll transitions on/off ramp to reduce setup time
Frequently Asked Questions
Is this ramp suitable for pallet jacks or forklifts?
No. The ramp is not to be used with pallet jacks or forklifts and is not sold as a dock board.
What installation or securing is required during use?
The ramp must be pinned while in use; optional securing chains can be added for additional anchoring.
Ordering and Shipping
To purchase or request a quote, contact Material Handling Canada. Visit materialhandlingcanada.com or contact our sales team for ordering, pricing, and shipping details to ensure the ramp meets your operational requirements.
