Description
x| Model | Length (FT) | Connected Width (IN)* | Half Width (IN)* | Capacity: Connected/Half (LBS) | Total Weight (LBS) | Working Height Range (IN) |
| 636AL | 6 | 36 | 18 | 4000/2000 | 75 | 12-18 |
*Subtract 2" for usable width when connected, 1" when separated.
Maximum load pressure of 200 pounds per square inch (psi).
Ramp must be pinned while in use.
Not to be used with pallet jacks or forklifts. Not sold as dock boards.
Features:
. 1" safety curb height.
. Non-skid walking surface provides safe, secure footing in wet and dry weather.
. Securing pin with in-ramp storage.
. Optional securing chains can be added for an additional cost.
. Easy roll transitions on/off ramp.
Specifications

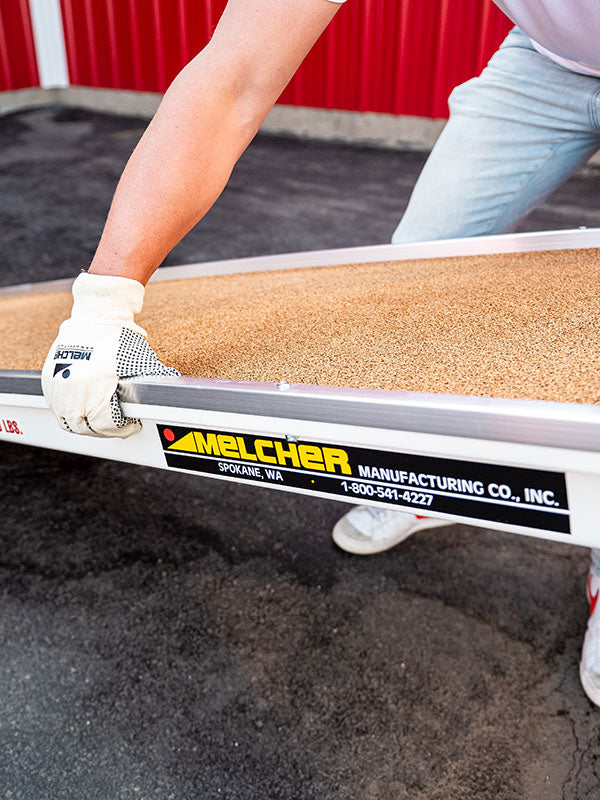

xMELCHER MANUFACTURING 636AL HEAVY DUTY 2 IN 1 AUTOLOADER RAMP
The MELCHER MANUFACTURING 636AL is a heavy-duty 2-in-1 autoloader ramp designed for safe pedestrian and light equipment transitions. Constructed with a non-skid walking surface and 1" safety curb height, the ramp offers secure footing in wet and dry conditions. The unit features an in-ramp securing pin with storage and optional securing chains. Maximum surface load pressure is 200 psi. Ramp must be pinned while in use. Not to be used with pallet jacks or forklifts and not sold as dock boards.
Technical Specifications
- Model: 636AL
- Length: 6 ft
- Connected Width: 36 in (subtract 2 in for usable width when connected)
- Half Width: 18 in (subtract 1 in for usable width when separated)
- Capacity (Connected/Half): 4000 / 2000 lbs
- Total Weight: 75 lbs
- Working Height Range: 12-18 in
- Maximum load pressure: 200 psi
Common Applications
- Warehouse loading and unloading tasks
- Distribution center receiving and staging
- Industrial material handling stations
- Facility maintenance and access points
- Portable loading platforms for light-duty operations
Safety and Stability
The ramp provides a 1" safety curb and a non-skid surface to reduce slip risk. It must be pinned during use and follows a maximum surface load pressure of 200 psi. The product is not rated for pallet jacks or forklifts; use only for pedestrian and approved light equipment applications.
Key Benefits
- High capacity: 4000 lbs connected, 2000 lbs half-supports robust loads
- Durable construction for frequent industrial use
- Portable and easy roll transitions for mobility
- Efficient handling: quick pinning and in-ramp pin storage
- Improved worker safety from non-skid surface and safety curb
Frequently Asked Questions
Can the ramp be used with pallet jacks or forklifts?
No. The 636AL is not to be used with pallet jacks or forklifts and is not sold as a dock board.
What installation or securing is required during use?
The ramp must be pinned while in use; an in-ramp storage for the securing pin is provided. Optional securing chains are available at additional cost.
Ordering and Shipping
To order or request shipping and availability, contact Material Handling Canada. Visit materialhandlingcanada.com or contact our sales team to purchase, obtain lead times, and arrange delivery for the MELCHER MANUFACTURING 636AL ramp.
