Description
x| Model | Length (FT) | Width (IN)* | Capacity (LBS) | Weight (LBS) | Working Height Range (IN) |
| 7530 | 7 †’ ½ | 30 | 3000 | 75 | 14-22 |
*Subtract 2" for usable width.
Maximum load pressure of 200 pounds per square inch (psi).
Ramp must be pinned while in use.
Not to be used with pallet jacks or forklifts. Not sold as dock boards.
Features:
. 1" safety curb height.
. Non-skid walking surface provides safe, secure footing in wet and dry weather.
. Securing pin with in-ramp storage.
. Optional securing chains can be added for an additional cost.
. Optional easy lift straps.
. Easy roll transitions on/off ramp.
Specifications

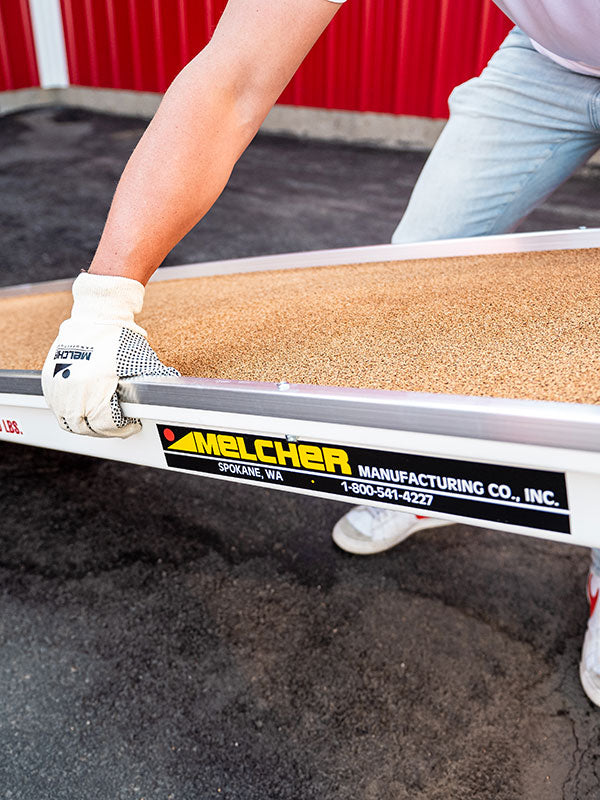

xMELCHER MANUFACTURING 7530 MEDIUM DUTY SINGLE RAMP
The MELCHER MANUFACTURING 7530 medium duty single ramp from Melcher Manufacturing is a best-selling, top-of-the-line solution for portable loading needs. Designed for pedestrian and wheeled cart traffic, the ramp offers a 3,000 lb capacity with non-skid surface, safety curb and in-ramp securing pin for reliable, controlled access. Not for use with pallet jacks or forklifts; ramp must be pinned while in use.
Technical Specifications
- Model: 7530
- Length: 7 ft
- Width: 30 in (subtract 2 in for usable width)
- Capacity: 3,000 lbs
- Weight: 75 lbs
- Working height range: 14-22 in
- Maximum load pressure: 200 psi
- Must be pinned while in use; not to be used with pallet jacks or forklifts; not sold as dock boards
Common Applications
- Warehouse loading and unloading of carts and roll containers
- Distribution center order staging and transfer points
- Industrial facilities requiring temporary level transitions
- Facility maintenance access for equipment and supplies
Safety and Stability
The ramp features a 1 in safety curb, non-skid walking surface for wet or dry conditions, and a securing pin with in-ramp storage. Optional securing chains and easy lift straps are available to enhance stability and handling.
Key Benefits
- High capacity: 3,000 lb rated for robust load handling
- Durable construction with non-skid surface for long service life
- Portable weight (75 lbs) for easier positioning and transport
- Safety features: 1 in curb, securing pin, optional chains and lift straps
- Versatile working height range (14-22 in) for common loading docks and platforms
Frequently Asked Questions
Is this ramp suitable for forklifts or pallet jacks?
No. The MELCHER 7530 is not to be used with pallet jacks or forklifts and is not sold as a dock board.
How do I determine usable width?
The ramp width is 30 in; subtract 2 in to calculate usable width for traffic and equipment.
Ordering and Shipping
To order or request a quote for the MELCHER MANUFACTURING 7530 Medium Duty Single Ramp, contact Material Handling Canada. Visit materialhandlingcanada.com or reach out to our sales team to purchase, arrange shipping, and discuss optional securing chains or easy lift straps.
