Description
x| Model | Length (FT) | Width (IN)* | Capacity (LBS) | Weight (LBS) | Working Height Range (IN) |
| 836 | 8 | 36 | 3000 | 95 | 16-24 |
*Subtract 2" for usable width.
Maximum load pressure of 200 pounds per square inch (psi).
Ramp must be pinned while in use.
Not to be used with pallet jacks or forklifts. Not sold as dock boards.
Features:
. 1" safety curb height.
. Non-skid walking surface provides safe, secure footing in wet and dry weather.
. Securing pin with in-ramp storage.
. Optional securing chains can be added for an additional cost.
. Optional easy lift straps.
. Easy roll transitions on/off ramp.
Specifications

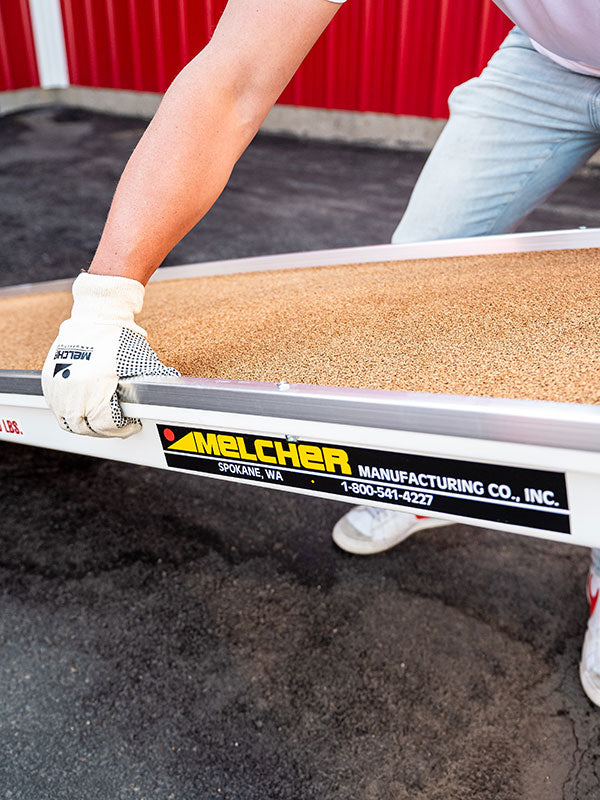

xMELCHER MANUFACTURING 836 MEDIUM DUTY SINGLE RAMP
The MELCHER MANUFACTURING 836 medium duty single ramp is designed for safe, portable loading where a durable walking surface and moderate capacity are required. Constructed with a non-skid surface and 1" safety curb, the ramp includes an in-ramp securing pin and optional chains or lift straps. The ramp must be pinned while in use and is not intended for pallet jacks or forklifts.
Technical Specifications
- Model: 836
- Length: 8 ft
- Width: 36 in (subtract 2 in for usable width)
- Capacity: 3000 lbs (maximum load pressure 200 psi)
- Weight: 95 lbs
- Working height range: 16-24 in
Common Applications
- Warehouse loading and unloading tasks
- Distribution center transfers and staging
- Industrial facilities for material movement
- Facility maintenance and equipment access
Safety and Stability
The ramp features a 1" safety curb and non-skid walking surface for secure footing in wet and dry conditions. It must be pinned during use and is not to be used with pallet jacks or forklifts; optional securing chains are available for additional stability.
Key Benefits
- 3000 lb capacity for reliable load support
- Durable non-skid surface for operator safety
- Lightweight portability at 95 lbs for easier handling
- Optional accessories (chains, lift straps) for enhanced stability and handling
- Easy roll transitions for efficient on/off ramp movement
Frequently Asked Questions
Can this ramp be used with a forklift?
No. The ramp is not to be used with pallet jacks or forklifts.
What is the usable width?
The nominal width is 36 in; subtract 2 in for usable width (usable = 34 in).
Ordering and Shipping
To order or request shipping for the MELCHER MANUFACTURING 836 MEDIUM DUTY SINGLE RAMP, contact Material Handling Canada. Visit materialhandlingcanada.com to request a quote, confirm availability, and arrange delivery.
