Description
xKinedyne's Standard Outward Offset Stake Pocket Winch is dynamic, portable, and versatile. Able to handle a working load limit of 5,500 Lbs. / 2,495 Kgs., this winch will help you reliably tie down your load.

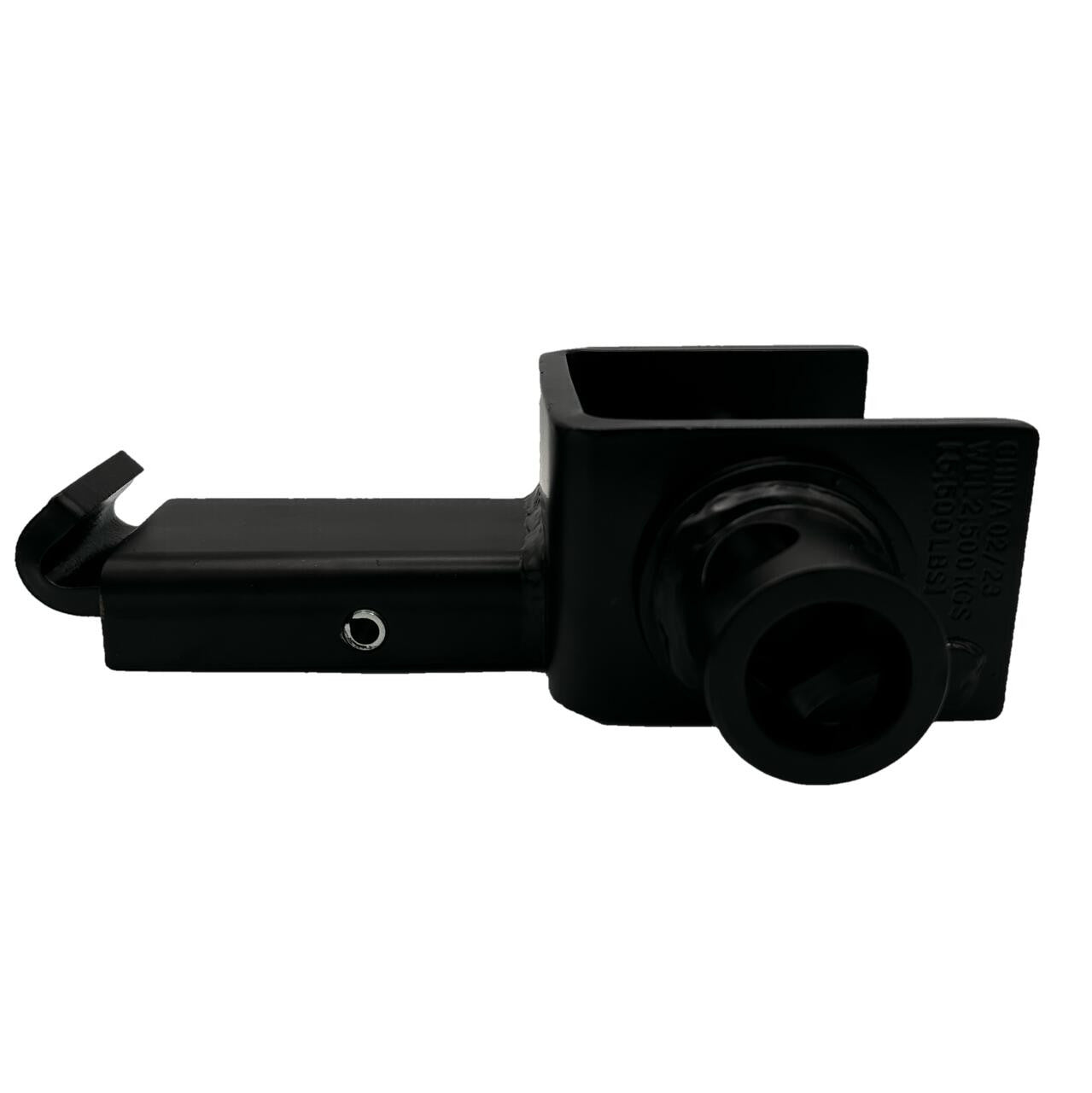

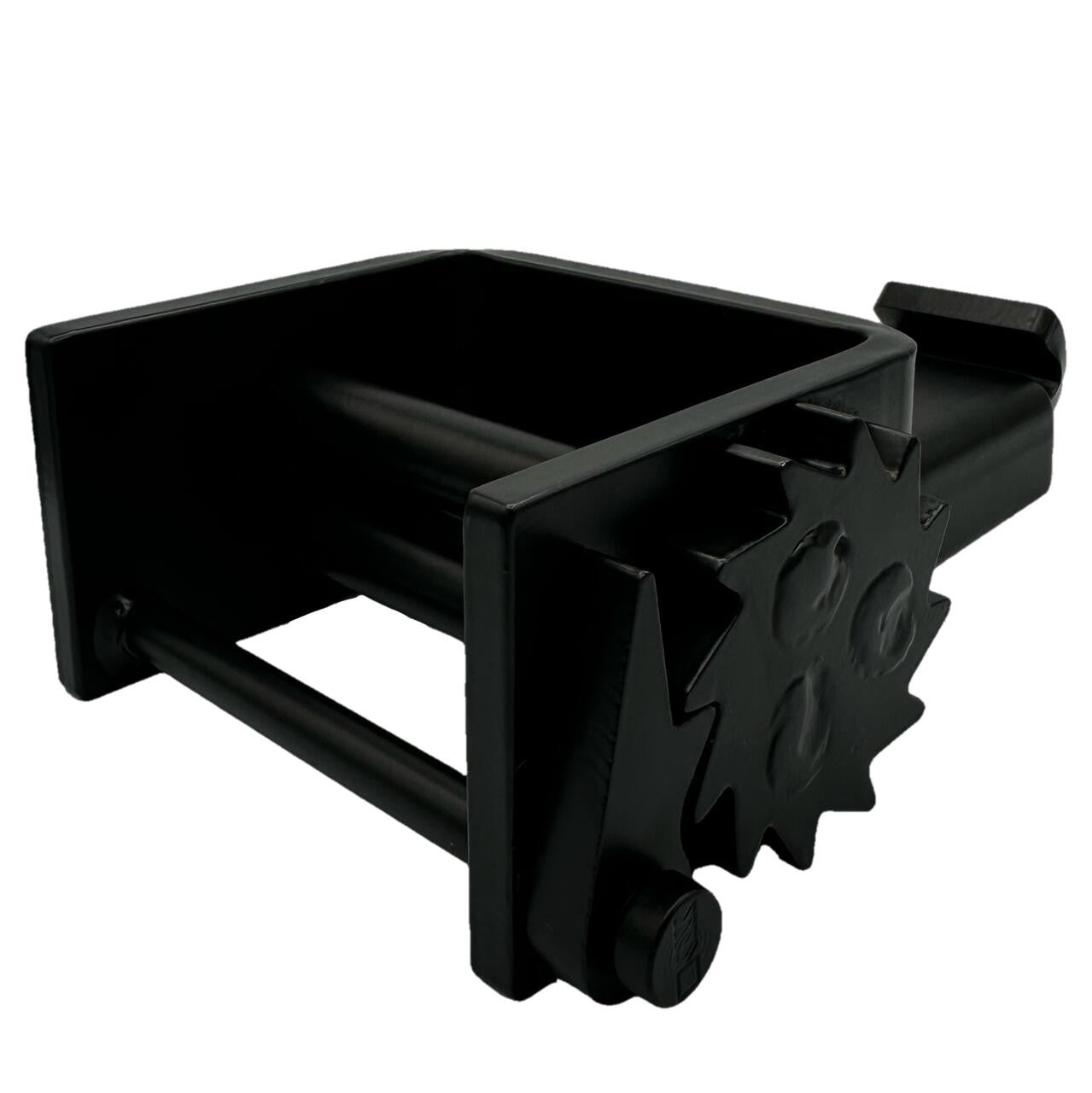

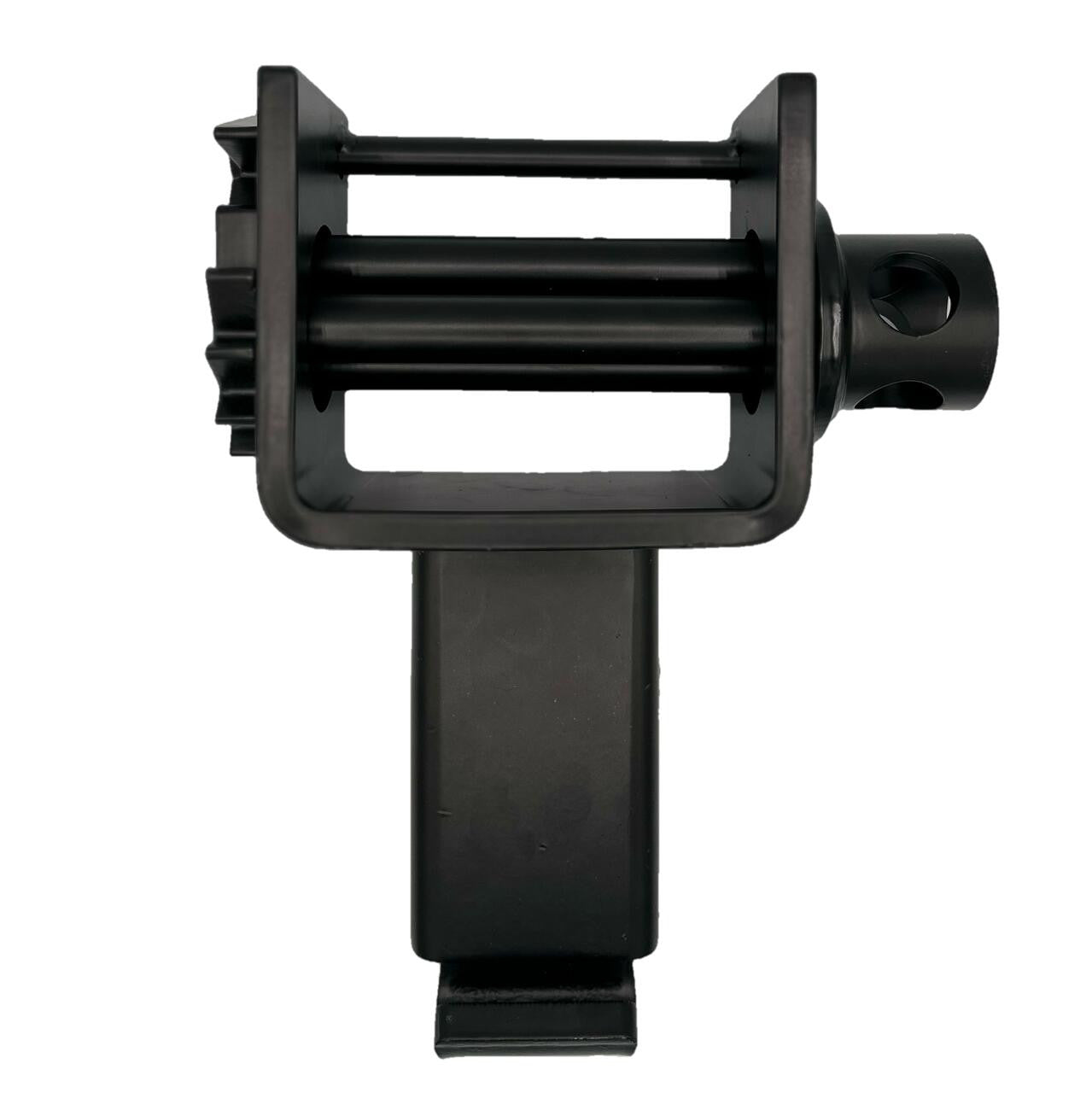

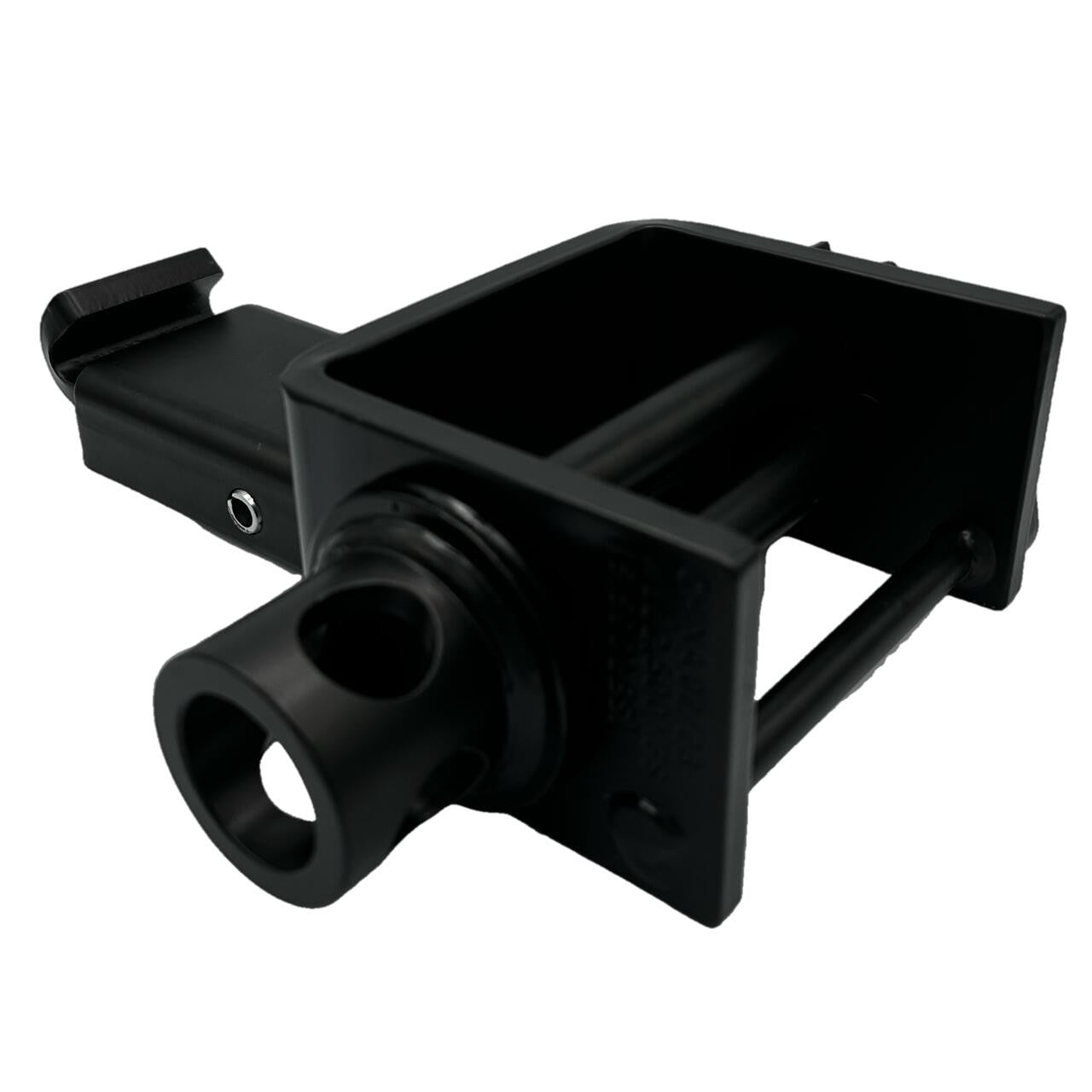

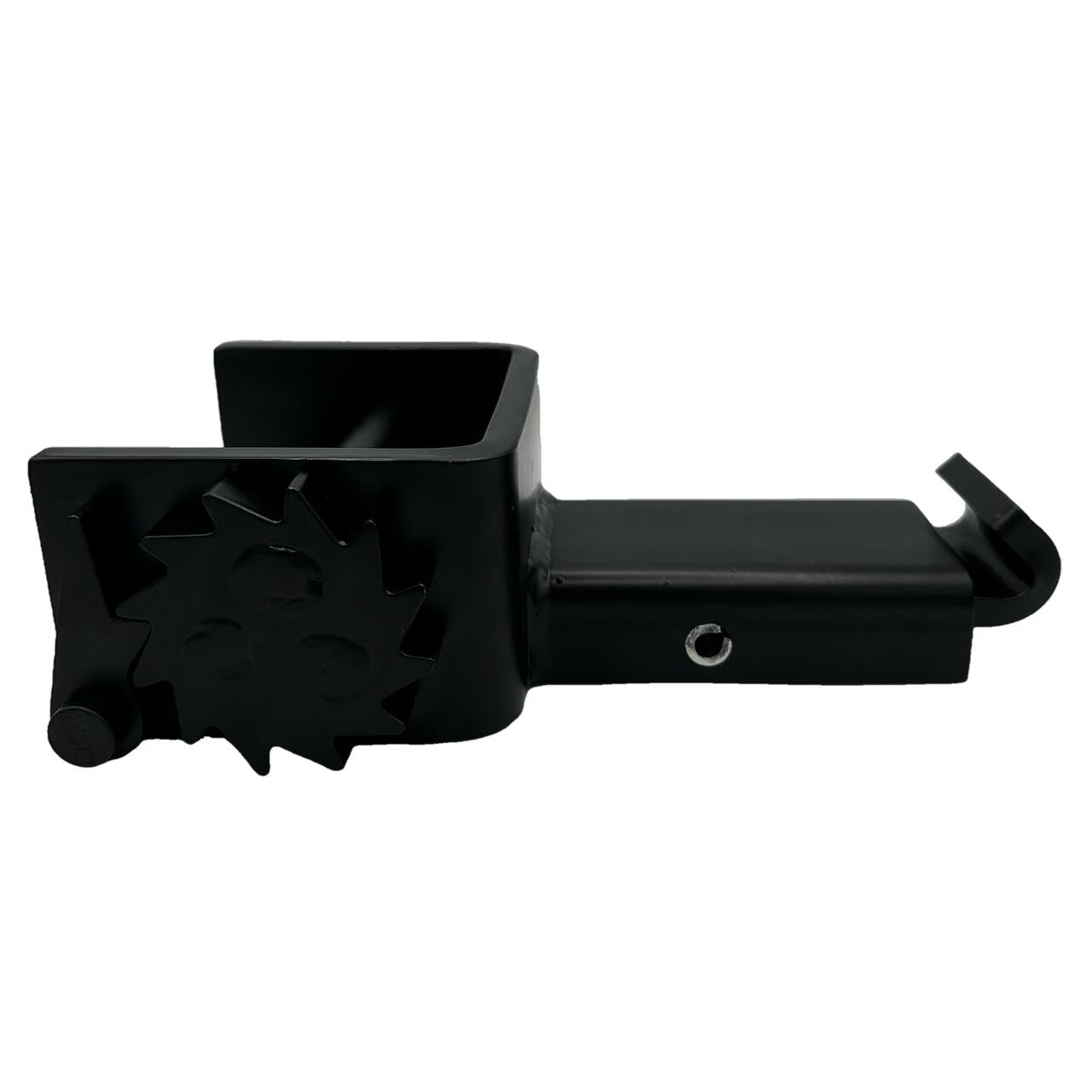

Standard Outward Offset Stake Pocket Winch
With a working load limit of 5,500 Lbs. / 2,495 Kgs., Kinedyne's Standard Outward Offset Stake Pocket Winch is heavy-duty, versatile, and tackles tie-down troubles with ultimate strength. This stake pocket winch outward offset, and can be positioned in any stake pocket (side, front, or back).
Our Standard Outward Offset Stake Pocket Winch is able to be inserted into a stake pocket in no time, ready to tie down cargo on a flatbed. The spring load hook design at the bottom of our stake pocket winch allows even weight distribution, and no need for a securement pin. When the job is done, the winch can be easily and quickly removed. Our stake pocket winch is made from heat-treated steel which creates its strength, and is coated in a black powder coating making it look sleek on the trailer. It also features a 3 bar winch mandrel design to prevent the winch strap from binding.
All winches are designed to meet the requirements of the Department of Transportation, California Highway Patrol, Canadian 905, North American Cargo Securement, and Web Sling & Tie Down Association regulations and standards. To comply with North American Regulations, the working load limit, manufactured date, and country of origin are stamped on the frame. Do not load winches in excess of their working load limit.
Standard Outward Offset Stake Pocket Winch – 80221 Quick Specs:
- Working Load Limit: 5,500 Lbs. / 2,495 Kgs.
- Height: 10.7 Inches
- Width: 3.15 Inches
- Length: 8.43 Inches
- Weight: 10.9 Lbs. / 4.9 Kgs.
Specifications
xStandard Outward Offset Stake Pocket Winch
Kinedyne's Standard Outward Offset Stake Pocket Winch is dynamic, portable, and versatile. Able to handle a working load limit of 5,500 Lbs. / 2,495 Kgs., this winch will help you reliably tie down your load.
With a working load limit of 5,500 Lbs. / 2,495 Kgs., Kinedyne's Standard Outward Offset Stake Pocket Winch is heavy-duty, versatile, and tackles tie-down troubles with ultimate strength. This stake pocket winch outward offset, and can be positioned in any stake pocket (side, front, or back).
Our Standard Outward Offset Stake Pocket Winch is able to be inserted into a stake pocket in no time, ready to tie down cargo on a flatbed. The spring load hook design at the bottom of our stake pocket winch allows even weight distribution, and no need for a securement pin. When the job is done, the winch can be easily and quickly removed. Our stake pocket winch is made from heat-treated steel which creates its strength, and is coated in a black powder coating making it look sleek on the trailer. It also features a 3 bar winch mandrel design to prevent the winch strap from binding.
All winches are designed to meet the requirements of the Department of Transportation, California Highway Patrol, Canadian 905, North American Cargo Securement, and Web Sling & Tie Down Association regulations and standards. To comply with North American Regulations, the working load limit, manufactured date, and country of origin are stamped on the frame. Do not load winches in excess of their working load limit.
Technical Specifications
- Working Load Limit: 5,500 Lbs. / 2,495 Kgs.
- Height: 10.7 Inches
- Width: 3.15 Inches
- Length: 8.43 Inches
- Weight: 10.9 Lbs. / 4.9 Kgs.
Common Applications
- Flatbed cargo securement on transport trailers
- Warehouse loading and distribution operations
- Industrial and facility fleet tie-downs
- Maintenance crews requiring portable tie-down solutions
Safety and Stability
The winch is manufactured from heat-treated steel with a powder coat finish and includes a spring load hook for even weight distribution. All units are stamped with working load limit, manufacture date, and country of origin and are designed to meet DOT, CHP, Canadian 905, North American Cargo Securement, and WS&TD Association standards. Do not exceed the rated working load limit.
Key Benefits
- High capacity: 5,500 lb working load limit for demanding loads
- Durable construction: heat-treated steel and protective powder coat
- Portable and quick to install and remove from stake pockets
- Efficient strap operation with 3-bar mandrel to reduce binding
- Improved safety through spring load hook and regulatory compliance
Frequently Asked Questions
What is the working load limit?
The working load limit is 5,500 Lbs. / 2,495 Kgs.
Can the winch be used in any stake pocket position?
Yes. The outward offset design allows positioning in side, front, or back stake pockets for flexible tie-down configurations.
